Black And Amber Finish HSS Drill Bit For Metal ，Fully Ground Hss Cobalt Drill Bits

Brand Name:	XRTOOLS
Model Number:	8.0MM
MOQ:	500PCS
Price:	0.05-2.7$/PCS
Delivery Time:	30-45days
Payment Terms:	T/T, L/C, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

JIANG SU

Certification:

ISO9000

Name:

Hss Twist Drill Bit

Material:

HSS Cobalt

Type:

Twist Drill Bit

Process:

Fully Ground

Size:

9.5mm-14.5mm

Shank:

Straight Shank

Hardness:

HRC65-67

Surface:

Black & Gold

Point Angle:

118 Degree Regular Point

Use:

Timber / Metal

Packaging Details:

Plastic box,Double Blister card

Supply Ability:

400,0000Pcs Per Mouth

Highlight:

metal hss drill bit

metal hss cobalt drill bits

9.5mm hss drill bit

Product Description

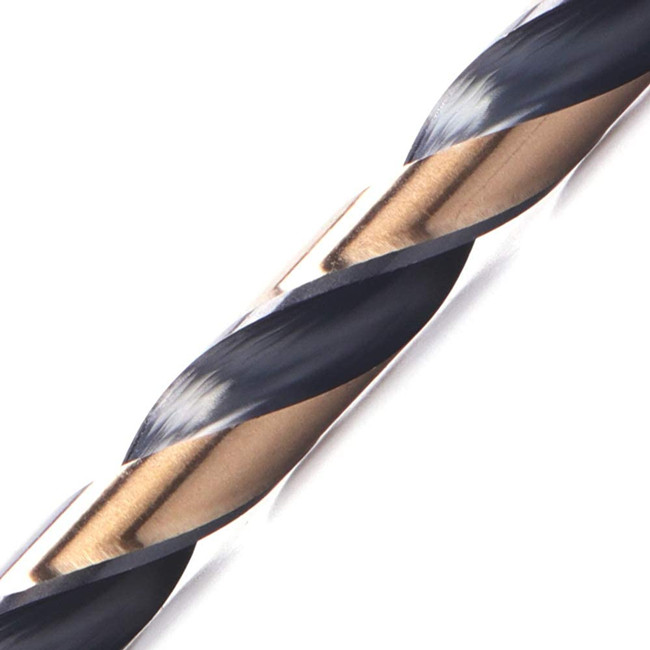

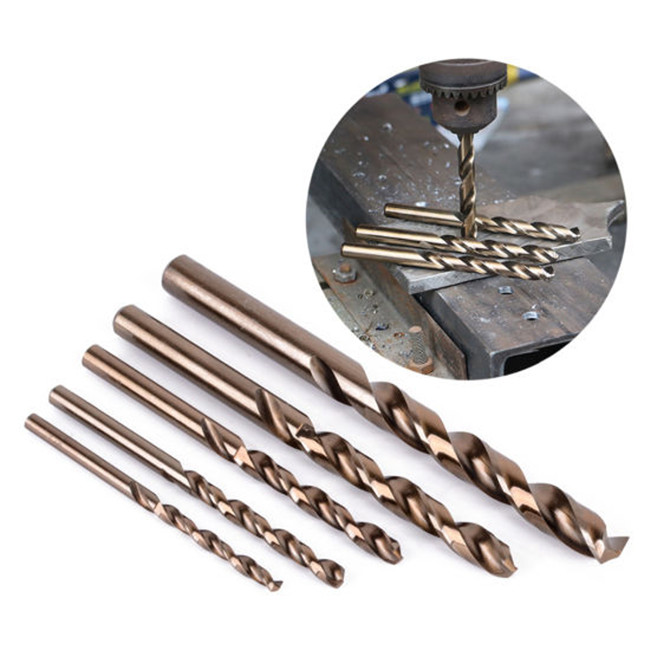

Black And Amber Finish HSS Drill Bit For Metal ,Fully Ground Hss Cobalt Drill Bits

Description

1 Name: HSS Drill Bit for Metal
2 Material: HSS (HSS Cobalt is Available)
3 Process: Fully Ground (Rolled & Polshed, Rolled, Milled are Available)
4 Standard: DIN338
5 Point Type: Turbo Max Point (118 Degree Regular Point, 135 Degree Split Point, Pilot Point are Available)
6 Shank Type: Tri-Flats Shank (Straight Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Hex

Shank,Taper Shank are Available)
7 Surface Finish: Black & Gold (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)

DIN338 metal drill bit of Specification

Diameter (mm)	Flute Length (mm)	Overall		Flute Length (mm)	Overall Length (mm)
Diameter (mm)	Flute Length (mm)	Length (mm)	Diameter (mm)	Flute Length (mm)	Overall Length (mm)
9.5	81	125	15.0	114	169
10.0	87	133	15.5	120	178
10.5	87	133	16.0	120	178
12.0	101	151	17.5	130	191
12.5	101	151	18.0	130	191
13.0	101	151	18.5	135	193
13.5	108	160	19.0	135	198
14.0	103	160	19.5	140	205
14.5	114	169	20.0	140	205

Features:

1.Made from premium high speed steel with black and gold finish for added corrosion resistance.

2.Revolutionary tip design stays sharper longer and drills up to 10x faster than other leading drill bits.

3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.

4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.

5.Self-centering TURBOMAX tip for clean entry and fast starts; stays sharp longer

Power Tool Accessory DIN338 Jobber Length Fully Ground Twist Drill Bit For Metal Stainless Steel


*The cobalt drill bits are more expensive than other drill bits,but if you regularly drill it through metal, they are a good

investment since they tend to last longer.*No center pouch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly with lesspresure.*Precision ground point,flutes,body,clearance and drill diameter for ultimate in accuracy and performance.

Fully Grounded Flute.

Ground body clearance. Reducing friction against the hole wall for smooth drilling.

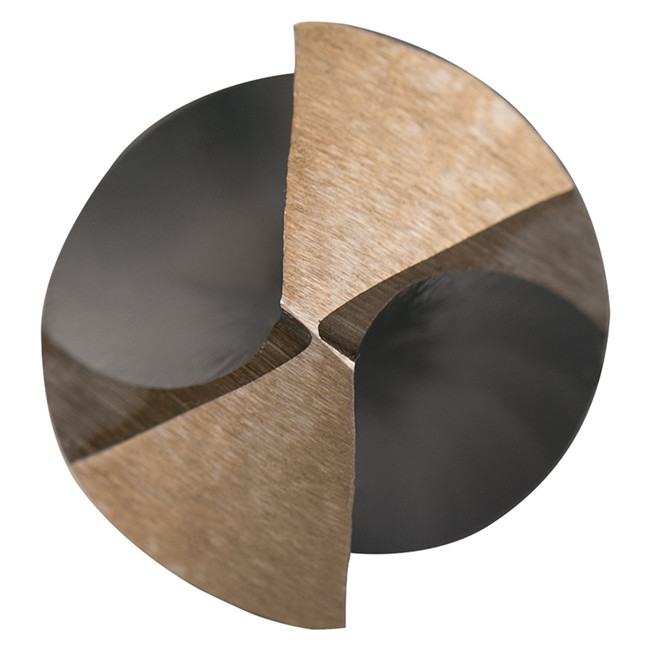

135° Split Point Angle.


Split point with thin starting web for self-centering and reducing thrust penetrates quickly with lesspressure.

High Hardness HSS With 5% Cobalt.


Made of high quality HSS Cobalt steel,

Effective in drilling tough,high tensile strength materials.

Material	HSS4241,HSS4341,HSS6542(M2),HSS CO5%(M35),HSS CO8%(M42)
Standard	DIN338 ,Stub DIN1897, Long DIN340, Extra Long DIN1869,DIN345,DIN333

	Jobber length,ScrewMachine Length,Taper length,Aircraft Extension
Process	Fully Ground ; Rolled, Milled
Size	Metric System, or Inch
Point Type	118 Degree Regular Point ,135 Degree Split Point,
Shank Type	Hex Shank,Straight Shank ,Tri-Flats Shank, Double R Hex Shank, Reduced Shank,1/4″Quick change shank,3Flats shank,1/2"shank,3/8"shank

Helix Angle	Regular Spiral Type N , Slow Spiral Type H, Fast Spiral Type Ware
Web & Flute Type	Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish	Bright ,Black Oxide, Amber Color, Titanium, Black & Gold, Titanium & Bright are Available
Package	Metal Box；PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell,
Features	TITANIUM \| HIGH SPEED STEEL: classic high speed steel construction with titanium coating for proven capability and durability
	135° SPLIT POINT TIP and TWIST DESIGN: increases cutting speed with self-centering and prevents walking, clears chips and particles faster
	QUICK CHANGE: 1/4 inch hex shank fits into all power tools more easily and securely, specially for locking into quick change chuck
	ORGANIZED HOLDER: set includes a drill bit holder with size index for easy storage and organizing
