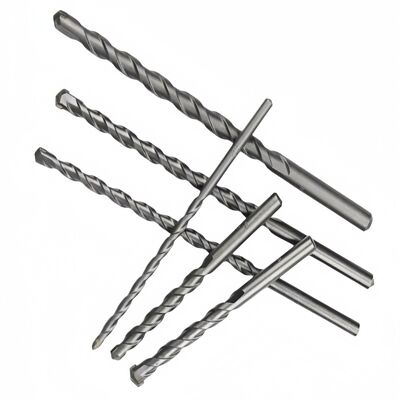

3.0mm Block Masonry Drill Bit Tungsten Carbide Sand Blasted With DIN8039

Name: 3.0mm Block Masonry Drill Bit Tungsten Carbide Sand Blasted With DIN8039
Brand: ZHANGJIAGANG FLAME MACHINERY CO.,LTD.
SKU: 3.0mm
Price: 1.05 USD
Availability: InStock

Brand Name:	XRTOOLS
Model Number:	3.0mm
MOQ:	500PCS
Price:	0.05-2.7$/PCS
Delivery Time:	30-45days
Payment Terms:	T/T, L/C, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

JIANG SU

Certification:

ISO9000

Name:

Masonry Core Drill Bit

Type:

Concrete Drill Bits

Size:

3.0mm

Material:

Tungsten Carbide

Shank:

Round Shank

Process:

Milled Flutes And Welded Tip

Tip Material:

Tungsten Carbide

Body Material:

40Cr

Application:

Brick, Block And Concrete

Packaging Details:

Plastic tube,pvc bags,as your require.

Supply Ability:

100,0000Pcs Per Mouth

Highlight:

din8039 masonry drill bit

din8039 concrete drill bits

sand blasted masonry drill bit

Product Description

3.0mm Block Masonry Drill Bit Tungsten Carbide Sand Blasted With DIN8039

Product Description:

1 High Quality Drill Bit Set; Concrete drill bit, Industrial strength carbide drill bit tip, excellent abrasion resistance, make the drilling much more easier. this masonry drill bit can easily penetrate various material (glass, ceramic tile, marble, wood, travertine, ceramic, stone, concrete, brick, hard plastic, cement, etc.)
2 Drill bits that can drill through concrete are called masonry bits. They are also good for drilling through brick and stone. Drill bits with a tungsten carbide tip are the strongest; when it comes to solid concrete, the sharper the better. Masonry bits cut holes through concrete in two steps

Product Name	Carbide Super Tip Super Masonry Drill Bit
Standard	ISO5468 DIN8039
Tip Material	Tungsten Carbide
Flute Type	U double Flute
Size	3mm
Total Length	60mm
Flute Length	30mm
Shank Diamater	2.5mm
Surface	Sand blasted

3.0mm Block Masonry Drill Bit Tungsten Carbide Sand Blasted With DIN8039 0

High-Carbon Steel Core & Tungsten Carbide Tip

The drill bit’s core is made of high-quality high-carbon steel, professional heat treatment to reach 58–60 HRC hardness. This enhances its toughness and deformation resistance, allowing it to withstand high torque and repeated impact without bending, breaking, or warping during heavy-duty use. The drill bit is equipped with a premium YG8C tungsten carbide cutting tip, precision brazed with high-temperature copper alloy to ensure a secure bond—even under continuous heavy drilling—avoiding premature tip damage or loss.

Masonry Drill Bit Size:

Size	working Dia	Total Length	Flute Length	Shank Dia
3	3	60	30	2.5
4	4	75	38	3.2

Appliation:

Use double flute masonry bits for drilling in brick, cinder block and tile.
Double flute for fast clearing of waste materials. 2X faster drilling than standard rotary masonry bits.
Carbide tip minimizes wear and extends the life of the bit.
For use in corded and cordless rotary drills only.

3.0mm Block Masonry Drill Bit Tungsten Carbide Sand Blasted With DIN8039 1
