Masonry Drill Bit
Created with Pixso. ISO5468 Carbide 6mm Masonry Drill Bit With U Double Flute Surface Sand Blasted

ISO5468 Carbide 6mm Masonry Drill Bit With U Double Flute Surface Sand Blasted

Brand Name: XRTOOLS
Model Number: 6.0mm
MOQ: 500PCS
Price: 0.05-2.7$/PCS
Delivery Time: 30-45days
Payment Terms: T/T, L/C, D/P
Detail Information
Place of Origin:
JIANG SU
Certification:
ISO9000
Name:
Masonry Drill Bits
Type:
Marble Drill Bit
Size:
6.0mm
Material:
Tungsten Carbide
Shank:
Round Shank
Process:
Milled Flutes And Welded Tip
Tip Material:
Tungsten Carbide
Body Material:
40Cr
Tool Flute Type:
Spiral
Application:
Brick, Block And Concrete
Packaging Details:
Plastic tube,pvc bags,as your require.
Supply Ability:
100,0000Pcs Per Mouth
Highlight:

iso5468 masonry drill bit

,

iso5468 concrete drill bits

,

6mm masonry drill bit

Product Description

ISO5468 Carbide 6mm Masonry Drill Bit With U Double Flute Surface Sand Blasted



6mm masonry drill bit of  Description:



High quality carbide tip for fast cutting and extended life. For applications in brick, concrete and block. Use with a standard drill.

Flat shank prevents bit slippage. Package includes 5 premium concrete bits to be used with 1/4" Topcon style masonry screws.

For applications in brick, concrete and block. Used by professionals from plumbers to re-modelers.



Product Name Carbide Masonry Drill Bit
Standard ISO5468 DIN8039
Tip Material Tungsten Carbide
Flute Type U double Flute
Size 6mm
Total Length 100mm
Flute Length 54mm
Shank Diamater 4.8mm
Surface Sand blasted





carbide masonry drill bit of Size:



Size working Dia Total Length Flute Length Shank Dia
6 6 100 54 4.8
8 8 120 67 6.2



  1.  Masonry Drill Bit fits all hammer drills with 3-jaw or Jacobs chuck and patented flute geometry removes dust from the hole quicker for fast drilling and long life.
  2. Chrome vanadium shaft through-hardened to 50-53HrC.
  3. Up to 150% faster than other competitive bits.
  4. Shot-peened, double-tempered finish reduces breakage.
  5. Hot isostatically pressed to extend life and resist breakage.
  6. Copper braze material gives high heat resistance for reduced tip loss.

 Appliation:



Use double flute masonry bits for drilling in brick, cinder block and tile.
Double flute for fast clearing of waste materials. 2X faster drilling than standard rotary masonry bits.
Carbide tip minimizes wear and extends the life of the bit.
For use in corded and cordless rotary drills only.

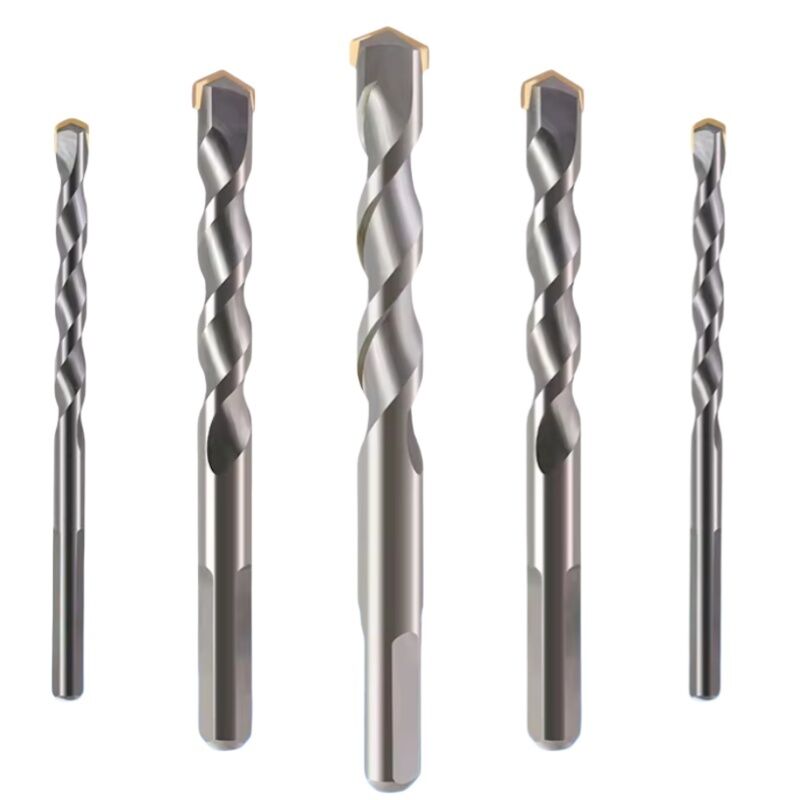

ISO5468 Carbide 6mm  Masonry Drill Bit With U Double Flute Surface Sand Blasted 0
