| Brand Name: | XRTOOLS |
| Model Number: | 1mm-18mm |
| MOQ: | 500PCS |
| Price: | 0.05-2.7$/PCS |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T, L/C, D/P |

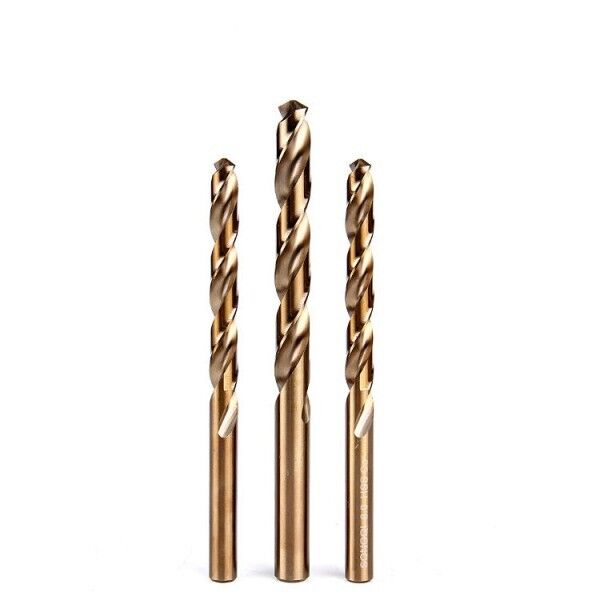

M42 Straight Shank DIN338 HSS Drill Bits For Metal With Amber Finished
Description
HSS drill bits are used to drill soft materials such as aluminum, brass, mild steel, plastic, hardwood, softwood, fiber, etc.
Coated HSS bits can be used to drill cast iron and many more tough materials.
1 Material:M35,M42
2. Process:Fully Ground
3. Surface:Black Oxide
4. Point:18°/135°split point
5. Shank:Straight Shank
6. Drilling holes on aluminium,plastic,wood,copper,iron,stainless steel
HSS Drill Bits of Size:
| D(mm) | L2(mm) | L1(mm) | D(mm) | L2 (mm) | L1(mm) | D(mm) | L2 (mm) | L1(mm) | D(mm) | L2 (mm) | L1(mm) |
| 0.88 | 11 | 32 | 3.6 | 39 | 70 | 8.7 | 81 | 125 | 13.9 | 108 | 160 |
| 0.9 | 11 | 32 | 3.7 | 39 | 70 | 880 | 81 | 125 | 14 | 108 | 160 |
| 0.92 | 11 | 32 | 3.8 | 43 | 75 | 8.9 | 81 | 125 | 14.25 | 114 | 169 |
| 0.95 | 11 | 32 | 3.9 | 43 | 75 | 9 | 81 | 125 | 14.5 | 114 | 169 |
| 0.98 | 12 | 34 | 4 | 43 | 75 | 9.1 | 81 | 125 | 14.75 | 114 | 169 |
| 1 | 12 | 34 | 4.1 | 43 | 75 | 9.2 | 81 | 125 | 15 | 114 | 169 |
| 1.05 | 12 | 34 | 4.2 | 43 | 75 | 9.3 | 81 | 125 | 15.25 | 120 | 178 |
| 1.1 | 14 | 36 | 4.3 | 47 | 80 | 9.4 | 81 | 125 | 15.5 | 120 | 178 |
| 1.15 | 14 | 36 | 4.4 | 47 | 80 | 9.5 | 81 | 125 | 15.75 | 120 | 178 |
| 1.2 | 16 | 38 | 4.5 | 47 | 80 | 9.6 | 87 | 133 | 16 | 120 | 178 |
| 1.25 | 16 | 38 | 4.6 | 47 | 80 | 9.7 | 87 | 133 | 16.25 | 125 | 184 |
| 1.3 | 16 | 38 | 4.7 | 47 | 80 | 9.8 | 87 | 133 | 16.5 | 125 | 184 |
| 1.35 | 18 | 40 | 4.8 | 52 | 86 | 9.9 | 87 | 133 | 16.75 | 125 | 184 |
| 1.4 | 18 | 40 | 4.9 | 52 | 86 | 10 | 87 | 133 | 17 | 125 | 184 |
| 1.45 | 18 | 40 | 5 | 52 | 86 | 10.2 | 87 | 133 | 17.25 | 130 | 191 |
| 1.5 | 18 | 40 | 5.1 | 52 | 86 | 10.3 | 87 | 133 | 17.5 | 130 | 191 |
What is a drill bits?
High-speed steel (HSS) drill bits can drill wood, fiberglass, polyvinyl chloride (PVC) and soft metals such as aluminum.
Cobalt drill bits are extremely hard and dissipate heat quickly. They're mostly used for boring in aluminum and
tough metals such as stainless steel
Packing:
Each hss drill bit packing in palstic box.
