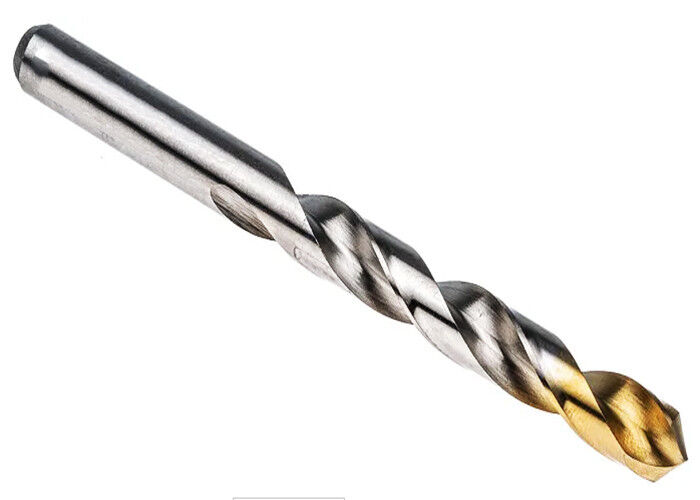

118°/135°Split Point 13mm HSS Drill Bit With Straight Shank
| MOQ: | 500PCS |
| Price: | 0.05-2.7$/PCS |
| Standard Packaging: | Plastic box,Double Blister card |
| Delivery Period: | 30-45days |
| Payment Method: | T/T, L/C, D/P |
| Supply Capacity: | 400,0000Pcs Per Mouth |
13mm HSS 118°/135° Split Point Drill Bit | Straight Shank Metal Drilling
,Large Diameter 13mm HSS Twist Drill Bit | Stainless Steel Cast Iron
,DIN338 13mm HSS Cobalt Drill Bit | HRC65-67 High Speed Steel
118°/135°Split Point 13mm HSS Drill Bit With Straight Shank
Description of DIN340 HSS Drill Bits:
1. Process:Rolled,Rolled and Polished,Fully ground
2. Surface:Surface:Ti-coated,Black Oxide,Bright finished,Amber finished,Grey finished,Rainbow
3. Point:118°/135°split point
4. Shank:Straight Shank.triangle shank,hex shank.
5. Material and Hardness of High Speed Steel
| DESCRIPTION OF HSS | C | W | Mo | Cr | V | Co | Si | Mn | P | S |
| % | % | % | % | % | % | % | % | % | % | |
| W2MoCr4V(F4341) | 0.95-1.05 | 1.7-2.4 | 0.8-1.2 | 3.8-4.4 | 0.8-1.2 | 1.0-1.4 | 0.2-0.4 | <=0.03 | <=0.03 | |
| W4Mo3Cr4V(4341) | 0.88-0.98 | 3.5-4.5 | 2.5-3.5 | 3.8-4.4 | 1.2-1.8 | 0.5-1.2 | 0.2-0.4 | <=0.03 | <=0.03 | |
| W9Mo3Cr4V(9341) | 0.77-0.87 | 8.5-9.5 | 2.7-3.3 | 3.8-4.4 | 1.3-1.7 | - | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W6Mo5Cr4V2(M2) | 0.8-0.9 | 5.5-6.75 | 4.5-5.5 | 3.8-4.4 | 1.75-2.2 | - | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W6Mo5Cr4V2Co5(M35) | 0.9-0.95 | 5.5-6.5 | 4.5-5.5 | 3.8-4.4 | 1.75-2.2 | 4.5-5.5 | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W2Mo9Cr4V2Co8(M42) | 1.05-1.15 | 1.15-1.85 | 9.0-10.0 | 3.5-4.25 | 0.95-1.25 | 7.75-8.75 | 0.15-0.65 | 0.15-0.4 | <=0.02 | <=0.025 |
Size of Long Type hss drill bits for steel :
| D | L2 | L1 | D | L2 | L1 | D | L2 | L1 | D | L2 | L1 |
| 1 | 33 | 56 | 4.9 | 87 | 132 | 8.8 | 115 | 175 | 12.7 | 134 | 205 |
| 1.1 | 37 | 60 | 5 | 87 | 132 | 8.9 | 115 | 175 | 12.8 | 134 | 205 |
| 1.2 | 41 | 65 | 5.1 | 87 | 132 | 9 | 115 | 175 | 12.9 | 134 | 205 |
| 1.3 | 41 | 65 | 5.2 | 87 | 132 | 9.1 | 115 | 175 | 13 | 134 | 205 |
| 1.4 | 45 | 70 | 5.3 | 87 | 132 | 9.2 | 115 | 175 | 13.1 | 134 | 205 |
| 1.5 | 45 | 70 | 5.4 | 91 | 139 | 9.3 | 115 | 175 | 13.2 | 134 | 205 |
| 1.6 | 50 | 76 | 5.5 | 91 | 139 | 9.4 | 115 | 175 | 13.3 | 140 | 214 |
| 1.7 | 50 | 76 | 5.6 | 91 | 139 | 9.5 | 115 | 175 | 13.4 | 140 | 214 |
| 1.8 | 53 | 80 | 5.7 | 91 | 139 | 9.6 | 121 | 184 | 13.5 | 140 | 214 |
| 1.9 | 53 | 80 | 5.8 | 91 | 139 | 9.7 | 121 | 184 | 13.6 | 140 | 214 |
| 2 | 56 | 85 | 5.9 | 91 | 139 | 9.8 | 121 | 184 | 13.7 | 140 | 214 |
| 2.1 | 56 | 85 | 6 | 91 | 139 | 9.9 | 121 | 184 | 13.8 | 140 | 214 |
| 2.2 | 59 | 90 | 6.1 | 97 | 148 | 10 | 121 | 184 | 13.9 | 140 | 214 |
| 2.3 | 59 | 90 | 6.2 | 97 | 148 | 10.1 | 121 | 184 | 14 | 140 | 214 |
| 2.4 | 62 | 95 | 6.3 | 97 | 148 | 10.2 | 121 | 184 | 14.3 | 144 | 220 |
| 2.5 | 62 | 95 | 6.4 | 97 | 148 | 10.3 | 121 | 184 | 14.5 | 144 | 220 |
| 2.6 | 62 | 95 | 6.5 | 97 | 148 | 10.4 | 121 | 184 | 14.8 | 144 | 220 |
| 2.7 | 66 | 100 | 6.6 | 97 | 148 | 10.5 | 121 | 184 | 15 | 144 | 220 |
Drill bits come in a wide range of shapes and sizes, and are available in a variety of materials and coatings. Most tooling and machining
operations have a drill bit that’s designed specifically for the task. Here’s a quick overview of several types of drill bits, materials and
design types.
Made From HIGH-SPEED Steel and 5% Cobalt,improve much higher heat resistance because of cobalt steel's high
red hardness, provide strong durable performance compared to typical hss drill bits
Accurate and Neat: 135°Quick-Cut points are self-centering and penetrate quickly with less pressure.
