DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees For Metal Stainless Steel

DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees For Metal Stainless Steel

MOQ: 500PCS
Price: 0.05-2.7$/PCS
Standard Packaging: Plastic box,Double Blister card
Delivery Period: 30-45days
Payment Method: T/T, L/C, D/P
Supply Capacity: 400,0000Pcs Per Mouth
Detail Information
Place of Origin
JIANG SU
Brand Name
XRTOOLS
Certification
ISO9000
Model Number
6.0MM
Name:
Hss-M2 Drill Bits
Material:
High Speed Steel
Type:
Twist Drill Bit
Process:
Fully Ground
Size:
4.5-6.5mm
Shank:
Straight Shank
Hardness:
HRC63-65
Surface:
Bright Finish
Point Angle:
135 Degree Split Point
Use:
Metal Stainless Steel
Highlight:

DIN338 Straight Shank HSS Twist Drill Bit | 135° Metal Stainless Steel

,

Fully Ground HSS DIN338 Drill Bit | Stainless Steel Cast Iron Aluminum

,

HSS Cobalt Twist Drill Bit | 135° Quick-Cut Split Point Industrial

Product Description

DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees For Metal Stainless Steel



HSS Twist Drill Bits  of Description:



The drill bits are made of premium high speed steel M2, and suit for cutting metal, plastic, wood, etc effectively with impressive cutting performance;
All drill dimensional & tolerances conform to ASME/ANSI B94.11M or USCTI - United States Cutting Tool Institute drill standards;
Quality high speed steel ensures the bits super hard, sharp and fast execution in any material for clean results with long tool life;
Fully ground process ensures excellent chips moving, and 135 degree chisel angle with split point provide ultimate accuracy start for quick penetration without Walking and less Logging;
Precision treatment makes drills to be durable and toughness, withstand heavy duty operation, resist corrosion and lubricate drills better for drilling smoothly;
Fractional 1/64 to ½ inch Jobber Length drills are available in XRTOOLS;

  • Jobber length bits designed for drilling stainless and hard steel, plastic and wood, Premium Swift Bore (Registered Trademark)
  • Hardened and tempered M2 high-speed steel bits fall between standard fractional drill sizes
  • Precision ground, bright finish with polished flutes that increase chip ejection

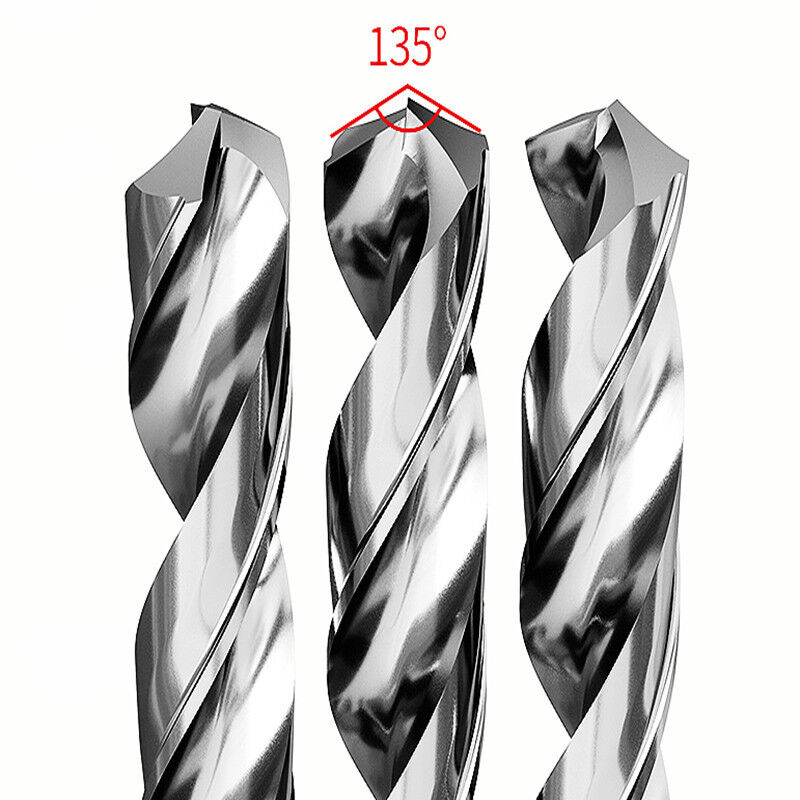

  • 135-degree split point for fast penetration and accurate starting with no center punch.


qucik detail :



1 name: HSS M2 Twist Drill Bit
2 Type: Twist Drill Bit
3 Material: High Speed Steel, HSS and HSS Cobalt
4 Process: Fully Ground
5 Standard: DIN338
6 Point Angle: 118 degree or 135° degrees
7 Shank: Straight Shank
8 Helix Angle: Type N Spiral Flute Right Hand
9 Size: 4.5-6.5mm
10 Surface Finish: Bright Finish
11 Application: For Metal Stainless Steel





Name

HSS drill bit

Material

HSS4241,HSS4341,HSS6542(M2),HSS 5% cobalt(M35)

Shank

Straight shank drills,taper shank drills,1/2 shank drills

Color

Customization

Degree

1.118 degree point angle design for general purpose,

2.135 double angle facilitates rapid cutting and reduce the working time

Surface

Black finish,TiN Coated,bright finished,black oxide,rainbow,nitriding etc.

Size

1 - 20mm, 3/64" – 11/64, A - Z, 1# - 60#

Usage

Metal Drilling,Stainless steel,aluminum, PVC etc.



drill bits of  Size:



DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees  For Metal Stainless Steel







hss twist drill bits of Application:



The M2 high-speed steel drill bits for metal is very suitable for hardened materials: such

as hard plastic, cast iron, alloy,

stainless steel, wood, softer metals, etc.; please note that drywall drill bit is not suitable for

glass, ceramic materials, high

carbon Steel and heat-treated steel.

DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees  For Metal Stainless Steel



Pakcing and Deliver:

DIN338 Straight Shank HSS Twist Drill Bit 135° Degrees  For Metal Stainless Steel
