| Brand Name: | XRTOOLS |
| Model Number: | 3.0MM |
| MOQ: | 500PCS |
| Price: | 0.05-2.7$/PCS |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T, L/C, D/P |

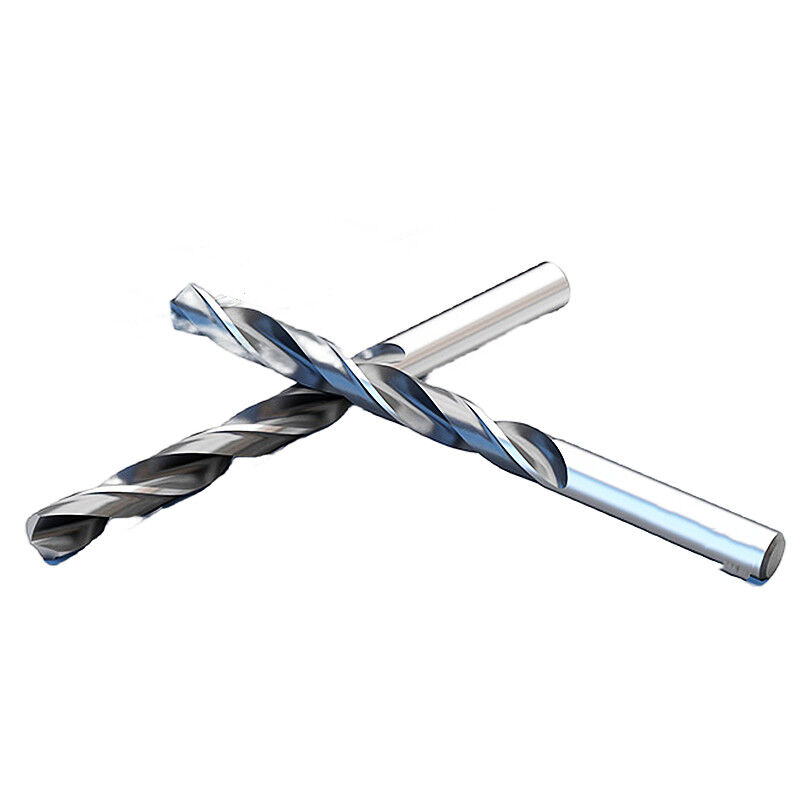

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
Rolled forged drill bit is used for drilling holes in Mild Steel, EN-9, Cast Iron, Castings, Plastics, Wood, Stainless Steel with point enhancement. It is available from diameter 2.70mm to 13.0 mm. These drills are used in bus body shops, Automobile shops, Manufacturing plants and machine shops etc. These drills are available in point angles of 118 and 135 Degrees.
Designed to offer the best balance between drilling performance and price,Specially designed tip with split point and 118-degree angled tip for precise self-centering and fast start.Good fracture resistance thanks to the precise roll forging production process.
1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and
toughness for wear resistance.
2.Universal 118° point shape for drilling a wide selection of materials.
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
5.DIN 338 series drill bits are ideal for many trade and industrial projects.
qucik detail :
| 1 Product Name: Roll Forged HSS Twist Drill Bit 2 Material: High Speed Steel 3 Process: Roll Forged 4 Standard: DIN338 5 Point Angle: 118 Degree Regular Point 6 Shank: Straight Shank 7 Helix Angle: Type N Spiral Flute Right Hand 8 Size: 1-20mm 9 Surface Finish: Black Oxide 10 Application: Metal Drilling 11Type: Twist Drill Bit |
Any sizes are available for your requirements:
| Standard: | DIN 338/340/345/1869/1897; ASME Jobber Length |
| Material: | HSS 4241 / 9341 / M2 / M35 / M42 |
| Process: | Full Ground / Milled / Roll Forged |
| Slipt Point: | 135°/ 118° |
| Surface: | Bright / Tin-coated / Black Oxide / Black and Yellow / Black and White / Sandblast |
| Shank: | 1/2" and 3/8" Reduced Shank /Straight Shank / Taper Shank / Three-Flat Shank |
| Sizes: | Metric sizes and Inch size |
| Package: | Metal / Plastic / Wood |
Size:
hss Roll Forged twist drill bits of Application:
Pakcing:
