| Brand Name: | XRTOOLS |
| Model Number: | 146 |
| MOQ: | 500PCS |
| Price: | $0.35-22/PCS |
| Delivery Time: | 30-35 days |
| Payment Terms: | L/C, T/T, D/P, Western Union, MoneyGram |
The Problem: Large diameter hole saws (like 146mm) often suffer from three critical failures: instantaneous stall due to extreme torque, rapid tooth dulling from thermal annealing, and the "vacuum lock" effect where large slugs become impossible to remove.
The Cause: As diameter increases, the peripheral linear speed of the teeth grows exponentially. Standard M3 bi-metal saws lose their hardness within seconds under the intense friction heat generated by a 146mm circumference.

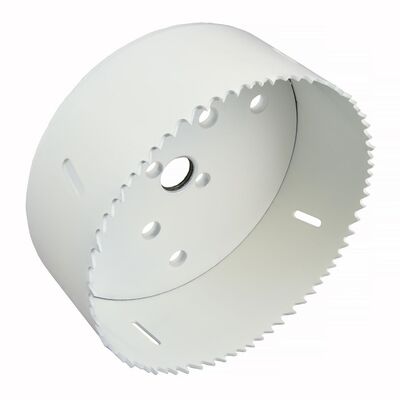

The M42 Solution: Our 146mm M42 Cobalt Series is specifically engineered for these extreme-torque loads. By integrating 8% Cobalt into the HSS edge, we have elevated the "Red Hardness" of the tool. This ensures the teeth maintain structural integrity and razor-sharpness even when cutting through 304 stainless steel or heavy composite panels at high temperatures.
| Technical Dimension | Specification Detail | Industrial Value Proposition |
| Edge Material | Certified HSS M42 (8% Cobalt) | Thermal Stability: Engineered for stainless steel and high-tensile alloys. |
| Concentricity | TIR (Runout) ≤ 0.28mm | Motor Protection: Minimizes wobble to prevent drill motor strain and user fatigue. |
| Pitch Geometry | 4/6 TPI Variable Pitch Design | Resonance Suppression: Eliminates harmonic chatter for mirror-smooth hole edges. |
| Welding Standard | Vacuum Electron-Beam Fusion | Shatter-Proof: Teeth remain fused even under heavy impact from hidden nails. |
| Boring Depth | 38mm (1-1/2") Reinforced Cup | High Penetration: Cuts through subfloors and heavy-gauge plates in a single pass. |
The 146mm diameter is a critical "Efficiency Hub" for large-scale engineering. We have optimized this tool for the following scenarios:
Industrial Ventilation & HVAC:
The primary tool for pre-drilling entries for 150mm (6") ventilation ducts. The M42 teeth slice through aluminum-foil-faced insulation and 6mm metal cladding without the jagged edges that cause seal failure.
Commercial Plumbing & Water Treatment:
Designed to provide precise clearance for 6-inch PVC or Copper main drainage lines. The 146mm diameter allows for the specific "interference fit" required for standard sleeves and acoustic vibration dampeners.
Electrical Infrastructure:
Essential for installing large-scale cable tray wall penetrations in data centers and industrial substations.
Marine & Tank Engineering:
Boring through Fiberglass (GRP) hulls or large-scale plastic storage tanks for flange installations. The 8% Cobalt content outlasts standard saws by 3:1 in abrasive fiberglass applications.
High-Torque Base Plate: Given the massive leverage of a 146mm diameter, we have thickened the mounting base to 6.5mm. This prevents the center arbor holes from "egging out" or deforming under high-load industrial use, extending the tool's lifecycle.
Red-Hardness Technology: At 146mm, the heat buildup is localized and intense. Our M42 metallurgy maintains a hardness of HRC 66-68 even at temperatures of 650°C (1200°F), which is the decisive advantage when cutting hard metals like stainless steel.
Dual-Access Speed Slots: Designed for the massive "slugs" generated at this size. The angled ejection slots allow for rapid heat dissipation and provide a convenient leverage point for a screwdriver to pop out the core in seconds.
Q: Can I use a handheld drill with a 146mm hole saw?
A: Technically yes, but because of the immense torque, it is highly recommended to use a high-powered drill with a side handle and set it to low gear. The optimal speed for 146mm is between 40 - 55 RPM.
Q: Is M42 suitable for 304 Stainless Steel?
A: Absolutely. Our M42 contains 8% Cobalt specifically for work-hardening materials like stainless steel. However, always use specialized cutting oil to prevent the material from galling to the teeth.
Q: Why use 146mm instead of a full 150mm?
A: 146mm is the engineering standard for a 150mm (6") pipe fit. It provides a "tight-clearance fit" that is easier to seal and insulate compared to a loose 150mm opening.
