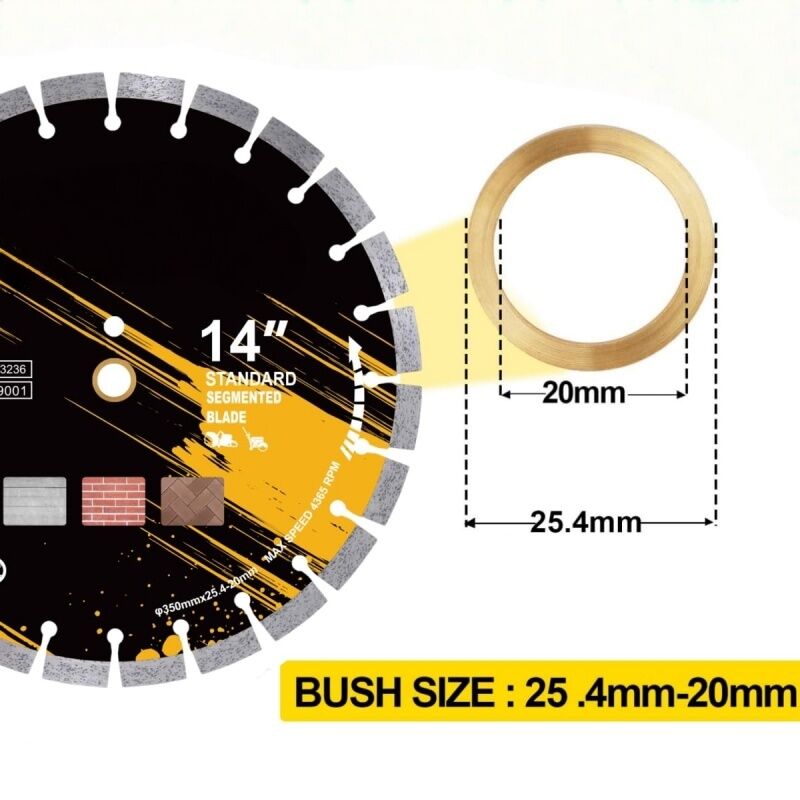

355mm Heavy-Duty Rescue Diamond Blade | Cuts Concrete & Steel (1" & 20mm Arbor)

1. Problem: Lethal Segment Loss and "Rebar Bounce"

• The Problem: When structural demolition crews or emergency rescue teams cut through heavily reinforced commercial concrete (bridge decks, foundation pillars), they inevitably hit thick steel rebar. If an operator uses a standard cold-pressed blade on a high-torque 14-inch gas saw, the extreme metal-on-metal friction melts the segment binder. The diamond segment violently rips off the steel core, becoming a lethal projectile. Furthermore, standard blades often bounce or glaze over when hitting 1-inch thick steel rebar, stalling the saw and exhausting the operator.

• The Result: Severe, life-threatening safety hazards, wrecked gas saws, and massive delays on critical demolition or emergency trenching projects.

2. Cause: Weak Sintered Bonds and Random Diamond Placement

• Mechanical Shear: Cold-pressed (sintered) segments are simply baked onto the core. They cannot withstand the lateral shear forces and extreme heat generated by cutting solid structural steel embedded in 6000+ PSI concrete.

• Random Matrix Wear: Traditional blades mix diamond dust randomly into the metal bond. When hitting steel, the blade exposes "bald spots" with no diamonds, causing the blade to glaze, spark, and stop cutting.

3. Solution: Aerospace Laser-Welding and 3D Arrayed Technology

• 100% Laser-Welded Bond: This 14-inch blade abandons cold-pressing. Every single diamond segment is individually laser-welded directly to the heavy-duty steel core. This creates an unbreakable, metallurgical fusion. It guarantees that the segments will never detach, even when plunging deep into heavy steel rebar, cast iron pipes, or steel mesh at 5,400 RPM.

• 3D Arrayed Diamond Technology (Arix): Instead of random mixing, the premium industrial diamonds are meticulously placed in perfect, 3D geometric rows throughout the segment. As the segment wears, a new, perfectly spaced row of sharp diamonds is always instantly exposed. This guarantees a relentless, aggressive bite, increasing cutting speed through steel-reinforced concrete by up to 30% and doubling the blade's lifespan.

• Turbo-Segmented Rim: The segments feature a corrugated "Turbo" profile. This reduces side-friction (drag) against the concrete, lowers cutting resistance to prevent the gas saw from bogging down, and provides a smoother, faster cut than standard block segments.

4. Technical Specifications

5. Professional Industry Applications

• Structural Demolition: The ultimate blade for slicing through heavily reinforced concrete, bridge decks, concrete pilings, and pre-cast architectural panels.

• Utility & Trenching: Effortlessly cuts through ductile iron water pipes, cast iron sewer lines, and thick concrete curbs in municipal repair operations.

• Fire & Rescue (USAR): Trusted by Urban Search and Rescue teams for rapidly breaching security doors, reinforced concrete walls, and steel roof decking during emergency extractions.

6. Operation and Safety Guidelines

• Do Not Force on Steel: When the blade transitions from cutting concrete to cutting thick steel rebar, you will hear a distinct change in pitch and see sparking. Do not bear down with your body weight. Let the saw's RPM and the arrayed diamonds naturally mill through the steel. Forcing the saw will glaze the diamonds.

• Wet Cutting Maximizes Life: This laser-welded blade is engineered to survive extreme dry-cutting conditions. However, connecting a water hose to your gas saw will instantly eliminate airborne silica dust, keep the massive 14-inch core cool, and extend the life of the arrayed segments by up to 40%.

• Directional Mounting: Look for the laser-etched directional arrow on the steel core. The blade must be mounted so the arrow matches the rotational direction of your gas saw. Mounting it backward will instantly ruin the arrayed diamond structure.

7. FAQ: Expert Technical Support

Q: I usually buy $30 cold-pressed blades. Why should I pay more for this Laser-Welded blade?

A: Operator Safety. If you hit thick steel rebar with a cheap cold-pressed blade on a 14-inch gas saw, the segment will likely snap off and fly at you like a bullet. Laser-welding fuses the metal together, making it physically impossible for the segment to tear off under normal cutting loads. If you cut concrete with steel in it, you must use a laser-welded blade.

Q: Will this blade cut solid structural steel beams (I-Beams)?

A: This blade is optimized for concrete, masonry, and the steel rebar/pipes embedded within them. While it can cut through structural steel in an emergency, it is not an abrasive chop-saw blade. Continuous cutting of pure, thick plate steel will glaze the diamonds over quickly.

Q: What is the maximum cutting depth I can get with this 14-inch blade?

A: When mounted on a standard 14-inch gas-powered cut-off saw (like a Stihl TS420), this blade provides a maximum cutting depth of approximately 4.9 inches (125mm).

Q: Why does the segment have a "Turbo" grooved shape instead of being flat?

A: The corrugated "Turbo" grooves reduce the surface area contacting the concrete. Less surface area means less friction, which prevents the 14-inch blade from bogging down the gas saw's engine, resulting in a much faster, smoother cut.
