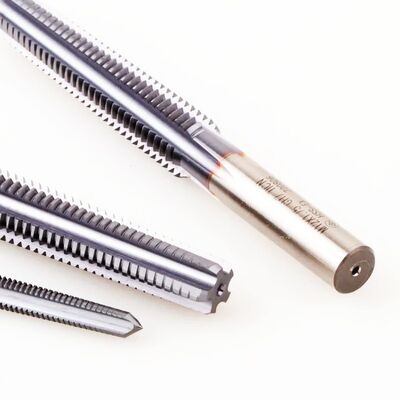

Our Long Shank Nut Machine Taps are specifically designed for the high-volume production of industrial nuts. Unlike standard machine taps, the elongated shank allows multiple finished nuts to accumulate on the tool during the continuous tapping process of automatic nut-tapping machines.
Manufactured from premium HSS-M2 or HSS-E M35 Cobalt, these taps offer exceptional torsional strength and wear resistance. Every thread is CNC ground to ensure a consistent 6H tolerance, providing the precision required for Tier-1 automotive and industrial fasteners.
| Size | Total Length (L) | Thread Length (Lc) | Shank Ø (d) | Recommended Bottom Hole |
| M2 | 36.00 | 12.00 | 1.40 | 1.60 |
| M3 | 40.00 | 15.00 | 2.24 | 2.50 |
| M4 | 50.00 | 21.00 | 3.15 | 3.70 |
| M5 | 55.00 | 24.00 | 4.00 | 4.20 |
| M6 | 60.00 | 30.00 | 4.50 | 5.00 |
| M8 | 65.00 | 36.00 | 6.30 | 6.75 |
| M10 | 70.00 | 40.00 | 8.00 | 8.50 |
| M12 | 80.00 | 47.00 | 9.00 | 9.00 |
| M16 | 95.00 | 58.00 | 12.50 | 14.00 |
| M20 | 110.00 | 62.00 | 16.00 | 17.50 |
| M22 | 110.00 | 62.00 | 18.00 | 19.50 |
Extended Reach (Long Shank): The long shank architecture is optimized for automated discharge systems, reducing machine downtime and increasing parts-per-hour (PPH).
Short Thread Length (Lc): Designed to reduce friction and torque during the through-hole tapping of standard nut thicknesses.
Precision Shank (d): The shank diameter is engineered to be slightly smaller than the minor diameter of the thread, allowing finished nuts to slide smoothly over the shank without jamming.
Substrate Performance: Choose HSS-M2 for standard carbon steel nuts or HSS-E M35 (5% Cobalt) for high-tensile (Grade 8/10) or stainless steel nuts.
Surface Integrity: Fully ground thread profiles with a high-polish finish to minimize friction and prevent material galling.
Chip Management: The straight flute design provides excellent rigidity, essential for the high-torque environment of industrial nut machines.
Q: Why is the bottom hole size for M12 listed as 9.00mm?
A: Note that nut taps often follow specialized tolerances for fastener manufacturing. Always verify your required thread engagement percentage (usually 65%-75%) before selecting your final drill size.
Q: Can these taps be used on a standard CNC VMC?
A: While possible, these are specialty Nut Taps optimized for continuous flow. For standard CNC blind-hole or through-hole applications, we recommend our Spiral Point or Spiral Flute series.
Q: Do you offer custom shank lengths or bending for these taps?
A: Yes. As a professional factory, we can customize the total length (L) and shank configurations to match your specific automatic tapping equipment.
