| Brand Name: | XRTOOLS |
| Model Number: | 54 |
| MOQ: | 500PCS |
| Price: | $0.35-22/PCS |
| Delivery Time: | 30-35 days |
| Payment Terms: | L/C, T/T, D/P, Western Union, MoneyGram |

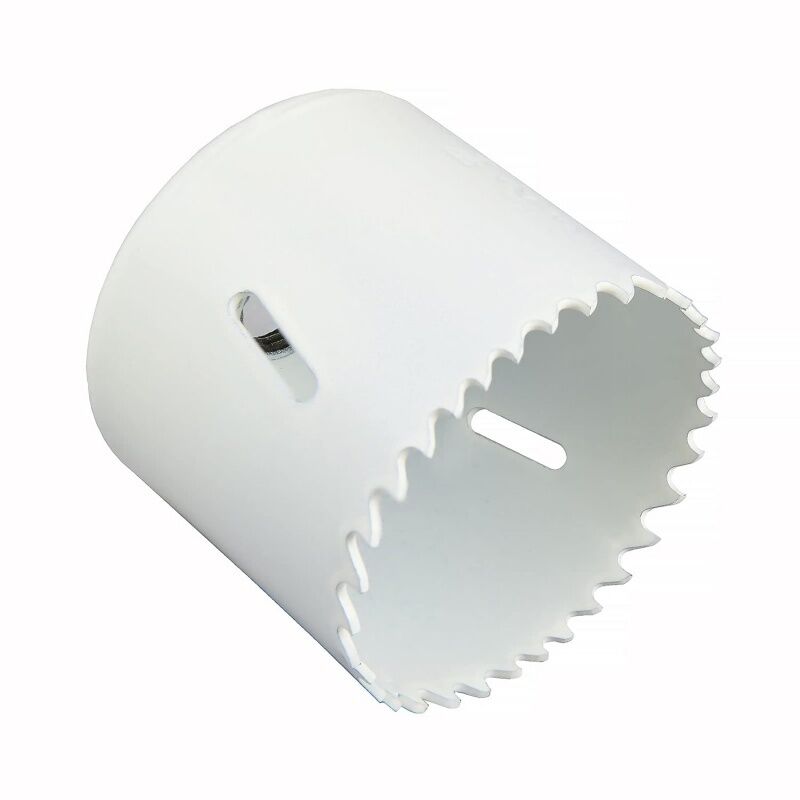

The 54mm M42 Cobalt Bi-Metal Hole Saw is the industry standard for installing commercial and residential door hardware. While standard bi-metal saws struggle with the torque and heat generated by a 2-1/8" diameter, our M42 (8% Cobalt) version is purpose-built for heavy-duty cycle performance.
By upgrading the cutting edge to M42 Cobalt, we’ve ensured that this tool can tackle not only wood and plastic but also 304 Stainless Steel control boxes and metal-clad doors. This is the definitive "no-fail" tool for contractors who require precision, speed, and long-term durability on the job site.
| Performance Dimension | Technical Implementation | Benefit for the Professional |
| Material Integrity | Certified HSS M42 (8% Co) | Red-Hardness: Prevents tooth edge rounding at high temperatures (up to 1200°F). |
| Boring Efficiency | 4/6 TPI Variable Pitch Geometry | Vibration Dampening: Reduces hand-arm fatigue and prevents "scalloped" hole edges. |
| Torque Resistance | Reinforced 6.35mm Base Plate | Structural Stability: Prevents the arbor holes from stripping under high-torque load. |
| Heat Management | Industrial Friction-Shield Coating | Cooler Cutting: Prevents wood sap or metal shavings from fusing to the saw teeth. |
| Core Ejection | Oversized Dual-Angle Speed Slots | Minimal Downtime: Allows for rapid core removal via screwdriver leverage. |
Optimized for 54mm Torque Loads: As the diameter increases, the leverage against the teeth grows significantly. Standard M3 saws often "strip" their teeth when they hit a knot or a metal stud. Our M42 Cobalt edge is electron-beam welded in a vacuum to a high-flexibility alloy body, allowing the tool to absorb shocks without tooth loss.
Precision Pot-Light & Lock Compatibility: 54mm is the critical dimension for most global door lock brands. Our saw is precision-ground to a TIR (Total Indicator Runout) of <0.2mm, ensuring your lockset fits snugly without "wobble," reducing the need for corrective filing during installation.
Deep Throat Capacity (38mm / 1-1/2"): Designed to cut through a standard 1-3/4" door from both sides or penetrate a double-layer 5/8" drywall partition in a single pass.
Locksmithing: Drilling the primary 2-1/8" (54mm) hole for deadbolts and cylindrical locksets.
Electrical & HVAC: Creating entry points for 2" PVC drainage pipes and large cable bundles.
Commercial Kitchen MRO: Cutting through 304 Stainless Steel tables for plumbing and electrical routing.
Carpentry: Installing large cable grommets and recessed light fixtures in hardwood and MDF.
Q: Can I use this 54mm saw on a metal-clad security door?
A: Yes. The 8% Cobalt teeth are specifically designed for metal-cutting. Ensure you use a slow RPM (40-50 RPM) and apply cutting oil to prevent heat buildup on the metal surface.
Q: Why does my 54mm hole saw vibrate so much?
A: Vibration is usually caused by harmonic resonance or a loose arbor. Our 4/6 TPI Variable Pitch is designed to break this resonance. For 54mm, always use a 7/16" Hex Arbor with drive pins for maximum stability.
Q: Will it cut through nails hidden in the wood?
A: The M42 Cobalt edge is hard enough to cut through common framing nails. However, to maximize the life of the saw, we recommend slowing down as you feel the resistance change.
