The Problem: When contractors use standard wood blades (ATB) to cut commercial laminate flooring, the highly abrasive aluminum-oxide wear layer instantly destroys the sharp carbide points. Furthermore, when cutting acrylics (Plexiglass) or PVC with standard blades, the friction melts the plastic behind the cut, while the aggressive teeth shatter the brittle edges.
The Result: Blades that are ruined after just three cuts on laminate, cracked expensive acrylic sheets, and ruined aluminum extrusions that require heavy deburring.
Point Fracture: Standard Alternate Top Bevel (ATB) blades have sharp, needle-like outer points. When these points strike hard laminates or non-ferrous metals, they micro-fracture and dull immediately.
Friction Welding: Wood blades generate immense localized heat. On plastics, this heat causes the swarf (dust) to melt and weld the kerf back together as the blade passes.
TCG "Trapeze-Flat" Geometry: Instead of fragile points, this blade utilizes a Triple Chip Grind. It alternates between a flat "raker" tooth and a chamfered "trapezoidal" tooth. The trapezoid tooth cuts a narrow groove to rough out the center, and the flat tooth follows to widen the cut and clear the corners. This distributes the cutting force, allowing the blade to effortlessly handle highly abrasive laminates and aluminum without dulling.
Zero/Negative Rake Angle: The carbide teeth are brazed at a neutral or slightly negative angle. Instead of aggressively "grabbing" the material, the teeth scrape and mill it. This completely eliminates the chipping and shattering associated with brittle acrylics and thin-wall aluminum.
Friction-Relief Kerf: The 1.6mm kerf is optimized to evacuate plastic ribbons and metal chips instantly, preventing heat build-up and ensuring melt-free cuts on temperature-sensitive polycarbonates.

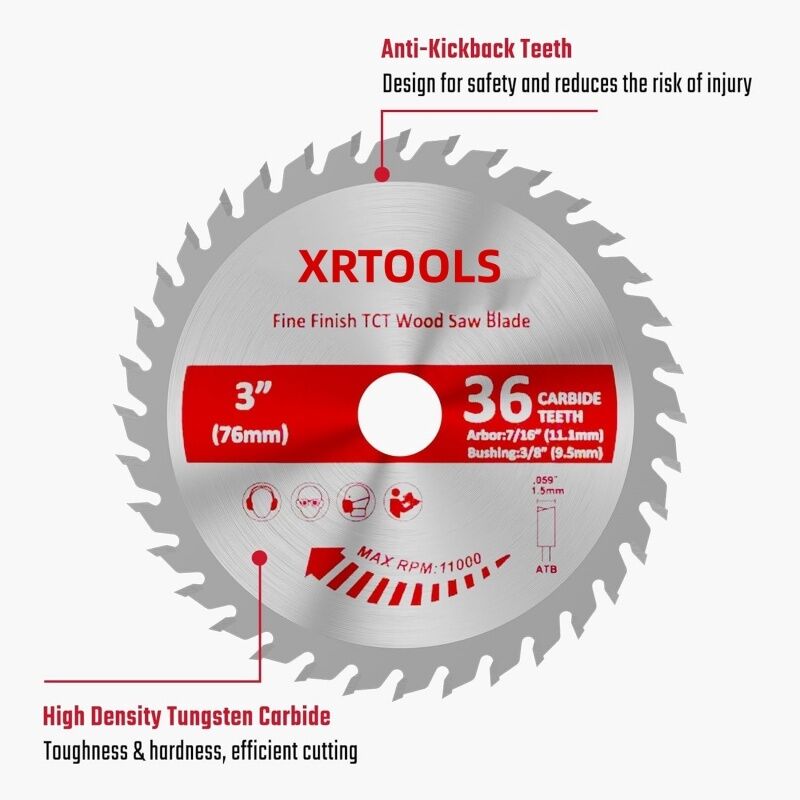

| Technical Pillar | Imperial Specification | Metric Specification | Industrial Benefit |
| Diameter | 3" | 76mm | Standard size for 12V/18V compact plunge tools. |
| Arbor Size | 7/16" (with 3/8" Bushing) | 11.1mm (with 9.5mm Bushing) | Fits global brands of sub-compact circular saws. |
| Tooth Count | 36T | 36T | High density for smooth milling on hard surfaces. |
| Tooth Grind | TCG (Triple Chip Grind) | TCG | Resists dulling on abrasive laminates and aluminum. |
| Rake Angle | Zero / Mild Negative | Zero / Mild Negative | Prevents grabbing and shattering on brittle plastics. |
| Max RPM | 11,000 RPM | 11,000 RPM | Safe for high-speed compact cutoff grinders. |
Commercial Flooring: The absolute best choice for plunge-cutting high-wear laminate flooring, LVP (Luxury Vinyl Plank), and engineered hardwood where standard blades dull instantly.
Signage & Displays: Perfectly clean, melt-free, and crack-free sizing of Acrylic (Plexiglass), Polycarbonate, PVC foam boards, and solid surface countertops (Corian).
Non-Ferrous Fabrication: Trimming aluminum extrusions, copper piping, brass trim, and metal roofing profiles cleanly without producing hazardous sparks or heavy burrs.
Aluminum Cutting Protocol: When cutting aluminum extrusions with a high-speed 3-inch saw, always apply a cutting wax stick or specialized non-ferrous lubricant to the blade teeth before the cut. This prevents aluminum from welding to the carbide.
Plastic Feed Rates: To prevent melting acrylics, you must maintain a steady, continuous feed rate. Do not pause mid-cut, as the spinning blade will instantly melt the plastic wall. Let the tool dictate the pace.
Mandatory Clamping: Because the TCG uses a milling action, it can occasionally push the material away from you. Always securely clamp aluminum or plastics to the workbench before plunging a compact saw into them.
Q: Should I buy the 3" ATB or this 3" TCG for my cordless saw?
A: It depends entirely on your material. If you are cutting clean wood, plywood, or standard MDF, buy the ATB version—it cuts faster and cleaner on wood. If you are cutting abrasive laminate flooring, plastics, aluminum, or fiberglass, you must buy this TCG version. An ATB blade will be destroyed by those materials.
Q: Why does my acrylic sheet still crack when I use this blade?
A: Cracking with a TCG blade usually means the material is not supported properly. When cutting thin acrylic with a compact saw, the sheet must be fully supported on a flat surface (like a rigid foam board) so it does not vibrate or flex upward during the cut.
Q: Does this TCG blade drain my cordless battery faster than a wood blade?
A: Yes, slightly. The Triple Chip Grind utilizes a scraping/milling action rather than slicing, which requires more kinetic energy from the motor. However, this is the necessary trade-off to successfully cut metals and hard plastics without ruining the tool.
Q: Can I use this blade to cut steel pipes or iron rebar?
A: No. This blade is designed for non-ferrous metals (aluminum, copper, brass) and plastics. Cutting ferrous metals (iron, steel) requires a specialized Cermet dry-cut blade and a low-RPM machine. Cutting steel with this blade at 11,000 RPM will instantly shatter the carbide teeth.
