| Brand Name: | XRTOOLS |
| Model Number: | 14MM |
| MOQ: | 500PCS |
| Price: | 0.05-2.7$/PCS |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T, L/C, D/P |

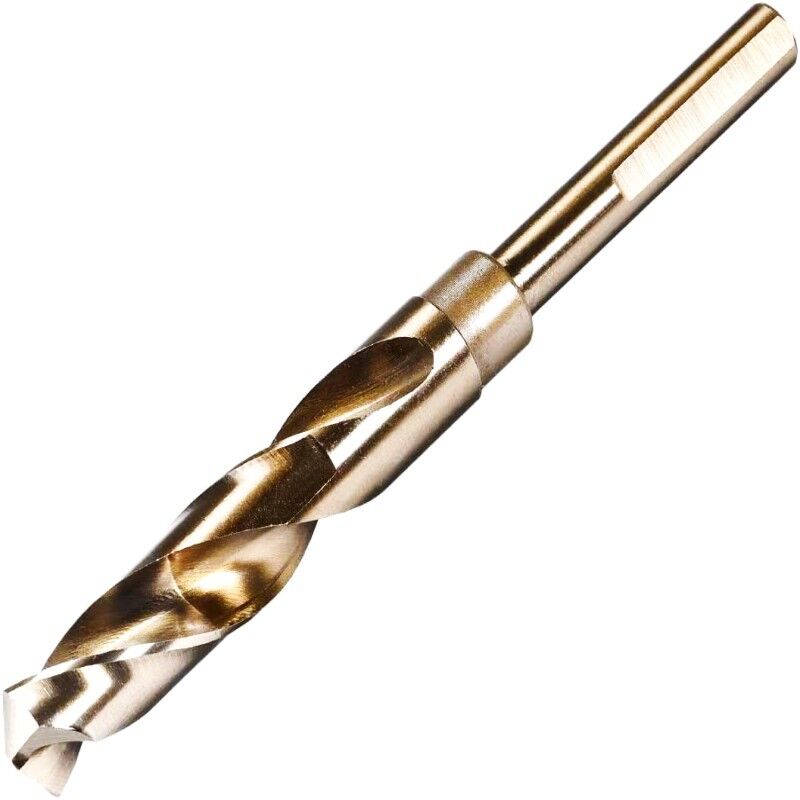

Hss twist drill Usually referred to as twist drills, twist bits are probably the most common drilling tools used by the handyman
with either a hand or electric drill. The front edges cut the material and the spirals along the length remove the debris from
the hole and tend to keep the bit straight.
They can be used on timber, metal, plastics and similar materials. Most twist bits are made from either:
'high speed steel' (HSS), these are suitable for drilling most types of material, when drilling metal the HSS stands up
to the high temperatures.'carbon steel', these bits are specially ground for drilling wood and should not be used for
drilling metals, they tend to be more brittle, less flexible than HSS bits.
| Brand Name | high speed drill bits for stainless steel |
|---|---|
| Process: | Rolled,Rolled and Polished,Fully ground |
| Cutting Angle | 118 °/ 135° degrees |
| Cutting Diameter | 14mm |
| Fastening Type | Keyed Chuck and Keyless Chuck |
| Material | M2 , M35,M42 |
| Point Type | 118°/135°split poin |
| Shank Type | Reduce shank,Straight Shank.triangle shank,hex shank. |
| Size | 14mm |
| Total Length | 160mm |
| Flute Length | 108mm |
| Specific Uses For Product | timber / metal Drilling |
| Style | twist drill bit |
| Tool Flute Type | Spiral |
| DESCRIPTION OF HSS | C | W | Mo | Cr | V | Co | Si | Mn | P | S |
| % | % | % | % | % | % | % | % | % | % | |
| W2MoCr4V(4241) | 0.95-1.05 | 1.7-2.4 | 0.8-1.2 | 3.8-4.4 | 0.8-1.2 | 1.0-1.4 | 0.2-0.4 | <=0.03 | <=0.03 | |
| W4Mo3Cr4V(4341) | 0.88-0.98 | 3.5-4.5 | 2.5-3.5 | 3.8-4.4 | 1.2-1.8 | 0.5-1.2 | 0.2-0.4 | <=0.03 | <=0.03 | |
| W9Mo3Cr4V(9341) | 0.77-0.87 | 8.5-9.5 | 2.7-3.3 | 3.8-4.4 | 1.3-1.7 | - | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W6Mo5Cr4V2(M2) | 0.8-0.9 | 5.5-6.75 | 4.5-5.5 | 3.8-4.4 | 1.75-2.2 | - | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W6Mo5Cr4V2Co5(M35) | 0.9-0.95 | 5.5-6.5 | 4.5-5.5 | 3.8-4.4 | 1.75-2.2 | 4.5-5.5 | 0.2-0.4 | 0.2-0.4 | <=0.03 | <=0.03 |
| W2Mo9Cr4V2Co8(M42) | 1.05-1.15 | 1.15-1.85 | 9.0-10.0 | 3.5-4.25 | 0.95-1.25 | 7.75-8.75 | 0.15-0.65 | 0.15-0.4 | <=0.02 | <=0.025 |
The M2 high-speed steel drill bits for metal is very suitable for hardened materials: such as hard plastic, cast iron, alloy,
stainless steel, wood, softer metals, etc.; please note that drywall drill bit is not suitable for glass, ceramic materials, high
carbon Steel and heat-treated steel.
High Durability: Constructed from HSS-M2 high-speed steel, this drill bit is designed to handle high temperatures and wear, making it perfect for high-speed drilling and tough materials.
Reduce Shank Design: The 1/2" reduce shank allows the bit to fit into smaller chuck sizes, making it compatible with a wider range of equipment.
Precision Drilling: The fully ground tip ensures clean, accurate holes with minimal effort and better performance in metal drilling.
Versatile Applications: Suitable for a variety of materials, including stainless steel, mild steel, cast iron, aluminum, and brass.
Improved Speed: Designed for high-speed drilling, it reduces cutting time and extends tool life.
What materials can the HSS-M2 drill bit be used for?
The HSS-M2 14mm drill bit is designed for use with stainless steel, mild steel, cast iron, aluminum, and brass.
Why choose a reduce shank design?
The reduce shank design allows this drill bit to fit into smaller chuck sizes, offering versatility and compatibility with a wider range of machines.
Can this drill bit be used for high-speed applications?
Yes, the HSS-M2 steel provides excellent heat resistance and makes the bit suitable for high-speed drilling in tough materials.
What industries can use this drill bit?
The drill bit is perfect for automotive, aerospace, construction, metalworking, and general-purpose industrial applications.
