| Brand Name: | XRTOOLS |
| Model Number: | No.1-64 |
| MOQ: | 100 SET |
| Price: | $1.35-$45.55/SET |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, T/T, Western Union |

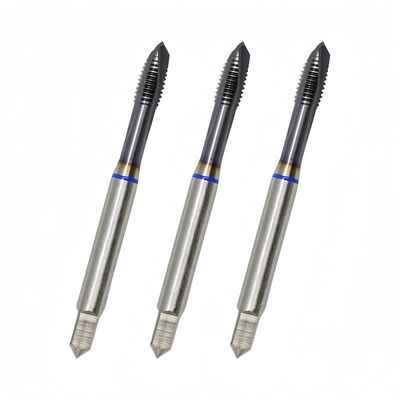

M2 DIN371 Spiral Point HSS Machine Taps With Ti Coated Right Hand
introduction:
Used for short screw -in length in through and blind hole. Suitable for threading in low-alloyed steels, cast, nodular
cast iron, tempered, cast and the other metals.
| Product Name | DIN371 spiral point taps |
| Material | M35,M2,4341,4241,Alloy steel |
| Hardness | HRC62-66 |
| Surface treatment | White(We can supply differenk kinds surface treatment to you ) |
| Operation method | Threading machine,CNC lathe,Milling and drilling machine,Lathe |
| Application | Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole. |
SIZE OF DIN371 hand machine taps :
| SIZE | OVERALL LENGTH | THREAD LENGTH | DIA OF THE SHANK |
| M2*0.4 | 45 | 8 | 2.8 |
| M2.5*0.45 | 50 | 9 | 2.8 |
| M3*0.5 | 56 | 11 | 3.5 |
| M4*0.7 | 63 | 13 | 4.5 |
| M5*0.8 | 70 | 16 | 6 |
| M6*1 | 80 | 19 | 6 |
| M7*1 | 80 | 19 | 7 |
| M8*1.25 | 90 | 22 | 8 |
| M9*1.25 | 90 | 22 | 9 |
| M10*1.5 | 100 | 24 | 10 |
HSS Machine Taps features :
1. Complete hole drilling, tapping, deburring and countersinking in one operation with power drill saves labor and time.
2. Self-centering point, do not need assistant center drilling or center punching.
3. Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with
hand tools.
4. Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds.
5. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and
toughness for wear resistance.
6. Made from HSS with titanium coated, high hardness and rust resistance, durable and long service life.
7. Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron, etc.
