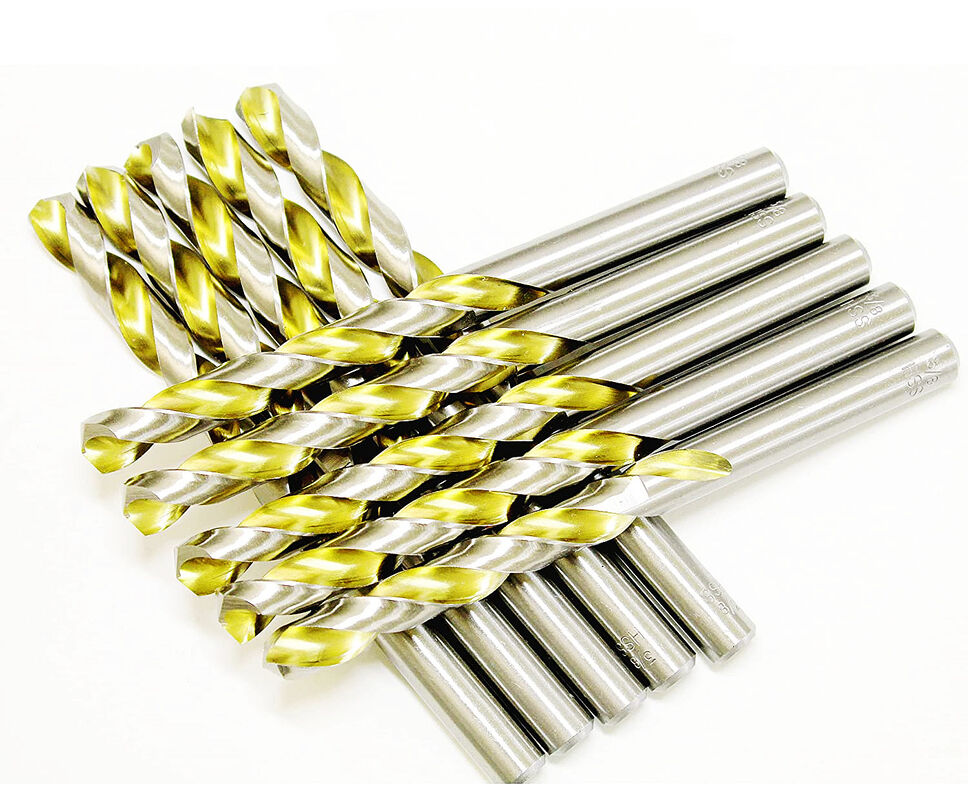

DIN338 Titanium Nitride Coated HSS Drill Bit For Metal
| MOQ: | 500PCS |
| Price: | 0.05-2.7$/PCS |
| Standard Packaging: | Plastic box,Double Blister card |
| Delivery Period: | 30-45days |
| Payment Method: | T/T, L/C, D/P |
| Supply Capacity: | 400,0000Pcs Per Mouth |
Titanium Nitride Coated HSS Drill Bit | Industrial Metal Drilling
,DIN338 Fully Ground Twist Drill Bit | Turbo Max Point Design
,HSS Cobalt High-Speed Steel Drill Bit | ISO9000 Certified
DIN338 Titanium Nitride Coated HSS Drill Bit For Metal
HSS Bits Used For
HSS drill bits are used to drill soft materials such as aluminum, brass, mild steel, plastic, hardwood, softwood, fiber, etc.
Coated HSS bits can be used to drill cast iron and many more tough materials.
In order to increase the performance, HSS bits are coated with Titanium Nitride (TiN), Titanium Carbon Nitride (TiCN), and T
itanium Aluminium Nitride (TiAlN). Those will reduce the friction of the drill bit and material as well as increase the heat resistance
and durability of the drill bit.
Description
1 Name: HSS Drill Bit
2 Material: HSS Cobalt
3 Standard: DIN338
4 Point Type: Turbo Max Point
5 Surface Finish: Bright & Gold
| Diameter (mm) | Flute Length (mm) | Overall Length (mm) | Diameter (mm) | Flute Length (mm) | Overall Length (mm) |
| 4.0 | 43 | 75 | 8.0 | 75 | 117 |
| 4.2 | 43 | 75 | 8.5 | 75 | 117 |
| 4.5 | 47 | 80 | 9.0 | 81 | 125 |
| 9.5 | 81 | 125 | 15.0 | 114 | 169 |
| 10.0 | 87 | 133 | 15.5 | 120 | 178 |
| 10.5 | 87 | 133 | 16.0 | 120 | 178 |
| 12.0 | 101 | 151 | 17.5 | 130 | 191 |
| 12.5 | 101 | 151 | 18.0 | 130 | 191 |
| 13.0 | 101 | 151 | 18.5 | 135 | 193 |
| 13.5 | 108 | 160 | 19.0 | 135 | 198 |
| 14.0 | 103 | 160 | 19.5 | 140 | 205 |
| 14.5 | 114 | 169 | 20.0 | 140 | 205 |
intruduction:
HSS drill bits are made by mixing these materials 0.85% C; 4% Cr; 5% Mo; 6% W; 2% V.
According to its material mixing proportion, strength has varied. M1, M2, M7, M35, M42, and
M50 have different strengths and resistance HSS. HSS is used for drill bits, cutting tools, knives,
and many tough tools.
| HSS Drill Bits | |||||||||||
| Manufacturing | Surface Finish | Sharpening | |||||||||
| White | Black | B&W | Tin Coated | Amber | Black&Gold | 118° | 135°S.P. | Turto Max | 118°S.P | Web Thinning | |
| Rolled Forged | √ | √ | √ | √ | √ | ||||||
| Rolled Polished | √ | √ | √ | √ | √ | √ | √ | √ | |||
| Fully Ground | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| Milled | √ | √ | √ | √ | √ | √ | √ | ||||
| Standards | DIN338,DIN1897,DIN340,DIN1869,DIN345,DIN333 | ||||||||||
| Jobber length,ScrewMachine Length,Taper length,Aircraft Extension | |||||||||||
| Material | HSS4241,HSS4341,HSS6542(M2),HSS CO5%(M35),HSS CO8%(M42) | ||||||||||
| Shank | Straight shank(Parallel shank), Reduced Shank, hex shank,1/4″Quick change shank,3Flats shank,1/2"shank,3/8"shank | ||||||||||
| Helix Angle | Type N,Type W,Type H | ||||||||||
| Rotating | Right Hand,Left Hand | ||||||||||
| Flute | Normal,parabolic | ||||||||||
