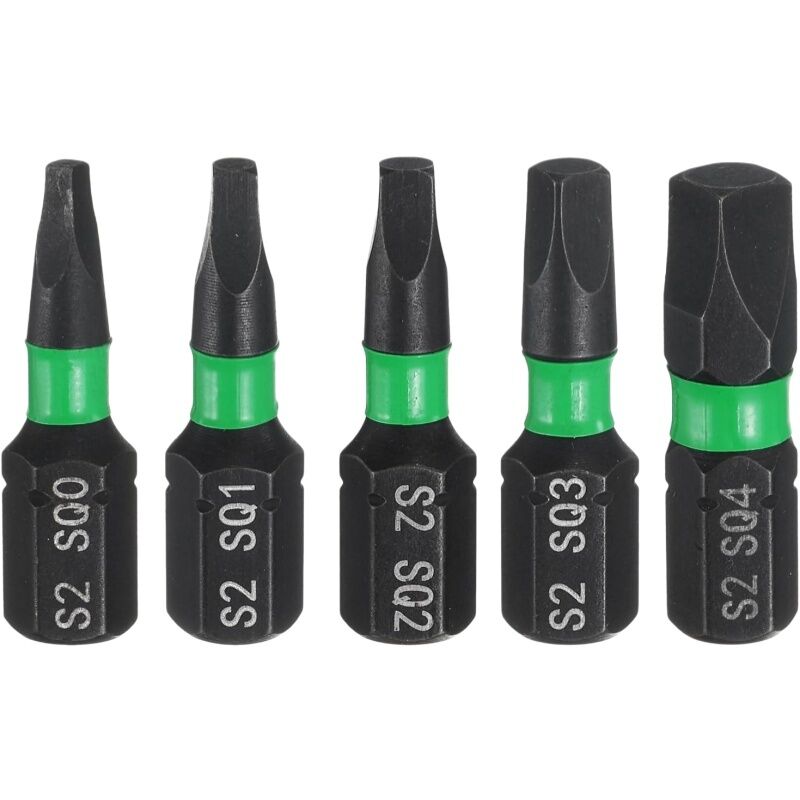

Professional SQ0-SQ4 Screwdriver Bits | Shock-Resistant S2 Alloy (1/4" Hex)

1. Problem: Stripped Fasteners and Shattered Tips

• The Problem: When carpenters drive 3-inch deck screws or assemble hardwood cabinetry using modern high-torque impact drivers, standard screwdriver bits fail rapidly. The bit either "cams out" (slips and strips the screw head), ruining the expensive wood finish, or the brittle steel tip violently snaps off inside the fastener, halting the project completely.

• The Result: Massive drops in job-site productivity, wasted materials, and the constant, frustrating expense of replacing broken consumable bits every few days.

2. Cause: Brittle Metal and Poor Casting Tolerances

• Inadequate Metallurgy: Standard bits are often made from Chrome-Vanadium (CR-V). While fine for hand tools, CR-V is too brittle to absorb the violent, repetitive anvil strikes of a power impact driver.

• Loose Fit Tolerances: Cheap bits are cast rather than milled. This creates a sloppy, loose fit inside the screw head. When torque is applied, the bit twists out of the recess instead of driving the screw downward.

3. Solution: S2 Shock-Resisting Alloy and CNC Precision

• Industrial S2 Tool Steel: Forged from premium S2 alloy steel, these bits are specifically heat-treated to balance extreme hardness with critical flexibility. This "shock-absorbing" metallurgy allows the bit to flex slightly under the violent impacts of a power driver, preventing the tip from shattering while driving long fasteners into dense hardwoods.

• CNC Milled Anti-Cam-Out Tips: Each square tip (SQ0 through SQ4) is precision CNC-machined to exact dimensional tolerances. This guarantees a tight, locked-in fit inside the Robertson screw recess, virtually eliminating cam-out, protecting your fasteners, and ensuring maximum torque transfer.

• High-Visibility Color Coding: Engineered with a distinctive green color band around the shank. This allows operators to instantly identify the Square drive profile in a dark, crowded tool bag without having to squint at the etched sizing.

4. Technical Specifications

5. Professional Industry Applications

• Cabinetry & Woodworking: The definitive bit for driving pocket-hole screws and assembling hardwood furniture without stripping the heads.

• Decking & Subflooring: Built to withstand the continuous high-torque driving of long coated deck screws and heavy-duty subfloor fasteners.

• Electrical & RV Manufacturing: The standard drive profile for securing electrical panel breaker lugs, conduit boxes, and mobile home structural framing.

6. Operation and Safety Guidelines

• Seating the Fastener: Before pulling the trigger on your impact driver, ensure the square tip is fully seated at the very bottom of the screw recess. Starting the driver while the bit is only halfway inserted will round off the corners of both the bit and the screw.

• Straight-Line Driving: Maintain a strict 90-degree angle between the impact driver and the work surface. Tilting the driver puts extreme lateral stress on the neck of the bit, which can cause premature snapping.

• Corrosion Prevention: The black oxide coating provides excellent rust resistance. However, if working in wet conditions, wipe the bits down with a light coat of machine oil before storing them in your case to maximize their lifespan.

7. FAQ: Expert Technical Support

Q: What is the difference between S2 steel and CR-V steel?

A: CR-V (Chrome-Vanadium) is standard steel used for hand wrenches; it is hard but brittle, making it prone to snapping in an impact driver. S2 Steel is a premium, shock-resisting tool steel specifically alloyed to handle the high-torque, repetitive striking forces of power tools without breaking.

Q: Are these bits magnetic?

A: The S2 steel itself is mildly magnetic, which helps hold lightweight screws. However, for holding heavy, long deck screws horizontally, it is recommended to pair these bits with a magnetic bit holder or a slip-on magnetic collar.

Q: Why are there five different sizes (SQ0-SQ4)?

A: Using the wrong size bit is the #1 cause of stripped screws.

• SQ0 & SQ1: Used for small trim and fine woodworking screws.

• SQ2: The most common size, used for standard decking and pocket-hole screws.

• SQ3 & SQ4: Used for heavy structural timber screws and large electrical panel lugs.

Q: Will the 1/4" hex shank fit in my standard drill chuck?

A: Yes. The 1/4" hex shank is the universal standard. It locks perfectly into the quick-change collet of any impact driver, and it can also be clamped securely into the traditional 3-jaw chuck of a standard power drill.
