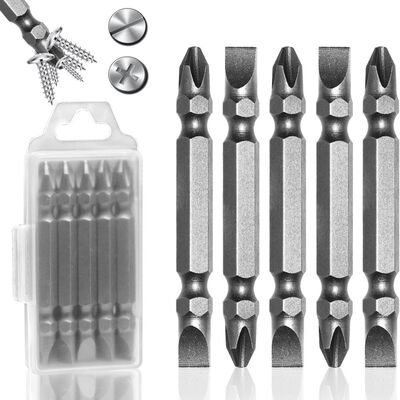

Industrial 65mm Double-Ended Bit | PH2 & SL6 (Flathead) S2 Steel Power Bit

1. Problem: The "Two-Tool" Ladder Trap

• The Problem: Facility maintenance workers and electricians constantly face mixed-fastener environments. For example, installing a standard wall switch requires a Phillips (PH2) bit for the mounting screws, but immediately requires a Flathead (SL6) bit for the delicate faceplate or terminal screws. Carrying two separate drills, or constantly stopping to dig through a tool pouch while balancing on a ladder, breaks concentration, wastes massive amounts of time, and leads to dropped bits.

• The Result: Severe workflow interruption, bloated tool belts, and the frustration of constantly swapping single-profile bits for simple, two-minute repair jobs.

2. Cause: Isolated Tooling and Brittle Flatheads

• Single-Profile Limitations: Standard bits are designed for production lines where every screw is identical. They fail in unpredictable, real-world maintenance environments where fastener types change from room to room.

• The Slotted Snapping Hazard: Cheap CR-V flathead (slotted) bits are notoriously brittle. When subjected to the torque of a power tool, the flat blade often shatters, leaving dangerous metal shards and a useless bit.

3. Solution: The "Quick-Flip" Dual-Profile Architecture

• PH2 + SL6 Universal Coverage: This 65mm bit combines the undisputed king of structural fasteners (Phillips #2) with the standard for electrical and finish work (6mm Slotted/Flathead). When you encounter a different screw type, you simply pull the bit out, flip it 180 degrees, and instantly have the exact tool you need. It is two professional-grade tools occupying the space of one.

• S2 Steel Slotted Blade: Forged entirely from premium S2 shock-resisting tool steel. Unlike cheap bits, the 6mm slotted tip is precisely milled and through-hardened. It possesses the elasticity required to absorb impact driver torque without the thin flathead blade shattering or snapping off inside a tight terminal block.

• 65mm (2.56") Ergonomic Clearance: A double-ended bit must be easy to handle. At 65mm long, there is ample exposed steel protruding from the drill chuck. This allows technicians wearing heavy protective leather or rubber gloves to easily pinch, extract, and flip the bit with zero fumbling.

4. Technical Specifications

5. Professional Industry Applications

• Electrical Installation: The definitive bit for electricians. Use the PH2 side to mount junction boxes to wood studs, then instantly flip to the SL6 side to tighten brass terminal screws and nylon faceplates.

• HVAC & Appliance Repair: Seamlessly transitioning between Phillips housing screws and Slotted set-screws on furnace panels, blower motors, and commercial ductwork.

• EDC (Everyday Carry) & Multi-Tools: The perfect universal bit to keep in a pocket or pair with a high-end multi-tool for unpredictable daily maintenance tasks.

6. Operation and Safety Guidelines

• Slotted (Flathead) Alignment Warning: While the PH2 end is self-centering, the SL6 end requires the operator to keep the bit perfectly aligned within the screw slot. If you drive a slotted screw at an angle, the power tool will violently kick the blade out of the slot, potentially gouging the surrounding work surface.

• Low Torque for Flatheads: Impact drivers are extremely powerful. When flipped to the SL6 (Flathead) side to install delicate items like plastic electrical faceplates, use the absolute lowest speed setting and rely on manual trigger control to prevent cracking the plastic.

• Direct Chuck Insertion Only: Because both ends feature a driving tip, this bit cannot be used in a standard magnetic bit holder. It must be locked directly into the 1/4" quick-release collet of your impact driver or the 3-jaw chuck of a standard drill.

7. FAQ: Expert Technical Support

Q: Will the SL6 (Flathead) tip snap if I use it in an 18V impact driver?

A: Standard flathead bits often snap, but this bit is forged from S2 shock-resisting steel. It is designed to flex slightly and absorb the impact hammer strikes. However, you must ensure the 6mm blade fits snugly into the screw slot; if the slot is too small, the blade will wedge and could be damaged.

Q: Why combine PH2 and SL6 specifically?

A: This combination covers over 80% of the fasteners encountered in general commercial maintenance and electrical work. PH2 is the standard for building materials, and SL6 is the standard for older hardware and electrical fixtures.

Q: Is the central groove compatible with my brand of impact driver?

A: Yes. The centered power groove is universally machined to lock securely into some brand power tools , and all other standard 1/4" hex quick-release impact driver chucks worldwide.
