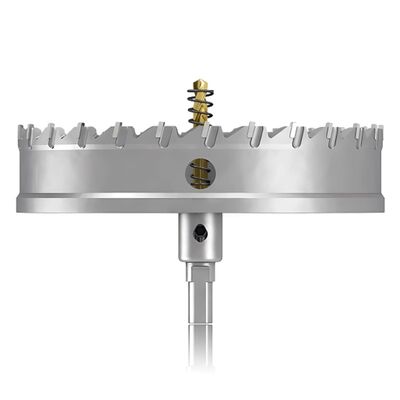

152mm TCT Hole Cutters Heavy Duty Carbide TCT Boring Bit 13mm Shank

152mm TCT Boring Bit | Heavy-Duty Carbide Series with 13mm Anti-Slip Triangular Shank

1. Problem: Extreme Torsional Shear and Abrasive Stripping

• The Problem: Boring a massive 152mm (6-inch) hole through heavy industrial materials—such as thick steel plates, abrasive fiberglass hulls, or steel-skinned insulated panels—generates extreme rotational resistance. Standard bi-metal saws will instantly have their teeth stripped off by abrasive composites, and thin-walled carbon steel saws will physically warp into an oval shape under the massive torque.

• The Result: The tool binds in the cut, violently twisting the drill and risking severe operator injury. The resulting hole is jagged and out-of-round, ruining expensive custom panels or heavy machinery housings.

2. Cause: Abrasive Friction and Cylinder Warping

• Abrasive Degradation: Materials like fiberglass, carbon fiber, and thick stainless steel act like sandpaper against standard high-speed steel, dulling the cutting edge within seconds of contact.

• Cylinder Collapse: At a 6-inch diameter, the sheer distance from the center arbor to the cutting edge means the cylinder walls absorb incredible leverage. Without thick structural support, the walls flex and bind against the workpiece.

3. Solution: Heavy-Wall Chassis and Triple-Edge Carbide Milling

• YG8 Tungsten Carbide Milling: The cutting perimeter is armed with premium, vacuum-brazed YG8 Tungsten Carbide tips. These tips operate on a "milling" principle, effortlessly shaving through abrasive fiberglass, cast iron, and thick steel plate where standard teeth would instantly melt.

• Heavy-Wall Monoblock Cylinder: The tool body is CNC-machined from a heavy-gauge alloy tube with reinforced sidewalls. This massive structural mass guarantees zero torsional deflection (warping), ensuring the 152mm hole remains perfectly true-round even under maximum feed pressure.

• Triple-Stage Tooth Geometry: To manage the extreme torque of a 6-inch bore, the carbide teeth are ground into an alternating Outer, Middle, and Inner profile. This divides the massive cutting load into smaller, manageable chips, preventing the tool from catching or stalling.

4. Technical Specifications

5. Professional Industry Applications

• Marine and Aerospace Fabrication: The definitive tool for boring clean, 6-inch pass-throughs in abrasive fiberglass boat hulls and heavy composite bulkheads without delaminating the material.

• Industrial HVAC and Machinery: Precision boring in heavy carbon steel and cast iron panels for installing custom 152mm ventilation ducting and commercial exhaust blowers.

• Cold Storage and Panel Construction: Reliable, clean cutting through steel-skinned Structural Insulated Panels (SIPs) and heavy-duty commercial refrigeration walls.

6. Operation and Safety Guidelines

• Material Versatility: Optimized for Steel Plate, Stainless Steel, Cast Iron, Fiberglass, Carbon Fiber, and Heavy Plastics.

• RPM Command Strategy:

  • Stainless Steel / Hard Alloys: 40 - 60 RPM

  • Mild Steel / Cast Iron: 60 - 100 RPM

  • Fiberglass / Composites: 100 - 150 RPM

• Machinery Mandate: A 152mm TCT cut generates extreme torque. A Magnetic Drill Press or a heavy-duty stationary drill press is highly recommended. If a handheld drill is absolutely necessary, it must be an industrial low-gear drill, the operator MUST use a secondary side handle, and steady footing is critical.

7. FAQ: Expert Technical Support

Question: Why use a TCT alloy hole saw instead of a bi-metal saw for a 6-inch hole?

Answer: While bi-metal is fine for soft wood or drywall, it fails on industrial materials. If you need to cut a 6-inch hole through a steel machinery housing or a fiberglass hull, bi-metal teeth will strip off immediately. TCT carbide tips will mill through these tough materials cleanly and last exponentially longer.

Question: Does the 152mm size fit a standard 10mm (3/8") drill chuck?

Answer: No. Due to the extreme torque required to turn a 6-inch heavy alloy cylinder, this tool features a heavy-duty 13mm (1/2") triangular shank. You must use a drill with a 1/2-inch chuck to safely operate this tool.

Question: What is the best way to prevent the teeth from chipping when cutting heavy steel?

Answer: Strict RPM control and lubrication. Keep the speed below 80 RPM, apply continuous heavy pressure so the teeth don't "bounce" on the metal surface, and use a continuous flow of high-quality cutting oil to manage the heat.
