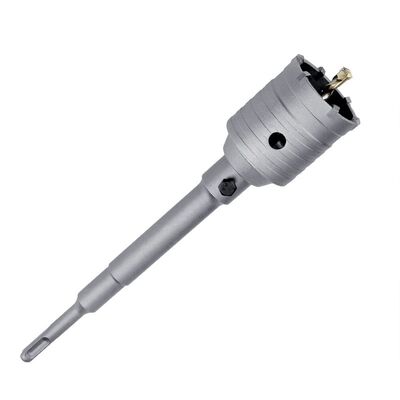

Deep Wall Concrete Hole Cutter 1-3/8 Inch 220mm Tct Holesaw Kit

1. Problem: The "Short-Shank Stall" in Thick Walls

• The Problem: Standard masonry hole saws are equipped with 110mm arbors. When HVAC technicians or electricians need to run a 35mm conduit through a thick exterior building envelope, a double-brick cavity wall, or a cinder block foundation, a standard arbor maxes out halfway through.

• The Result: The technician must stop, manually chisel out the broken core, and attempt to align the hole from the other side of the wall. This leads to misaligned pass-throughs, wasted labor hours, and a highly unprofessional finish.

2. Cause: Joint Instability in Aftermarket Extensions

• The "Wobble" Factor: To reach deeper, many operators use cheap, threaded aftermarket extension rods. Stacking threaded joints introduces mechanical "play" or wobble. Over an 8-inch depth, this wobble multiplies, causing the carbide teeth to bind and the pilot drill to snap instantly under the hammering action of the drill.

3. Solution: 220mm Unibody Arbor and Deep-Track Stability

• Continuous 220mm Unibody Reach: This kit solves the depth problem immediately by featuring a single, continuous 220mm (8.6-inch) SDS-Plus connecting rod. Because there are no threaded extension joints, the power is transferred with 100 percent axial stability, allowing you to bore through thick exterior walls in a single, straight pass.

• Deep-Extraction Fluting: Pushing 220mm deep into a wall generates a massive amount of pulverized rock. The 35mm cutting cup is engineered with aggressive exterior spiral flutes designed specifically to auger deep-hole dust out to the surface, preventing the tool from friction-locking inside the deep trench.

• Impact-Grade Tungsten Carbide: The cutting edge is armed with heavy-duty TCT (Tungsten Carbide Tipped) teeth. These are high-temperature brazed to withstand the sustained, brutal hammering required to push through two layers of solid brick or deep concrete block.

4. Technical Specifications

5. Professional Industry Applications

• Exterior HVAC Installations: The ultimate tool for running mini-split refrigerant line sets directly through thick exterior brick veneer and concrete block walls.

• Main Electrical Services: Boring clean, continuous 35mm pass-throughs for main service conduits entering the building through thick basement foundations.

• Commercial Security and Telecom: Drilling deep, perfectly straight channels through commercial cavity walls for installing heavy-duty exterior security camera wiring.

6. Operation and Safety Guidelines

• Material Versatility: Optimized for Red Brick, Double-Brick Cavity Walls, Cinder Block, Aerated Concrete (AAC), and Mortar.

• The "Pull-Back" Technique: When drilling past 100mm in depth, do not push the drill continuously. Every 50mm, slightly pull the spinning drill back toward you for a second. This acts as a pump, clearing the deep compacted dust out of the hole and keeping the drill motor from burning out.

• Leverage and Safety: A 220mm arbor creates significant leverage. The operator MUST use a two-handed grip with the drill's side-assist handle. Maintain a wide, stable stance, especially when operating on a ladder or scaffold.

7. FAQ: Expert Technical Support

Question: Can I use this 220mm extended arbor with other hole saw sizes?

Answer: Yes. The 220mm SDS-Plus connecting rod features a standard M22 universal thread (verify your specific thread size). This means you can detach the 35mm cup and attach your 50mm or 65mm cups to this long arbor whenever you encounter a thick wall.

Question: Will the 220mm length cause the drill bit to bend under pressure?

Answer: No. The arbor is forged from high-tensile carbon steel specifically designed to absorb the heavy axial load of an SDS rotary hammer. As long as the operator maintains a straight, perpendicular drilling angle without applying lateral (sideways) bending force, the arbor will not bend.

Question: Do I need an extra-long pilot drill for this 220mm kit?

Answer: No. The pilot drill is only needed to establish the first 1/2-inch of the hole. Once the 35mm carbide cup has bitten into the wall and created its own track, the cup itself acts as the guide for the rest of the 220mm depth.
