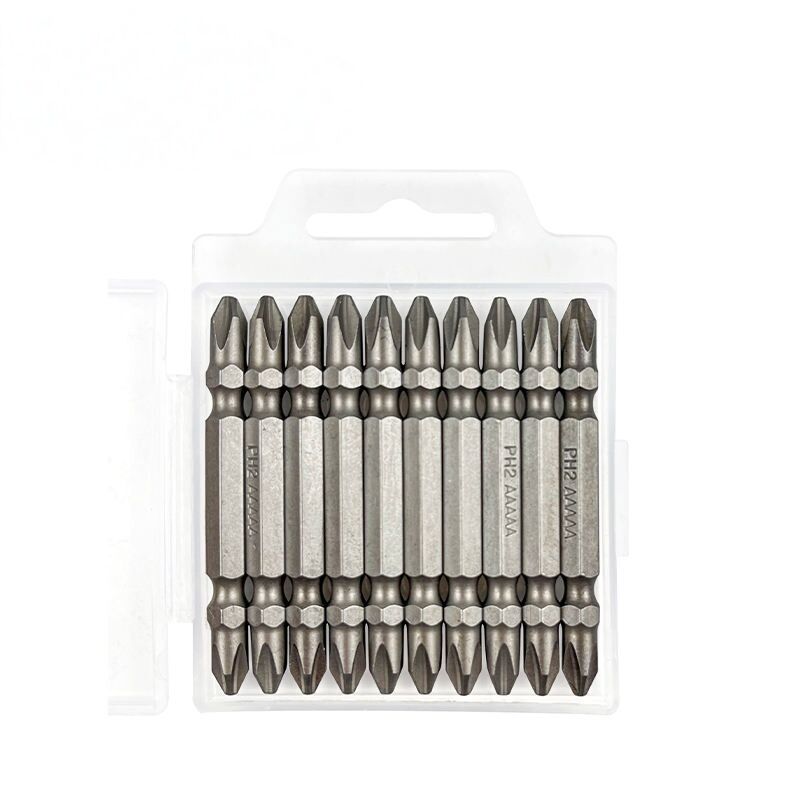

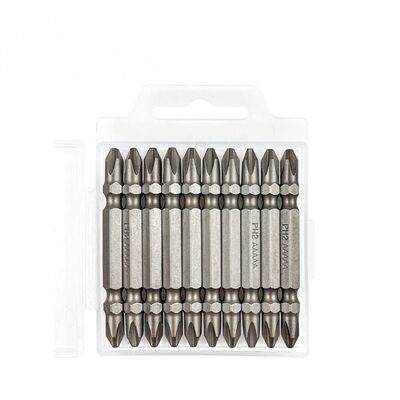

Professional Reversible Phillips #2 Power Bit | 2.5-Inch Extended Grip Length

1. Problem: The "Consumable Burn Rate" and Chuck Pinch

• The Problem: High-volume contractors, especially in drywall and framing, wear out PH2 bit tips daily. When a standard 50mm single-ended bit rounds off, the entire piece of steel is thrown in the trash, doubling consumable costs. Furthermore, when wearing heavy work gloves, a 50mm bit sinks so deeply into the impact driver’s chuck that it becomes incredibly difficult to pinch and pull out, slowing down tool changes.

• The Result: Skyrocketing costs from constantly replacing single-use bits, and frustrating, slow bit-swaps that interrupt job-site rhythm.

2. Cause: Single-Use Engineering and Short-Shaft Limitations

• 50% Wasted Steel: Standard single-ended power bits waste the entire 1/4" hex base once the tiny driving tip wears out.

• Zero Finger Clearance: A standard 50mm (2-inch) bit leaves less than an inch of smooth steel exposed outside the impact driver's quick-release collet, making it nearly impossible to grip with gloved fingers.

3. Solution: 2X Reversible Efficiency and 65mm Ergonomics

• Double-Ended "Quick-Flip" Efficiency: We milled a precision PH2 tip onto both ends of the bit. When you are driving hundreds of screws and the active tip finally begins to wear down, you don't throw the bit away. You simply pull it out, flip it 180 degrees, and immediately resume working with a brand-new, razor-sharp PH2 tip. This literally cuts your consumable bit budget in half.

• 65mm (2.56") Glove-Friendly Clearance: The 65mm length is an ergonomic sweet spot. It provides an extra 15mm of exposed steel shaft outside the drill chuck compared to a standard bit. This gives operators plenty of surface area to quickly pinch, pull, and flip the bit, even while wearing thick leather or nitrile work gloves.

• Central Torsion Power-Groove: The 1/4" hex shaft features a precisely machined central power-groove. This allows the bit to securely lock into modern impact driver collets while acting as a minor torsion zone, absorbing rotational shock to protect both PH2 tips from shattering.

4. Technical Specifications

5. Professional Industry Applications

• High-Volume Drywall Installation: The ultimate cost-saving consumable for crews driving thousands of fine and coarse thread drywall screws daily.

• Production Framing: Maximizing uptime by allowing framers to instantly "quick-flip" to a fresh tip when encountering dense wood knots.

• General Assembly & Manufacturing: Perfect for factory line workers wearing safety gloves who need to quickly swap or flip bits without fumbling.

6. Operation and Safety Guidelines

• Impact Driver Compatibility: This bit is designed for North American and European standard 1/4" quick-release impact driver collets. Ensure your specific impact driver model is deep enough to accept a double-ended bit (the vast majority of modern 18V/20V tools are).

• Do Not Use Magnetic Holders: Because this bit has a PH2 tip on both ends, it cannot be inserted into a standard magnetic bit holder (which requires a flat hex base). It is designed strictly for direct insertion into your drill or impact driver chuck.

• Listen to the Fit: As soon as the active PH2 tip begins to "chatter" or slip (cam-out) inside the screw head, do not force it. Pull the bit out and flip it to the fresh side immediately. Continuing to use a worn tip will strip your fasteners.

7. FAQ: Expert Technical Support

Q: Will the PH2 tip that goes inside the drill chuck get damaged?

A: No. Modern impact driver collets grip the bit by the central machined groove, not by the tip. The internal anvil strikes the flat shoulders of the hex shaft, completely avoiding contact with the delicate Phillips wings hidden inside the chuck.

Q: Why 65mm? Why not just make a double-ended 50mm bit?

A: A 50mm double-ended bit is too short. Once inserted into an impact driver, there is almost no metal left to grab onto to pull it out, and the internal tip may bottom out inside the tool. 65mm provides the necessary internal clearance and external grip area.

Q: Can I use this in my regular 3-jaw power drill?

A: Yes. Simply open the 3-jaw chuck, insert one end of the bit, and tighten it down securely on the flat hex sides. It works flawlessly in both impact drivers and standard drills.
