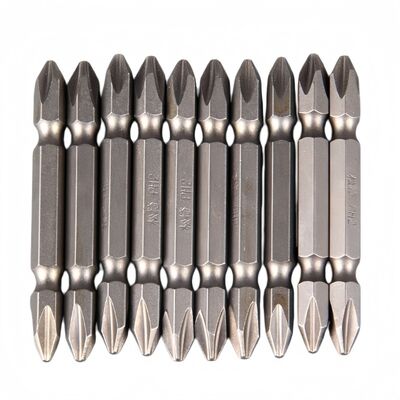

Professional 2-Inch ACR Phillips #2 Bit | Damaged Screw Recovery Tool (S2 Steel)

1. Problem: "Cam-Out" on Previously Damaged Hardware

• The Problem: Maintenance technicians and restoration carpenters rarely work with brand-new screws. They are often forced to remove or tighten screws that were already partially stripped by previous workers using cheap tools. When a standard, smooth-flanked PH2 bit is inserted into a 50% damaged screw head, there is no geometric fit left. The bit simply spins under torque (cams out), completely hollowing out the fastener and turning a 10-second removal into a 30-minute extraction nightmare.

• The Result: Destroyed hardware, scratched work surfaces from slipping drill bits, and severe job-site delays when performing maintenance or demolition.

2. Cause: Smooth Flanks and Geometric Reliance

• Frictionless Steel: Standard bits rely 100% on a perfect geometric wedge fit to turn a screw. Once the screw's internal walls are rounded off, smooth steel has nothing to grip.

• The Ramping Effect: The angled cross-wings of a standard Phillips bit naturally want to "ramp" up and out of the screw head as torque increases. Without fresh corners to lock into, the bit violently ejects itself.

3. Solution: Laser-Etched ACR (Anti-Cam-Out Ribs)

• Micro-Tooth Friction-Lock: The defining feature of this bit is the Laser-Etched ACR (Anti-Cam-Out Ribs) milled directly into the flanks of the PH2 tip. These are microscopic, directional serrations that act like tiny teeth. When torque is applied, these teeth physically bite into the metal walls of the screw head—even if the walls are rounded or damaged.

• Damaged Fastener Recovery: Because the ribbed tip generates massive mechanical friction, it can securely grip and back out screws that are up to 60% stripped. This eliminates the need to drill out the screw or use a specialized bolt extractor, saving immense time on maintenance jobs.

• Premium S2 Tool Steel: To ensure the microscopic ribs do not instantly wear off under high friction, the bit is forged from industrial S2 alloy and through-hardened. This allows the micro-teeth to retain their aggressive "bite" over hundreds of extraction cycles.

4. Technical Specifications

5. Professional Industry Applications

• Facility Maintenance (MRO): The ultimate tool for removing rusted, painted-over, or partially stripped screws from industrial machinery, HVAC panels, and commercial door hinges.

• Restoration & Demolition: Safely extracting old, seized wood screws from antique furniture, vintage automotive interiors, and century-old framing without drilling them out.

• Overhead Drywall Patching: The friction-lock teeth hold screws tightly without relying entirely on magnetism, making it exceptionally stable for awkward overhead installations.

6. Operation and Safety Guidelines

• The "Bite" Requirement: The Anti-Slip ribs are directional. To activate the friction lock, you must apply heavy, initial downward pressure before pulling the impact driver trigger. This forces the micro-teeth to cut into the screw walls.

• Not for Delicate Finishes: The serrated ACR teeth provide incredible grip, but they can leave microscopic scrape marks inside the screw head. While perfect for construction and maintenance, they should not be used on exposed, decorative brass or polished stainless steel screws where a flawless cosmetic finish is required.

• Direct Chuck Insertion: The 50mm length is designed to be inserted directly into your impact driver's quick-release collet to ensure maximum downward force is transferred directly to the micro-teeth.

7. FAQ: Expert Technical Support

Q: Do the ribbed teeth wear out faster than a standard smooth bit?

A: Because they are raised micro-structures, the teeth will eventually smooth out after heavy, sustained use. However, because they are forged from S2 steel, they will outlast cheap CR-V bits by a wide margin. Once the ribs wear down, the bit will simply function as a standard, high-quality PH2 bit.

Q: Will this extract a screw that is 100% stripped and completely round?

A: No. If the screw recess is a completely smooth, hollow bowl, even the micro-teeth will not have enough surface area to bite into. For fully destroyed screws, you must step up to a dedicated reverse-thread drill extractor.

Q: Why doesn't every bit have these anti-slip ribs?

A: ACR bits are highly specialized. They are slightly more aggressive and can "chew" the inside of a soft screw if over-torqued. Many assembly lines prefer smooth bits that intentionally cam-out to prevent over-tightening. These ribbed bits are designed for professionals who need maximum, unyielding grip.
