Industrial 50mm SL1.6 Slotted Impact Bit | Heavy-Duty 8mm Flathead Power Bit

1. Problem: The "Wedge Effect" and Violent Side-Slipping

• The Problem: Driving massive slotted screws (like those on large electrical breaker panels, marine brass fittings, or heavy industrial machinery) with an 18V impact driver is notoriously risky. Standard flathead bits have a "keystone" (V-shaped) taper. As torque increases, this V-shape acts like a wedge, literally forcing the bit up and out of the screw slot. The bit violently slips sideways at high RPMs, instantly ruining the screw head and severely gouging the surrounding expensive control panel or finished wood.

• The Result: Destroyed proprietary brass screws, deep scratches on finished workpieces, and frequent operator hand injuries from the drill slipping off the fastener.

2. Cause: Tapered Grinding and Brittle Wings

• Keystone Grinding: Cheap flathead bits are simply stamped with a V-shaped taper to save manufacturing time. They only make contact with the very top edges of the screw slot, providing almost zero surface friction.

• Blade Shattering: A wide, flat blade is structurally the weakest bit design. When forged from cheap CR-V steel, the corners of the flathead blade easily snap off under the sudden hammer strikes of an impact driver.

3. Solution: Precision Hollow-Ground Parallel Flanks

• Hollow-Ground Geometry: This SL1.6 bit abandons the cheap V-shaped taper. Instead, it is "hollow-ground" via CNC milling. This means the driving faces of the blade are perfectly parallel to each other at the tip. They slide deeply into the screw slot and make 100% flush contact with the vertical walls of the fastener. This entirely eliminates the "wedge effect," allowing for massive torque transfer without the bit trying to push itself out of the hole.

• Heavy-Duty SL1.6 Proportions: Measuring 1.6mm thick and typically 8.0mm to 10.0mm wide, this is a massive, industrial-grade flathead blade designed to fill the entire slot of heavy structural bolts and electrical lugs to prevent twisting.

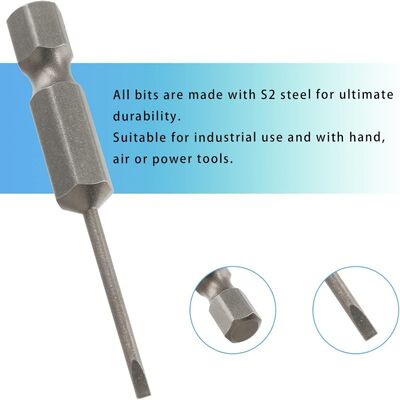

• S2 Shock-Resisting Alloy: To solve the issue of snapping corners, the entire 50mm bit is forged from premium S2 industrial tool steel and through-hardened. This gives the wide, flat blade the microscopic flexibility needed to absorb rotational impact without shattering like glass.

4. Technical Specifications

5. Professional Industry Applications

• Commercial Electrical Panels: The absolute safest bit for torquing down massive slotted lugs inside main breaker boxes and industrial switchgear without slipping and causing a short circuit.

• Marine & Restoration Hardare: Flawlessly driving heavy brass slotted screws on boats or antique structural timber hardware without marring the soft metal slots.

• Industrial Machinery Repair: Extracting seized, paint-filled flathead machine screws from factory equipment where a standard tapered bit would instantly strip the head.

6. Operation and Safety Guidelines

• The "Full-Depth" Rule: Because this bit is hollow-ground, it is designed to seat completely at the bottom of the screw slot. Ensure the slot is free of debris, paint, or rust before inserting the bit. If the bit only seats halfway, you risk snapping the blade.

• Align the Axis: Slotted bits require perfect alignment. You must keep the impact driver dead-straight and perfectly parallel to the screw slot. If you drive at an angle, the torque will be concentrated entirely on one corner of the 1.6mm blade, causing it to chip.

• Use Slower Speeds: Even with hollow-ground geometry, slotted screws are inherently prone to slipping. Do not pull the trigger to maximum RPM immediately. Feather the trigger on your impact driver and apply heavy, steady downward pressure to keep the blade locked in the slot.

7. FAQ: Expert Technical Support

Q: What does "SL1.6" actually mean? Is it 1.6mm wide?

A: No, 1.6mm would be microscopic. In international tooling standards for large flatheads, "SL1.6" indicates the thickness of the blade at the tip (1.6 millimeters). A blade this thick is typically 8.0mm to 10.0mm wide (often denoted as 1.6x8.0). It is a very heavy-duty size.

Q: Why do my other flathead bits always slide out sideways and scratch my work?

A: Most likely because they are "keystone" shaped (tapered like a wedge). As the screw resists turning, the wedge shape physically forces the bit upward. This SL1.6 bit uses a Hollow-Ground (parallel) shape to eliminate that upward force, locking it securely against the sides of the slot.

Q: Can I use this massive bit on regular household wall plate screws?

A: No. A 1.6mm thick blade is far too large for delicate electrical faceplate screws (which typically require an SL0.6 or SL0.8 thickness). Forcing this heavy-duty bit into a small screw will instantly snap the plastic faceplate or deform the screw head.
