Professional 2-Inch Flathead 3.0mm Bit | Deep-Clearance Electrical Control Bit

1. Problem: "Chamber-Wedging" and Broken Control Boards

• The Problem: Electricians and HVAC technicians frequently wire delicate European terminal blocks (like DIN rail connectors), relay switches, and printed circuit board (PCB) terminals. These tiny slotted screws are often buried deep inside narrow plastic safety channels. A standard 1/4" (6.35mm) hex bit is physically too fat to fit into the channel. If a technician forces a standard bit into the hole, the spinning hex edges scrape and shatter the plastic housing, potentially causing dangerous electrical arcing or destroying an expensive control board.

• The Result: Shattered relay housings, stripped micro-screws, and massive liability from short-circuited or physically damaged industrial control panels.

2. Cause: Standard Girth and Blunt Geometries

• The Hex Bottleneck: Standard 1/4" hex shanks maintain their full 6.35mm width all the way to the tip. They are built for strength, not for navigating 4mm wide electrical access ports.

• Oversized Blades: Using a flathead blade that is even 1mm too wide will catch the sides of the recessed plastic chamber rather than the screw, completely halting the installation.

3. Solution: Reduced-Diameter Shaft and Micro-Blade Engineering

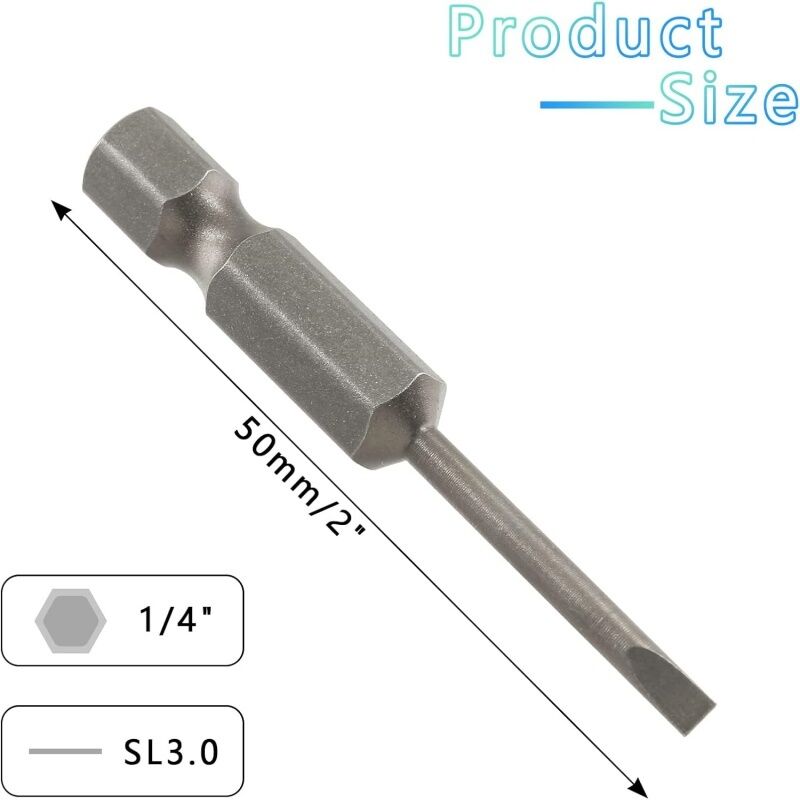

• Precision Turned-Down Shaft: The defining feature of this bit is its machined profile. Halfway down the 50mm length, the bulky 1/4" hex base terminates, dropping down into a perfectly smooth, ultra-thin cylindrical shaft. This "turned-down" neck acts as a precision probe, allowing the bit to glide effortlessly into deep, narrow electrical access ports without touching the fragile plastic sidewalls.

• SL3.0 Micro-Tolerances: The blade is exactly 3.0mm wide. This specific dimension is the international standard for low-voltage control wiring, miniature terminal blocks, and fine-tuning potentiometer screws. It fits the micro-slots perfectly without overhanging.

• High-Tensile S2 Steel: Delicate doesn’t mean weak. Because a 3.0mm blade is incredibly thin, cheap steel will instantly twist like a corkscrew. This bit is forged from through-hardened S2 industrial tool steel, giving the micro-blade the extreme torsional rigidity required to tighten copper wire terminals securely without the tip bending.

4. Technical Specifications

5. Professional Industry Applications

• Industrial Control Panels: The absolute mandatory bit for safely securing wiring inside PLC controllers, DIN-rail terminal blocks, and motor contactors.

• HVAC & Thermostat Wiring: Gliding seamlessly into recessed wall-mount housings to tighten 24V thermostat control wires and furnace circuit boards.

• Precision Electronics & IT: Adjusting delicate potentiometers, server rack micro-switches, and audio/visual equipment connections.

6. Operation and Safety Guidelines

• NEVER Use an Impact Driver: This is a precision instrument, not a structural tool. A 3.0mm wide blade will instantly snap or obliterate the tiny screw if subjected to the violent hammer strikes of an impact driver. Use only with a manual hand-driver or a precision electric screwdriver with the clutch set to the lowest torque setting.

• Perfect Alignment: Because the blade is so small, it is highly susceptible to slipping if driven at an angle. Keep the slim shaft perfectly perpendicular to the terminal block.

• Non-Insulated Warning: While designed for electrical terminal blocks, this bit is bare S2 steel and is not VDE insulated. Ensure all control panels and circuits are completely de-energized (Locked Out / Tagged Out) before performing maintenance.

7. FAQ: Expert Technical Support

Q: Why does the hex part stop halfway down the bit?

A: This is called a "turned-down" or "reduced" shaft. Many electrical screws are hidden deep inside narrow plastic tubes to prevent accidental electrocution. A full hex shaft won't fit into the tube. The smooth, narrow cylinder allows the bit to reach the bottom of the tube without cracking the plastic.

Q: Can I use this bit to unscrew standard wood screws around the house?

A: No. An SL3.0 bit is designed exclusively for micro-fasteners. Using a 3.0mm blade on a large, stubborn wood screw will apply too much torque to the tiny tip, causing the S2 steel to bend or break.

Q: Will this fit in my standard magnetic screwdriver handle?

A: Yes. The base of the bit is a universal 1/4" (6.35mm) hex shank. It will lock perfectly into any standard magnetic hand driver, giving you the feel of a traditional precision electronics screwdriver with the benefit of replaceable S2 steel bits.
