SDS Drill Bit
Created with Pixso. Bricks Walls SDS Masonry Hammer Drills Bit Milled Single Flute

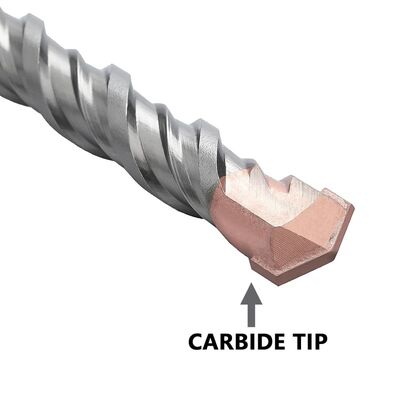

Bricks Walls SDS Masonry Hammer Drills Bit Milled Single Flute

Brand Name: XRTOOLS
Model Number: 12X160
MOQ: 100pcs
Price: $0.28-20/pc
Delivery Time: 25-30days
Payment Terms: L/C, T/T, , Western Union
Detail Information
Place of Origin:
CHINA
Certification:
ISO9000
Name:
Sds Hammer Drill
Material:
Tungsten Carbide
Size:
8mm-20mm
Shank:
SDS Hex
Body Material:
40Cr
Tip Material:
YG8C
Finish:
Sandblasted
Process:
Milled Flutes And Auto-Welded Tip
Flute:
Single & Double
Use:
Concrete, Bricks, Walls, Stones Etc
Packaging Details:
PVC bag;Plastic tube,Blister Card,Plastic Hook
Supply Ability:
50000pcs/per day
Highlight:

Bricks sds hammer drill

,

Walls sds masonry drill bit

,

Single Flute sds plus drill bit

Product Description

Bricks / Walls SDS Hammer Drills Milled Flutes With Single Flute



Description :



Hammer drills fulfill a very specific role, which is to pulverize holes in concrete, brick, marble, granite, and other similar materials.

There are mainly two types of hammer drill; the regular hammer drill and the more powerful rotary hammers.



Types:There are three variations of SDS drill bits. SDS ,SDS Plus and SDS Max drill

While all the three options have similar functions, the SDS max is not interchangeable with the other two versions due to

differences in size and shank profile.





Bricks Walls  SDS Masonry Hammer Drills Bit Milled Single Flute 0



Diversity​:



  SDS & SDS Plus SDS Max
Shank Size Ø10mm Ø18mm
Drill Size 5/32 to 1 1/8-inches(≈ 4mm to 28mm) ½” to 2-inches
(≈ 12.5mm to 50mm)
Profile Symmetric. (2 closes slots and 2 open grooves) 3 Open grooves and 2 closed slots.
PowerTool SDS and SDS plus rotary hammers SDS Max Roto hammers, Jackhammers and demolition hammers.
Uses Light Duty Applications Heavy-duty applications
1 Core bits up to 4” thin wall 2 Drilling ledger boards 3 Drill holes in brick, concrete and masonry up to 1” in diameter. 1 Core drill bits up to 6” walls 2 Concrete demolition 3 Professional demolition and construction work.



SDS  Drill Bit 0f  specifications :



Dia. Flute Length Overall Length
8.0 5/16 400 450
10.0 3/8 400 450
12.0 15/32 400 450
13.0 1/2 400 450
14.0 9/16 400 450
15.0 19/32 400 450
16.0 5/8 400 450
18.0 23/32 400 450
20.0 3/4 400 450
22.0 7/8 400 450
24.0 15/16 400 450
25.0 1 400 450
26.0 - 400 450
28.0 - 400 450
10.0 3/8 550 600
12.0 15/32 550 600
14.0 9/16 550 600
16.0 5/8 550 600
18.0 23/32 550 600
20.0 3/4 550 600
16.0 5/8 750 800
12.0 15/32 950 1000
14.0 9/16 950 1000
16.0 5/8 950 1000
18.0 23/32 950 1000
20.0 3/4 950 1000





The difference among SDS, SDS Plus, and SDS Max



Well, this can be a very broad topic. Still, I will try summing it up for easier understanding. SDS, SDS Plus, and SDS Max are three

SDS drills and drill bits. There are no major differences between an SDS and SDS plus drill; you can pretty much interchange

between them.



The real difference you have to be aware of is between an SDS plus and SDS max drill. The SDS plus drill bits are smaller and

less powerful than the SDS max drill bits.



So, when you have to do heavier duty drilling through concrete, then SDS max is the choice for you.



With a light to medium drilling on tough materials, you can rely on SDS plus. The whole thing comes down to the shaft shape

each drill type has, which creates the disparity between their strength.
