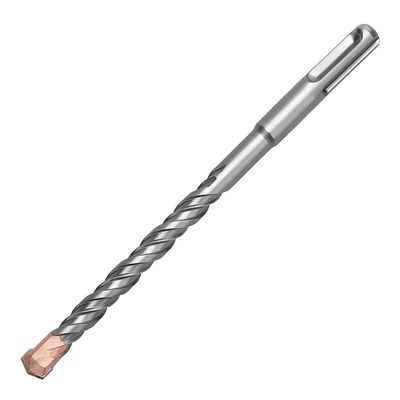

Bricks / Concrete 10mm Sds Hammer Drill Bits With Single / Double
introduction
High quality sds hammer drill bits to work in masonry applications; brick, stone, concrete, and block
SDS hammer drill bit feature 2-flute self-centering carbide tip ensuring fast cut speeds and MAXIMUM life
Our SDS drill bits haExtended life – our concrete bits optimized design allows material to quickly exit the
hole while allowing the concrete hammer drill bit to remain cool
the differences of SDS Drill Bit :
| SDS & SDS Plus | SDS Max | |
| Shank Size | Ø10mm | Ø18mm |
| Drill Size | 5/32 to 1 1/8-inches(≈ 4mm to 28mm) | ½” to 2-inches (≈ 12.5mm to 50mm) |
| Profile | Symmetric. (2 closes slots and 2 open grooves) | 3 Open grooves and 2 closed slots. |
| PowerTool | SDS and SDS plus rotary hammers | SDS Max Roto hammers, Jackhammers and demolition hammers. |
| Uses | Light Duty Applications | Heavy-duty applications |
| 1 Core bits up to 4” thin wall 2 Drilling ledger boards 3 Drill holes in brick, concrete and masonry up to 1” in diameter. | 1 Core drill bits up to 6” walls 2 Concrete demolition 3 Professional demolition and construction work. |
size:
| Dia. | Flute Length | Overall Length | |
| 8.0 | 5/16 | 400 | 450 |
| 10.0 | 3/8 | 400 | 450 |
| 12.0 | 15/32 | 400 | 450 |
| 13.0 | 1/2 | 400 | 450 |
| 14.0 | 9/16 | 400 | 450 |
| 15.0 | 19/32 | 400 | 450 |
| 16.0 | 5/8 | 400 | 450 |
| 18.0 | 23/32 | 400 | 450 |
| 20.0 | 3/4 | 400 | 450 |
| 22.0 | 7/8 | 400 | 450 |
| 24.0 | 15/16 | 400 | 450 |
| 25.0 | 1 | 400 | 450 |
| 26.0 | - | 400 | 450 |
| 28.0 | - | 400 | 450 |
| 10.0 | 3/8 | 550 | 600 |
| 12.0 | 15/32 | 550 | 600 |
| 14.0 | 9/16 | 550 | 600 |
| 16.0 | 5/8 | 550 | 600 |
| 18.0 | 23/32 | 550 | 600 |
| 20.0 | 3/4 | 550 | 600 |
| 16.0 | 5/8 | 750 | 800 |
| 12.0 | 15/32 | 950 | 1000 |
| 14.0 | 9/16 | 950 | 1000 |
| 16.0 | 5/8 | 950 | 1000 |
| 18.0 | 23/32 | 950 | 1000 |
| 20.0 | 3/4 | 950 | 1000 |
SDS bits are designed for use with a rotary hammer drill. The SDS bit is placed into the end of the drill and is
held in place by twisting the chuck of the drill, locking the bit in the collar. The SDS masonry bit is not held
solidly in the chuck of the drill but slides up and down like a piston.
