| Brand Name: | XRTOOLS |
| Model Number: | 12X350 |
| MOQ: | 100pcs |
| Price: | $0.28-20/pc |
| Delivery Time: | 25-30days |
| Payment Terms: | L/C, T/T, , Western Union |
Designed for the most demanding 10-joule+ rotary hammers, our Professional SDS Max Series is the definitive solution for large-scale infrastructure. While standard bits fail under the intense thermal stress of reinforced concrete, our Power-Drive technology ensures consistent penetration through the densest substrates.
Whether you are anchoring structural steel in Europe, drilling through frozen masonry in Russia, or navigating high-density basalt in the Middle East, these bits are engineered for zero-compromise performance.

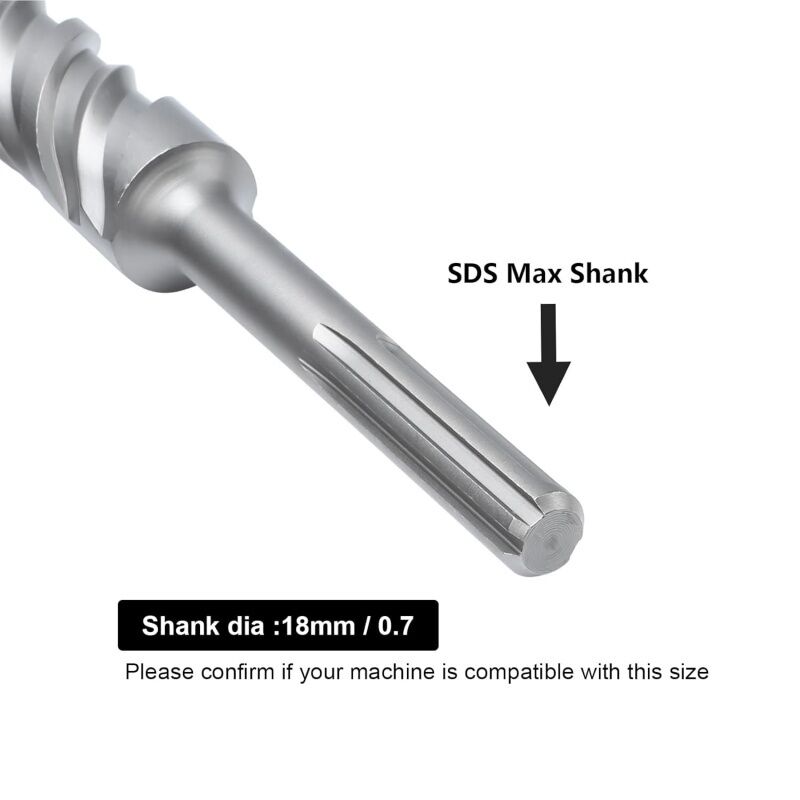

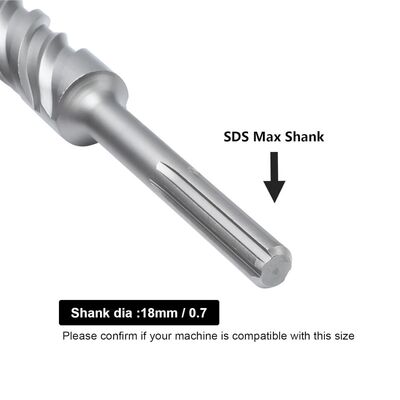

Our SDS Max range (18mm shank) is manufactured to ultra-tight tolerances to ensure a 100% circular hole, meeting the strict safety requirements for heavy-duty mechanical and chemical anchoring.
| Diameter (D) | Total Length (L1) | Flute Length (L2) | Cutter Configuration | Primary Application |
| 12.0 mm | 340 mm | 200 mm | Single / 4-Cutter | Structural Rebar Anchoring |
| 16.0 mm | 540 mm | 400 mm | 4-Cutter Cross Tip | HVAC & Conduit Access |
| 20.0 mm | 540 / 920 mm | 400 / 800 mm | 4-Cutter Cross Tip | Heavy Machinery Bases |
| 25.0 mm | 540 / 920 mm | 400 / 800 mm | Multi-Cutter Head | Infrastructure Reinforcement |
| 32.0 mm | 600 / 920 mm | 460 / 800 mm | Multi-Cutter Head | Industrial Pipe Mainlines |
| 40.0 mm | 600 / 920 mm | 460 / 800 mm | TIP2 Industrial Head | Through-Wall Demolition |
| 52.0 mm | 600 / 1000 mm | 460 / 850 mm | TIP2 Industrial Head | Large-Scale Core Access |
To match the massive impact energy of SDS Max hammers, our bits feature a Progressive Helix.
Variable Core Thickness: The core diameter increases toward the shank, providing maximum torsional stability and preventing the bit from snapping during high-torque rebar strikes.
Accelerated Dust Displacement: The flute volume expands outward, creating a vacuum effect that extracts heavy debris 40% faster than standard straight-flute bits.
Every bit is forged from premium 40Cr alloy steel and undergoes a proprietary vacuum tempering process.
Elasticity vs. Rigidity: This treatment allows the bit to flex slightly under massive vibration without fracturing—essential for deep-hole drilling (up to 1000mm).
Fatigue Resistance: Shot-peened surface treatment creates a work-hardened layer that resists the formation of stress cracks.
We utilize specialized YG8C grade carbide (HRC 89-91) joined to the body via a fully Automated Induction Welding process.
Thermal Endurance: The bond remains stable at temperatures up to 900°C, preventing tip-loss in high-friction environments.
Shock Absorption: Symmetrical head design ensures even distribution of impact forces, protecting the carbide from brittle fracturing.
Regional Optimization:
Middle East: Sand-blasted and oil-treated surface for maximum resistance to salt-air corrosion.
Russia & CIS: Engineered with low-temperature resilience to prevent brittleness in sub-zero site conditions.
Europe: Fully compliant with DIN 8039 and ISO 5468 safety standards.
B2B Customization (OEM): Precision Laser Etching for brand logos, metric/inch sizes, and localized technical markings directly on the shank.
Industrial Packaging: Heavy-duty, oil-resistant PVC tubes with reinforced caps for individual bits or custom contractor sets.
Q: Can these bits drill through rebar continuously?
A: Yes. Our 4-Cutter and Multi-Cutter designs are specifically engineered to slice through rebar without jamming, protecting the operator from sudden torque kickback.
Q: Will this fit my POWER TOOLS FOR THIS SDS Max hammer?
A: Absolutely. Our SDS Max shanks are precision-machined to international 18mm standards, ensuring a perfect fit with all professional high-joule rotary hammer brands.
Q: Do you support custom lengths for infrastructure projects?
A: We stock lengths up to 1000mm (1 meter). For bulk orders, we can manufacture custom lengths to meet specific project requirements.
