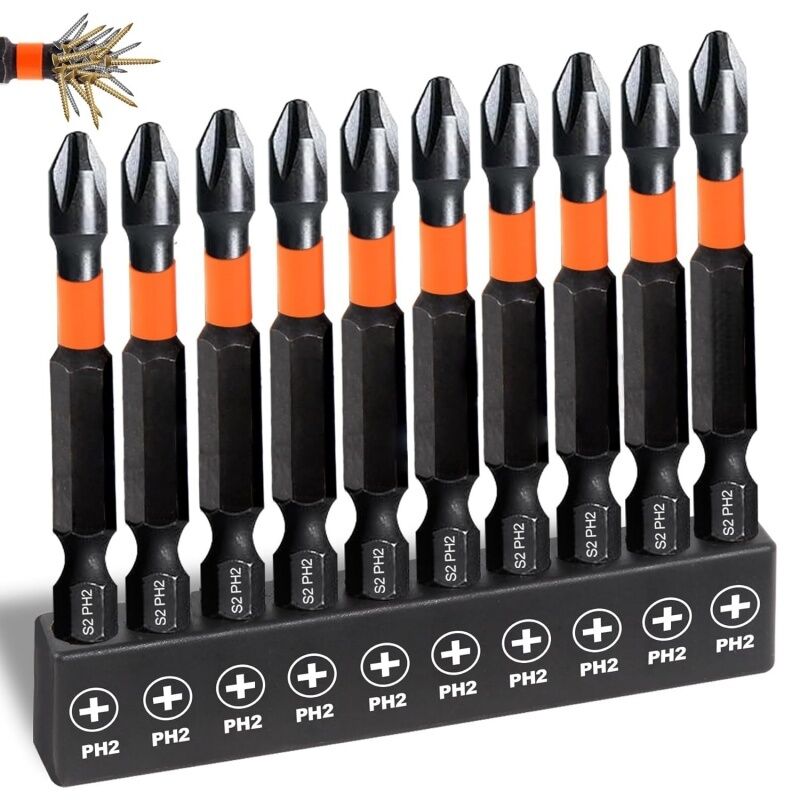

Industrial 10-Piece PH2 Impact Bit Set | 50mm S2 Steel Phillips Screwdriver Bits

1. Problem: The "Cam-Out" Effect and Stripped Fasteners

• The Problem: When drywallers or framing contractors drive hundreds of PH2 screws a day using high-torque 18V/20V impact drivers, standard Phillips bits inevitably fail. As torque increases, the bit naturally wants to push itself up and out of the screw head (a physics principle known as "cam-out"). This violent slipping instantly strips the screw head, ruins the bit tip, and causes the driver to jump and gouge the finished work surface.

• The Result: Wasted fasteners, damaged drywall paper, ruined cabinetry finishes, and massive drops in productivity due to constantly swapping out shattered or rounded-off bits.

2. Cause: Forged Tolerances and Brittle Alloys

• Sloppy Forging: Cheap bits are stamped or forged, leaving rounded, imprecise edges that do not fully engage the deep cross-recess of a PH2 screw.

• Impact Shattering: Standard Chrome-Vanadium (CR-V) bits are designed for hand tools. When subjected to the rapid, violent anvil strikes of a modern power impact driver, the brittle metal snaps.

3. Solution: CNC-Milled Precision and S2 Shock Absorption

• CNC-Milled Anti-Cam-Out Tip: Unlike stamped bits, each of these PH2 tips is precision CNC-milled. This creates sharp, exact 90-degree internal angles that lock perfectly into the screw recess. This "bite" creates maximum surface area contact, virtually eliminating cam-out and allowing the operator to drive fasteners one-handed without the bit slipping.

• Industrial S2 Tool Steel: Forged from premium S2 alloy steel and subjected to a proprietary heat-treatment process. This gives the 50mm core a specific "shock-absorbing" elasticity. Instead of snapping under the sudden torque spikes of an impact driver, the bit flexes slightly, transferring the rotational energy directly into the screw.

• 50mm High-Visibility Profile: The 2-inch (50mm) length is the absolute optimal size for impact drivers—long enough to clear the bulky chuck for better visibility, but short enough to prevent lateral twisting. The bright orange identification band allows operators to instantly spot their PH2 bits in a dark, dusty tool bag.

4. Technical Specifications

5. Professional Industry Applications

• Drywall Installation: The definitive bit for driving thousands of fine and coarse thread drywall screws precisely below the paper surface without slipping.

• Framing & Decking: Built to handle the aggressive torque required to sink heavy-duty wood screws and coated deck fasteners into dense lumber.

• HVAC & Sheet Metal: Effortlessly driving self-tapping pan head screws through galvanized steel ductwork without the tip wandering.

6. Operation and Safety Guidelines

• Downward Pressure is Key: While the CNC-milled tip reduces cam-out, the Phillips design inherently requires downward force. Always lean your body weight directly in line with the impact driver to keep the bit firmly seated at the bottom of the screw recess.

• Straight-Line Driving: Maintain a strict 90-degree angle between the impact driver and the fastener. Driving at an angle focuses all the rotational torque onto a single wing of the PH2 bit, causing it to chip prematurely.

• Retire Worn Bits: S2 steel is highly durable, but all Phillips bits eventually wear. Once you notice the bit starting to slip or "ride up" out of the screw head, discard it immediately. Continuing to use a worn bit will only result in stripped screws.

7. FAQ: Expert Technical Support

Q: Can I use this 50mm PH2 bit in a standard drill, or only an impact driver?

A: The 1/4" hex shank is a universal standard. While it is heavily optimized and heat-treated to survive the violent strikes of an impact driver, it locks perfectly into a standard 3-jaw power drill chuck as well.

Q: Why is there an orange band around the middle of the bit?

A: The orange band serves as a high-visibility identification marker. On a busy job site, contractors often carry dozens of different bits (Torx, Square, Phillips) in the same pouch. The color-coding allows you to instantly grab your primary PH2 bit without having to read the tiny laser etching.

Q: Does a 50mm bit need a magnetic bit holder?

A: No. A 50mm (2-inch) bit is designed to be inserted directly into the quick-change collet of your impact driver. If you want to use a magnetic bit holder for extra reach, you should typically use shorter 25mm (1-inch) insert bits.

Q: What is the difference between a PH2 and a PZ2 bit?

A: While they look similar, they are entirely different. PH2 (Phillips) has four simple cross-wings. PZ2 (Pozidriv) has four main wings plus four smaller secondary ribs. Using a PH2 bit in a PZ2 screw (or vice versa) will result in an improper fit and instantly strip the fastener. Always verify your screw type.
