| Brand Name: | XRTOOLS |
| Model Number: | 75mm |
| MOQ: | 500PCS |
| Price: | $0.8-12/PCS |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
The Problem: When boring 75mm (approx. 3-inch) holes in structural steel or thick-walled stainless steel enclosures, the tool is subject to extreme "impact events." If the saw hits a hard spot or if the drill is slightly tilted, the entire rotational force is concentrated on a single tooth.
The Result: In standard saws, this causes "tooth stripping" (where teeth break off in sequence) or "hub-shearing," where the saw body separates from the shank. This leads to immediate tool failure and potentially dangerous kickback for the operator.
Point-Load Concentration: Large-diameter tools have a massive perimeter. If the teeth are of uniform height and set, they all attempt to grab the material simultaneously. Any slight misalignment causes one tooth to take 100% of the torque load, exceeding its mechanical limit.
Material Brittleness: Lower-grade HSS (like 4241) lacks the molybdenum content necessary for high-impact toughness. Under the stress of an 75mm cut, these materials become brittle and shatter rather than absorbing the shock.

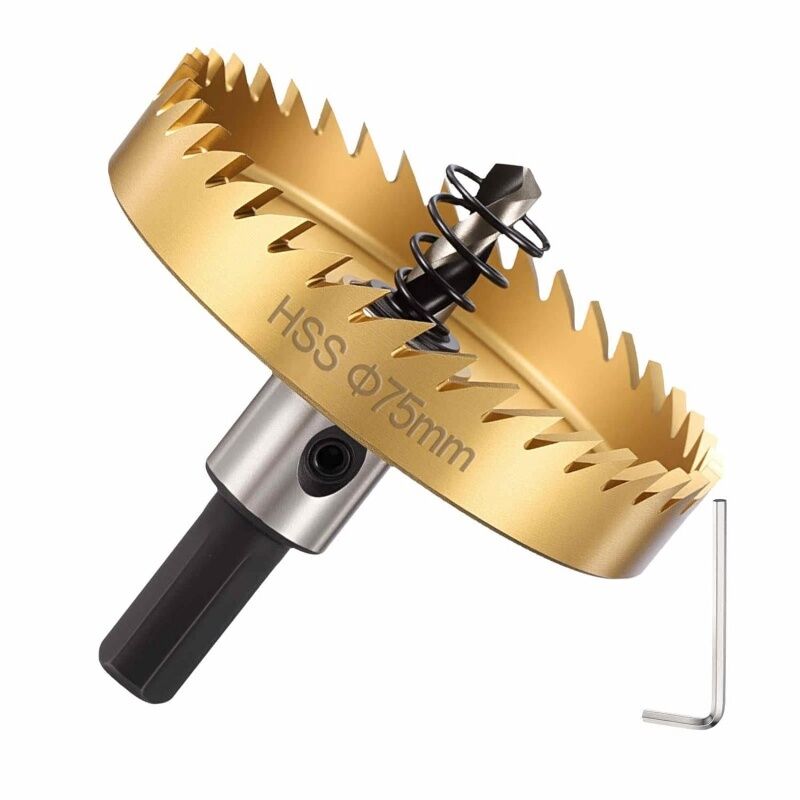

M2 Grade Shock-Resistant Core: Our 75mm Master Series is forged from premium M2 High-Speed Steel. The high Vanadium and Molybdenum content provides a "tough-hard" matrix that absorbs mechanical shocks without fracturing, maintaining a 64-66 HRC edge even under heavy impact.
Variable Pitch "DSD" Geometry: We utilize a specialized 4/6 TPI variable tooth pitch. By varying the distance between teeth, we ensure that the cutting load is distributed dynamically. This prevents harmonic resonance and ensures that no single tooth bears the full weight of the rotational torque.
Reinforced Monoblock Hub: To prevent structural failure, the 75mm series features a thickened, one-piece reinforced hub. This integrated design ensures that the transfer of power from the drill chuck to the cutting edge is linear and stable, with a Total Indicator Runout (TIR) ≤ 0.20mm.
| Technical Pillar | Specification Detail | Industrial Benefit |
| Material Grade | HSS M2 (Shock-Resistant) | Impact Toughness: Prevents tooth stripping in alloys. |
| Boring Accuracy | TIR (Runout) ≤ 0.20mm | Precision: Perfectly circular holes for 3" fittings. |
| Tooth Design | 4/6 TPI Variable Pitch | Smoothness: Eliminates chatter in large bores. |
| Shank System | 10mm Reinforced Hex Shank | Torque Transfer: Zero-slip in heavy-duty chucks. |
| Depth Control | Integrated Safety Flange | Safety: Prevents plunging into critical equipment. |
| Slug Recovery | Dual Compression Springs | Efficiency: Reliable ejection of large 75mm cores. |
Commercial MEP (Mechanical, Electrical, Plumbing): The standard size for installing large-bore electrical conduits and commercial drainage pipes in industrial facilities.
Heavy Machinery MRO: Precision boring in 1/4" mild steel plates and aluminum cast housings for industrial cooling fans and intake ports.
Infrastructure HVAC: Ideal for installing primary sensor clusters and manifold entries in heavy-gauge galvanized ductwork.
Material Versatility: Optimized for Stainless Steel (≤ 2.5mm), Cast Iron, Thick Aluminum Plate, and High-Density Polyethylene (HDPE).
Speed Management: For 75mm in mild steel, maintain 95 - 115 RPM. For 304 Stainless Steel, reduce to 70 - 85 RPM. Operating at higher speeds will lead to thermal failure of the cutting edge.
Safety Protocol: Due to the 75mm diameter, the use of a drill with a clutch and an auxiliary side handle is mandatory. The high-torque M2 teeth engage aggressively; the side handle is essential for maintaining control during breakthrough.
Q: Why does the 75mm saw feel "smoother" than smaller saws?
A: This is due to the 4/6 variable pitch geometry. By disrupting the rhythmic vibration of the cut, the tool feels more stable and requires less physical force to maintain a steady feed rate.
Q: Can I use this for 75mm holes in thick 5mm stainless steel?
A: For stainless steel thicker than 2.5mm at this diameter, we recommend our TCT (Tungsten Carbide Tipped) series. While the HSS M2 is incredibly tough, the heat generated in 5mm stainless would require a carbide-tipped solution for efficient production.
Q: How long should the pilot drill last?
A: In an industrial setting, the pilot drill should last for approximately 50-75 holes in mild steel. We recommend checking the 135° split-point regularly; a sharp pilot is the "anchor" for a successful 75mm bore.
Vacuum Hardened Integrity: Our M2 steel is vacuum-treated to ensure a uniform molecular structure across the entire 75mm perimeter.
Precision Testing: Every unit undergoes a rigorous runout and torque-stress test to ensure it meets international engineering standards for large-diameter boring.
Industrial Compliance: Manufactured for professionals who require consistent, safe, and repeatable results on commercial job sites.
