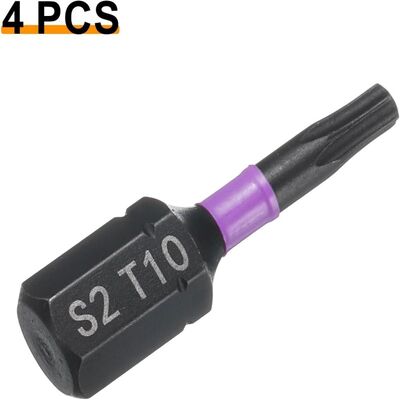

Industrial 25mm T10 Torx Bit | Cryo-Tempered S2 Steel Star Insert Bit

1. Problem: "Fatigue-Twist" in High-Volume Manufacturing

• The Problem: In small appliance manufacturing, vacuum cleaner repair depots, and automotive trim assembly, technicians drive hundreds of T10 screws per shift. While a standard T10 bit might survive a few dozen screws, the repetitive, rapid-fire torque of electric assembly drivers creates microscopic stress fractures inside the steel. Eventually, the metal suffers from "fatigue-twist"—the 6-point star lobes suddenly warp into a corkscrew shape under load, permanently ruining the bit and potentially stripping the fastener.

• The Result: Unpredictable tool failures on the assembly line, ruined plastic housing threads from warped bits, and unnecessarily high consumable replacement costs for repair depots.

2. Cause: Granular Instability and Heat-Treat Limits

• Standard Tempering Flaws: Standard heat treatment leaves microscopic inconsistencies (retained austenite) in the granular structure of the steel. Under the repetitive stress of high-volume manufacturing, these inconsistencies become weak points that lead to metal fatigue.

• The "Workhorse" Burden: Because T10 is the most common size for small structural plastics, it is subjected to vastly more operational cycles than a T8 or T15, exposing the metallurgical weaknesses of cheap CR-V and standard S2 steel rapidly.

3. Solution: Cryogenic Stabilization and S2 Core Strength

• Deep-Freeze Cryogenic Tempering: To eliminate metal fatigue, these T10 bits undergo a secondary Cryogenic Tempering process. After standard heat treatment, the bits are slowly plunged to -300°F (-184°C). This extreme cold structurally aligns the carbon matrix of the S2 steel, converting soft retained austenite into ultra-hard martensite. This massively increases the wear resistance and fatigue life of the bit, completely preventing "fatigue-twist" during thousands of repetitive driving cycles.

• High-Yield S2 Tool Steel Foundation: The cryogenic process enhances an already premium foundation. Forged from shock-resisting S2 industrial alloy, the T10 lobes are engineered to handle the sudden breakaway torque required to remove thread-locked screws from automotive trim or EDC knife pocket clips.

• Precision CNC 6-Point Lobe Geometry: To ensure maximum torque transfer without stressing the host plastic or metal housing, the star points are CNC-milled. This guarantees a perfectly snug fit that prevents "cam-out" and distributes rotational force evenly across the entire surface of the screw head.

4. Technical Specifications

5. Professional Industry Applications

• Appliance & Vacuum Repair: The absolute mandatory bit for disassembling Dyson vacuums, Keurig coffee makers, and commercial blenders, where T10 is the primary chassis fastener.

• Automotive Interiors: Essential for removing and installing delicate plastic interior trim panels, steering column cowlings, and door handle bezels.

• EDC & Knife Maintenance: The standard size for adjusting the heavy-duty pocket clips and main pivot screws on premium folding knives and multi-tools.

6. Operation and Safety Guidelines

• Use a Magnetic Bit Holder: As a 25mm insert bit, this tool requires a standard 1/4" magnetic bit holder to operate. It is not designed to be chucked directly into a power drill.

• Clutch Control is Critical: When driving T10 screws into plastic appliance housings, never use an impact driver. Use a pneumatic or electric assembly driver with a highly sensitive mechanical clutch. Set the clutch low to ensure the screw seats firmly without stripping the delicate plastic threads.

• The "T9 vs. T10" Fit Check: If the bit feels slightly loose or rattles inside the screw head, stop immediately. You are likely trying to drive a T15 screw with a T10 bit. Alternatively, if it won't seat at all, it may be a T9. Always ensure a flawless, snug fit before applying power.

7. FAQ: Expert Technical Support

Q: What exactly does "Cryo-Tempered" mean for a screwdriver bit?

A: Standard bits are just heated up and cooled down (heat-treated) to harden them. Cryo-tempering adds a step where the steel is frozen to hundreds of degrees below zero. This chemically tightens the structure of the steel, making it vastly more resistant to wearing out or twisting over time. It is a premium process usually reserved for high-end drill bits and engine parts.

Q: Can I use this T10 bit to remove "Security" screws that have a pin in the middle?

A: No. This is a solid standard T10 bit. If your appliance (like a microwave or game console) uses Tamper-Proof T10 screws, they will have a raised metal pin in the center of the star. You will need a specialized "TR10" (Torx-Resistant) bit with a hole drilled in the center to bypass that pin.

Q: Will this fit in standard multi-bit hand screwdrivers?

A: Yes. The base is the universal 1/4-inch (6.35mm) hex standard, meaning it will drop seamlessly into almost any magnetic hand screwdriver, ratcheting driver, or electric repair tool on the market.
