| Brand Name: | XRTOOLS |
| Model Number: | 3/8“-1” |
| MOQ: | 200set |
| Price: | $1.35-$45.55/PCS |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: When erecting structural steel frames, building bridges, or modifying heavy truck chassis, the pre-drilled holes in overlapping steel plates rarely align perfectly. Attempting to force a structural bolt through partially overlapping (misaligned) holes strips the bolt threads and compromises the structural integrity of the joint. Trying to fix this with a standard twist drill bit will instantly chip the fragile cutting edges of the drill, as drills are designed to cut downward, not to mill sideways.
The Result: Sheared drill bits, damaged expensive structural bolts, and massive project delays on heavy construction sites.
Drill Bit Limitations: Twist drills require a solid center point to bite into the metal. When placed in an existing offset hole, they chatter violently and snag.
Manual Filing: Manually filing heavy gauge steel to enlarge a bolt hole is incredibly labor-intensive and rarely results in a perfectly round, load-bearing hole.
Aggressive Tapered Point: These construction reamers (often called bridge reamers) feature a heavily tapered starting point. This acts as a guide probe, effortlessly entering misaligned holes. As the tool is pushed forward, the aggressive spiral flutes shear the overlapping steel away, expanding and aligning the two holes into one perfectly round, unified channel.
Tri-Flat Reduced Shank: Heavy-duty reaming generates massive rotational resistance. The larger sizes (5/8", 3/4", and 1") feature a 1/2-inch reduced shank, allowing massive cutting heads to fit into standard portable power drills. Furthermore, the shanks are precision-machined with three flat sides (Tri-Flat) to completely eliminate chuck slippage under high torque.

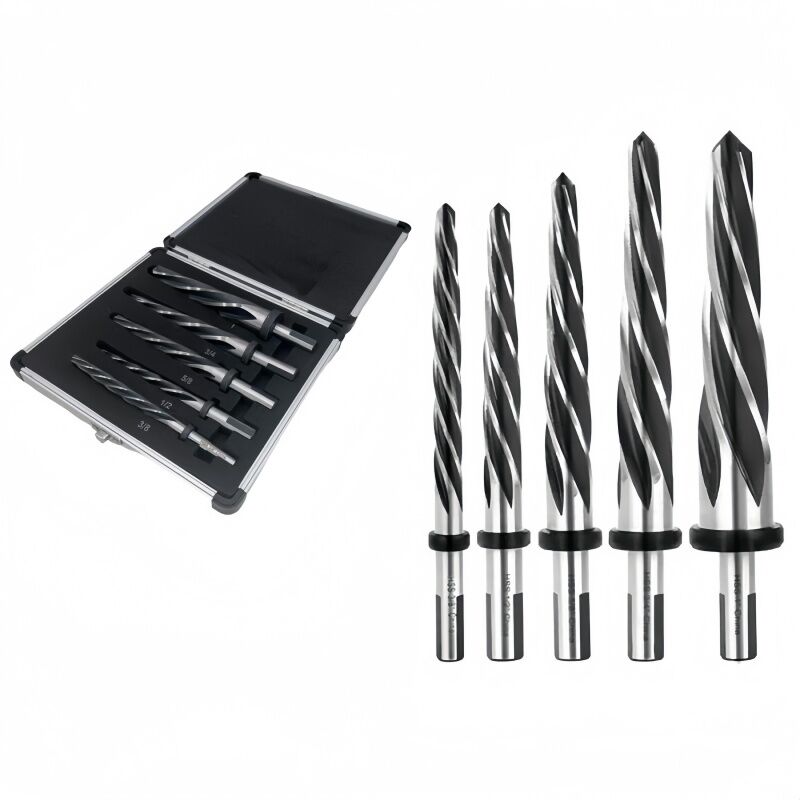

Integrated Safety Stop Collar: A unique feature of this set is the prominent black stop collar at the base of the flutes. This prevents the reamer from over-penetrating and getting permanently wedged in the hole, while also protecting the power tool chuck from striking the work surface.
Premium High-Speed Steel (HSS): Forged from industrial-grade HSS, these tools maintain their sharp cutting edges and thermal resistance even when aggressively shearing thick carbon steel and iron plates.
| Cutting Diameter | Shank Diameter | Shank Style | Overall Length (Imperial) | Overall Length (Metric) |
| 3/8" | 3/8" | Tri-Flat | 5.87" | 149mm |
| 1/2" | 1/2" | Tri-Flat | 5.94" | 151mm |
| 5/8" | 1/2" | Tri-Flat | 6.53" | 166mm |
| 3/4" | 1/2" | Tri-Flat | 7.12" | 181mm |
| 1" | 1/2" | Tri-Flat | 6.92" | 176mm |
Structural Steel Erection: The mandatory tool for ironworkers aligning overlapping holes on I-beams, structural columns, and scaffolding plates.
Heavy Automotive & Truck Repair: Expanding and aligning holes on thick truck chassis, suspension brackets, and trailer frames.
Shipbuilding & Boiler Making: Rapidly enlarging heavily rusted or misaligned rivet and bolt holes in heavy marine steel plates.
Use Low RPM & High Torque: Construction reamers are not drill bits. They are designed to shear metal smoothly. Use a heavy-duty drill set to a very low speed (RPM) and apply heavy, steady downward pressure. Using high speeds will instantly burn out the cutting edges.
Mandatory Cutting Fluid: Never ream steel dry. You must continuously apply a high-quality dark cutting oil or machining lubricant to the flutes. This drastically reduces friction, extends tool life, and ensures a smooth inner wall for the bolt.
Secure the Workpiece: Because the spiral flutes bite aggressively into the steel, the tool can generate violent rotational kickback. Ensure the steel plates are securely clamped or tack-welded before reaming, and always use a drill with an auxiliary side handle.
Q: Can I use these reamers to drill a new hole from scratch?
A: No. These are alignment and enlarging tools. They do not have a center-cutting drill tip. You must have a pre-existing hole for the tapered point of the reamer to enter.
Q: Why do the three largest sizes (5/8", 3/4", 1") all have a 1/2" shank?
A: This is a "Reduced Shank" design. Most professional hand-held power drills have a maximum chuck capacity of 1/2-inch. By turning the shanks down to 1/2-inch, it allows field workers to use massive 1-inch cutting tools without needing to haul stationary industrial drilling equipment to the job site.
Q: Does the aluminum carrying case provide any functional benefit?
A: Yes. HSS cutting edges are extremely hard, which also makes them brittle. If these heavy tools are thrown loosely into a canvas tool bag, they will clash together and chip their cutting flutes. The foam-lined aluminum case isolates each tool, ensuring they remain razor-sharp for the job site.
