Complete 3-12mm Dowel Pin Reamer Matrix | Precision Square Drive Hand Tools

1. Problem: The "Missing Size" Bottleneck and Torque Transition

• The Problem: In professional tool and die shops or heavy machinery restoration, technicians encounter a massive variety of dowel pins and shafts. A project might require a delicate 3mm pin for a trigger assembly in the morning, and a massive 12mm alignment dowel for a cast-iron engine block in the afternoon. When technicians rely on fragmented, incomplete tool collections, they inevitably face a "missing size" bottleneck that completely halts production. Furthermore, standard reamer sets fail to account for "torque transition"—the massive difference in manual force required to turn a 3mm tool versus a 12mm tool—leading to snapped small reamers or slipping large ones.

• The Result: Disrupted workflows, improvised (and inaccurate) hole finishing, and ruined workpieces from using improperly scaled manual tools.

2. Cause: Fragmented Tooling and Brittle Metallurgy

• The Piecemeal Approach: Buying individual hand reamers over time leads to critical gaps in a machinist's tool matrix, often missing the exact millimeter increment required for imported European or Russian hardware.

• Hardness vs. Toughness: Standard HSS machine reamers are too brittle for the heavy, uneven manual torque required to ream a 12mm hole by hand. They frequently chip or snap under the extreme lateral pressure exerted by a machinist pulling on a heavy T-handle wrench.

3. Solution: The Contiguous 3-12mm Matrix and 9SiCr Elasticity

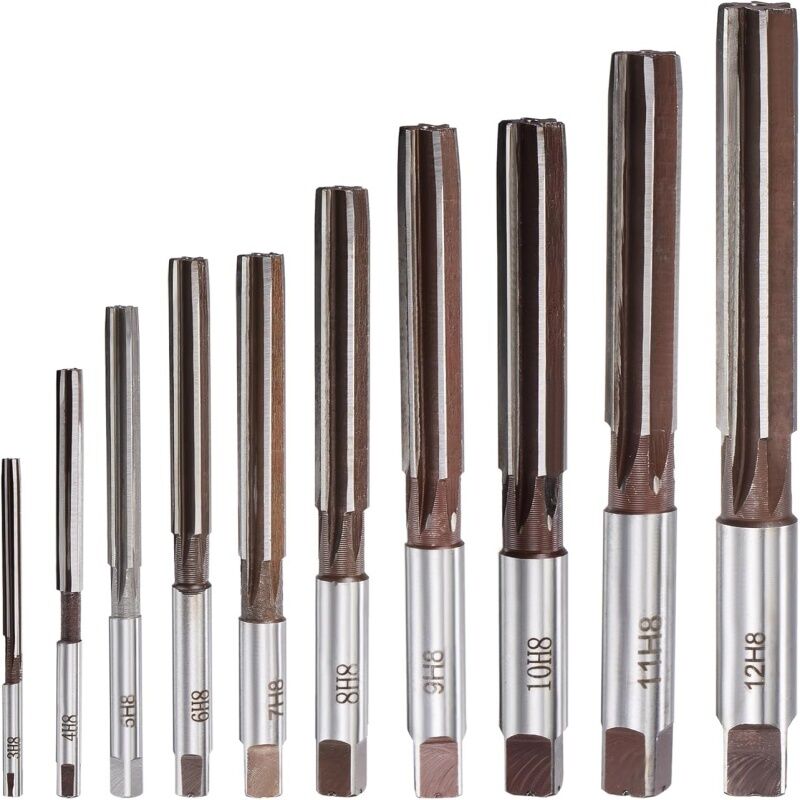

• Unbroken Master Matrix (3mm to 12mm): This 10-piece set provides a contiguous, uninterrupted progression of the most critical metric sizes (3, 4, 5, 6, 7, 8, 9, 10, 11, and 12mm). This comprehensive library ensures the machinist always has the exact, standard-compliant diameter required on the bench, completely eliminating the "missing size" downtime.

• 9SiCr (9XC) Torque-Elastic Metallurgy: Forged entirely from 9SiCr (GOST 9XC) Chromium-Silicon alloy tool steel. This is the apex metallurgy for manual cutting tools. The silicon content provides exceptional elastic toughness, allowing the heavy 10mm-12mm tools to absorb massive manual torque without snapping. Simultaneously, the chromium content ensures the delicate 3mm and 4mm tools retain a microscopic, razor-sharp edge even after hundreds of rotations in cast iron.

• Progressive Square Drive Scaling: Every shank features a precision-milled square drive that scales in exact proportion to the cutting diameter. This allows the smaller tools to fit into delicate, high-feedback tap wrenches, while the 12mm tool features a massive square drive designed to lock into heavy-duty, long-leverage wrenches without rounding off.

• Straight-Flute Tactile Control: The straight-flute geometry ensures the tool only advances when the operator intentionally pushes it. This provides the ultimate tactile feedback required for manual finishing, leaving a mirror-smooth, H7-equivalent bore.

4. Technical Specifications

(Note: Dimensions strictly conform to standard industrial hand-reamer profiles optimized for manual T-handle wrenches).

5. Professional Industry Applications

• General Machine Shop & Tool Room: The mandatory master set for creating precision slip-fits and press-fits for standard metric hardware, locating pins, and brass bearing sleeves.

• Heavy Engine Rebuilding: Essential for the manual restoration of transmission casing dowel holes, cylinder head alignment pins, and water pump mounts (utilizing the heavy 10-12mm range).

• Vintage Machinery Restoration: Providing the slow, controlled material removal required when repairing antique cast-iron lathe beds and milling machine tables without risking high-speed machine damage.

6. Operation and Safety Guidelines

• Match Your Tap Wrench Size: Do not use a massive, heavy-duty tap wrench on the 3mm or 4mm reamers; you will lose tactile feedback and snap the tool. Conversely, do not use a tiny wrench on the 12mm reamer. You must use appropriately sized, high-quality adjustable tap wrenches to ensure balanced, two-handed torque.

• No Crescent Wrenches: Never turn a hand reamer using a crescent wrench, locking pliers, or a single-sided spanner. This applies uneven, asymmetric lateral force that will cause the reamer to cut an oval-shaped hole or snap the brittle cutting edges. You must use a symmetrical T-handle wrench.

• Continuous Lubrication: Especially when utilizing the larger 10mm-12mm sizes, massive surface friction is generated. Flood the flutes with sulfurized dark cutting oil before and during the cut to flush chips and ensure a pristine finish.

7. FAQ: Expert Technical Support

Q: Can I put the 12mm reamer from this set into my power drill to save time?

A: Absolutely not. These are exclusively designated as Hand Reamers. They feature a longer starting taper and aggressive manual cutting geometries. Putting a 9SiCr hand reamer into a high-speed power drill will cause it to violently grab the metal, instantly shattering the tool and potentially causing severe injury.

Q: Why choose 9SiCr (9XC) over standard Carbon Steel for a hand tool?

A: Standard carbon steel is incredibly cheap, but it loses its sharp edge almost immediately when cutting industrial metals. 9SiCr is a specialized alloy. The addition of Chromium heavily fortifies the steel against abrasive friction wear, while the Silicon gives the core the elasticity needed to survive the twisting forces of human hands.

Q: How much smaller should my pre-drilled hole be before I use these reamers?

A: Hand reamers are finishing tools designed to shave microscopic amounts of metal. You should pre-drill your hole approximately 0.1mm to 0.2mm smaller than your final reamer size. (For example, use an 11.8mm drill bit before using the 12.0mm hand reamer).
