Precision 9SiCr Tool Steel Hand Reamers | Metalworking Alignment Set (DIN Standard)

1. Problem: The "Brittle-Edge" Dilemma in Manual Finishing

• The Problem: When custom gunsmiths, die makers, and restoration mechanics need to manually finish a dowel pin hole to an exact tolerance, they face a tooling dilemma. Standard High-Speed Steel (HSS) machine reamers are designed for high-heat, high-RPM machine operations; when turned slowly by hand, their extreme hardness makes the cutting edges brittle, often chipping when they encounter a hard spot in the metal. Conversely, cheap standard carbon steel hand reamers dull almost instantly when scraping against cast iron or tough alloys, leaving a tapered, out-of-spec hole.

• The Result: Chipped expensive tooling, ruined custom workpieces, and inconsistent hole diameters that prevent dowel pins and bearings from seating correctly.

2. Cause: Improper Metallurgy for Hand-Turning

• The Heat vs. Friction Matrix: Machine tools (like M2 HSS) are alloyed specifically to resist extreme heat. Hand reaming generates almost zero heat but relies entirely on high-friction, low-speed shearing. Using a high-heat alloy for a low-speed application often results in compromised edge stability under manual lateral torque.

• Lack of Chromium: Standard plain-carbon hand tools lack the crucial chromium required to resist the intense abrasive friction generated when shaving raw steel by hand.

3. Solution: 9SiCr (9XC) Metallurgy and Straight-Flute Control

• 9SiCr (GOST 9XC) Alloy Steel: This set is forged from specialized 9SiCr (widely recognized in Eurasian markets as 9XC). This is a premium Chromium-Silicon alloy tool steel explicitly engineered for low-speed, high-precision manual cutting tools (like taps, dies, and hand reamers). The silicon heavily increases the steel's elastic limit (preventing the tool from snapping), while the chromium provides exceptional abrasive wear resistance, allowing it to hold a microscopic, razor-sharp edge far longer than standard carbon steels.

• Controlled Straight-Flute Shearing: Engineered with straight flutes, the industry standard for manual hand reamers. Unlike spiral flutes that try to "pull" the tool into the hole, straight flutes require the operator to push the tool forward intentionally. This provides the machinist with absolute, tactile feedback and surgical control over the final finishing diameter.

• Precision Square Drive Shanks: The cylindrical shanks terminate in a precision-milled square drive. This ensures the reamers lock completely solid inside a standard adjustable tap wrench (T-handle), guaranteeing 100% torque transfer with zero rotational slippage.

• Graduated Starting Taper: The tip of each reamer features a slight lead-in taper. This allows the tool to easily center itself into an undersized pilot hole, ensuring perfectly plumb vertical alignment before the main cutting flutes engage.

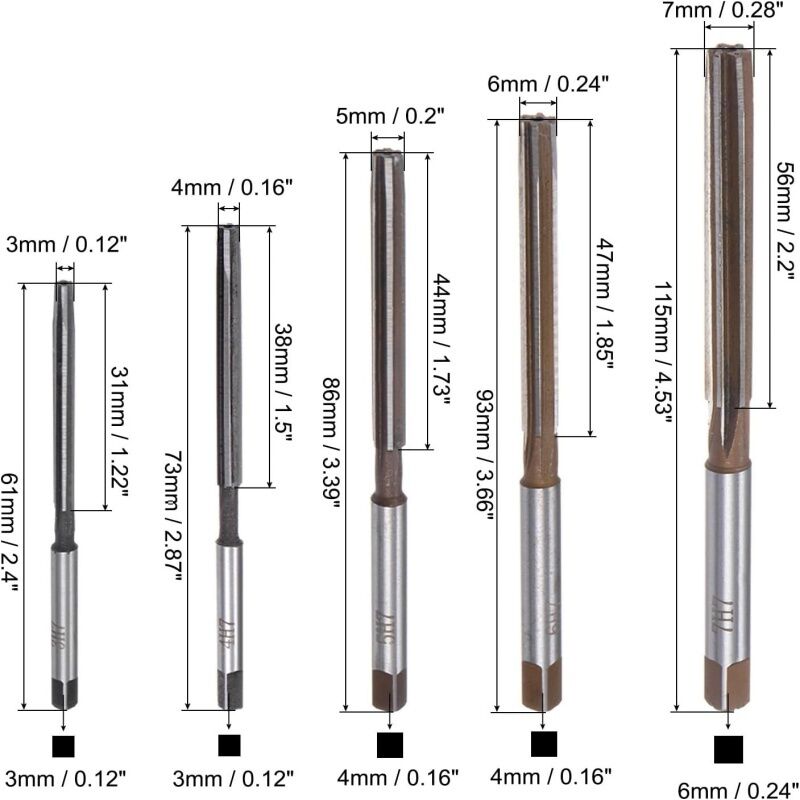

4. Technical Specifications

(Note: Material composition strictly utilizes 9SiCr / 9XC Chromium-Silicon Alloy Tool Steel).

5. Professional Industry Applications

• Tool & Die Making: The essential manual finishing set for achieving exact slip-fits and press-fits for small steel dowel pins, custom alignment jigs, and stamping dies.

• Automotive & Motorcycle Restoration: Perfect for carefully reaming out worn carburetor jets, custom throttle linkages, and bronze valve guides by hand.

• Precision Gunsmithing & EDC Assembly: Providing the surgical, chatter-free finishing required for pivot pin holes on custom folding knives, trigger assemblies, and delicate mechanical linkages.

6. Operation and Safety Guidelines

• Manual Use Only (Tap Wrench): These are Hand Reamers. They must be turned manually using an adjustable tap wrench. Never mount a 9SiCr hand reamer into a power drill, drill press, or milling machine. The aggressive geometry combined with machine RPM will cause the tool to instantly grab the metal and shatter.

• Unidirectional Clockwise Rotation: Always turn the reamer clockwise, applying light, steady downward pressure. Never turn the reamer backwards (counter-clockwise), even when extracting it from the hole. Reversing the rotation will instantly chip the fine, razor-sharp cutting edges against the metal shavings.

• Use Heavy Cutting Fluid: Hand reaming creates massive surface friction. Always coat the flutes heavily with a high-viscosity, sulfurized dark cutting oil before entering the hole to ensure a mirror-smooth internal finish and to preserve the 9SiCr cutting edges.

7. FAQ: Expert Technical Support

Q: What is the difference between 9SiCr (9XC) and standard HSS (High-Speed Steel)?

A: HSS (like M2) is designed for machine tools that get incredibly hot (High-Speed). However, it can be slightly brittle. 9SiCr is a Chromium-Silicon alloy designed specifically for low-speed manual tools. It can be sharpened to a finer edge than HSS and has superior toughness for hand-turning, making it the superior metallurgical choice for manual taps, dies, and hand reamers.

Q: Why do the 3mm and 4mm reamers both have the same 3mm square drive?

A: This is an intentional manufacturing standard to ensure compatibility with standard small-capacity tap wrenches. A 4mm reamer requires a slightly reduced square drive (3mm) so that a technician does not need to constantly switch between different sizes of hand wrenches when working on small micro-assemblies.

Q: Will this set cut through stainless steel?

A: Yes, 9SiCr has excellent hardness and wear resistance. However, stainless steel work-hardens very easily. When hand reaming stainless, you must use heavy sulfurized cutting oil and maintain a slow, completely continuous turning motion without stopping mid-cut.
