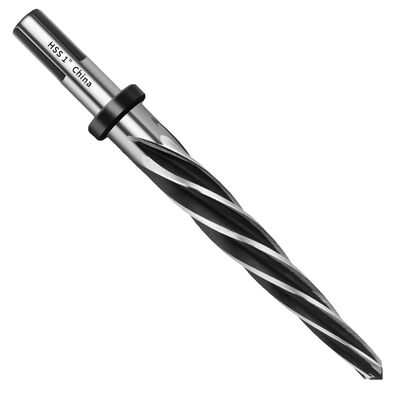

Professional 1-Inch Construction Reamer | Anti-Chatter HSS Alignment Tool

1. Problem: "Rotational Kickback" and Violent Tool Chatter

• The Problem: Enlarging a steel hole to a massive 1-inch (25.4mm) diameter requires terrifying amounts of torque. When structural ironworkers use standard large-diameter reamers, the massive cutting edges tend to "grab" the steel all at once. This causes violent tool chatter that shatters the brittle HSS flutes. Worse, if the tool binds, it transfers 100% of that rotational force directly to the power tool, resulting in aggressive kickback that can stall expensive motors or severely injure the operator's wrists.

• The Result: Broken high-cost tooling, burned-out heavy-duty drills, severe operator fatigue, and hazardous job-site conditions during high-rise steel erection.

2. Cause: Symmetrical Flute Binding and Leverage Imbalance

• Harmonic Resonance: Traditional large reamers use symmetrically spaced flutes. At a 1-inch diameter, these flutes hit the steel at the exact same time, creating a harmonic resonance (chatter) that violently shakes the tool.

• The "Bite and Bind" Effect: A massive 1-inch cutting head driven by a 1/2-inch shank creates a significant leverage differential. If the flute geometry is too aggressive, the tool bites deeper than the motor can turn, instantly wedging the tool solid in the steel plate.

3. Solution: Anti-Chatter Pitch and Core-Biased Architecture

• Harmonic-Dampened Spiral Flutes: To tame the 1-inch cutting diameter, this reamer utilizes an advanced variable-pitch spiral design. The flutes are engineered to shear the metal with a highly controlled "peeling" action rather than gouging. This breaks the harmonic resonance, completely eliminating violent chatter and ensuring a glass-smooth finish inside the 1-inch bolt hole.

• Core-Biased HSS Architecture: At this massive size, tool rigidity is everything. We increased the "web thickness" (the solid steel core at the center of the flutes) using premium 6542 M2 High-Speed Steel. This creates a hyper-rigid backbone that absorbs extreme torsional stress without snapping, even when aligning 2-inch thick overlapping bridge girders.

• 1/2" Tri-Flat Reduced Shank: Designed to deliver maximum power without slippage. The massive 1-inch head is driven by a precision 1/2-inch Tri-Flat shank, allowing it to lock securely into portable magnetic drill presses (Mag-Drills) and heavy-duty 1/2" hand drills without the chuck jaws spinning out under extreme loads.

• Stout 6.92" Profile: Unlike smaller sizes, the 1" reamer features a slightly shorter, stouter overall length (176mm). This lowers the center of gravity, keeping the tool perfectly plumb and reducing lateral flex when applying heavy downward pressure.

4. Technical Specifications

5. Professional Industry Applications

• Skyscraper & Bridge Erection: The ultimate alignment tool for inserting massive 1-inch structural bolts into primary load-bearing I-beams, bridge girders, and seismic dampers.

• Heavy Rail & Locomotive: Reaming thick steel chassis components for train carriages, railway track switches, and heavy diesel engine mounts.

• Marine & Offshore Rigs: Slicing through heavily rusted, thick overlapping bulkheads on cargo ships and offshore oil platforms.

6. Operation and Safety Guidelines

• Mag-Drill Recommended: While the 1/2" shank fits portable hand drills, expanding a hole to 1-inch in thick steel is an extreme application. We highly recommend using a Magnetic Drill Press to ensure perfectly plumb alignment and to safely manage the massive torque generated by the 1-inch cutting head.

• Two-Handed Operation Mandatory: If a Mag-Drill is unavailable and a heavy-duty portable drill must be used, the operator must use the drill's extended side-handle. The rotational kickback of a 1-inch reamer binding in steel can easily break a wrist if operated one-handed.

• Low RPM & Heavy Coolant: Operate at the lowest possible RPM (typically under 300 RPM for a 1" cut). Flood the hole continuously with high-quality machining coolant to prevent the massive M2 steel head from overheating and losing its temper.

7. FAQ: Expert Technical Support

Q: Can I use this 1-inch reamer in my standard 18V cordless drill?

A: Technically, the 1/2" shank will fit the chuck. However, standard 18V cordless drills usually lack the sustained torque required to drive a 1-inch reamer through structural steel. It will likely stall the motor or trigger the drill's thermal overload protection. You need a high-torque corded drill, a pneumatic drill, or a magnetic drill press.

Q: Why is the 1-inch reamer (6.92") shorter than the 3/4-inch reamer (7.12")?

A: Tool geometry. A 1-inch cutting head is incredibly wide and heavy. If the tool were too long, it would create a massive lever arm, causing the drill to wobble and making it nearly impossible to keep the hole perfectly straight. The slightly shorter, stouter profile maximizes stability and directs your pushing force straight down into the steel.

Q: Will this easily cut through stainless steel plates?

A: 6542 M2 HSS is capable of cutting stainless steel, but stainless work-hardens instantly if it gets hot. If you must ream stainless, you must use exceptionally slow speeds, extremely heavy pressure to ensure it keeps cutting, and constant sulfurized dark cutting oil.
