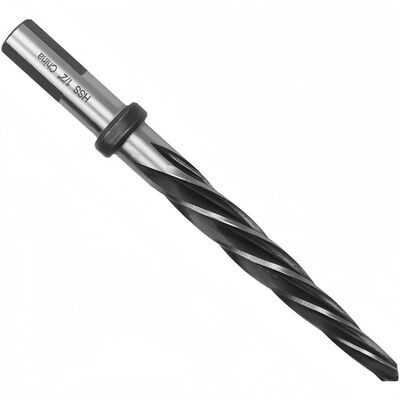

Heavy-Duty Structural Steel Reamer | 1/2" Cut with Tri-Flat Shank

1. Problem: The "Fit-Up" Bottleneck and Cross-Threaded Bolts

• The Problem: In structural steel and heavy equipment repair, the 1/2-inch bolt is a ubiquitous standard. However, when mating two steel plates together, the pre-drilled 1/2" holes rarely line up perfectly due to shifting or manufacturing tolerances. When ironworkers attempt to force a 1/2" bolt through a misaligned hole by hammering it, they destroy the bolt threads (cross-threading) and compromise the joint.

• The Result: Wasted structural bolts, severely delayed "fit-up" times, and failed safety inspections due to damaged load-bearing hardware.

2. Cause: Brute-Force Pinning and Improper Tooling

• Drift Pin Limitations: Manually hammering a tapered "drift pin" into a hole to pry the steel into alignment is physically exhausting and often temporary; the plates spring back as soon as the pin is removed.

• The Drill Bit Trap: Attempting to clear the overlapping steel with a standard 1/2" twist drill bit instantly causes violent chatter, shattering the fragile cutting edges of the drill because it is not designed to cut laterally.

3. Solution: CNC 5-Flute Geometry and Rapid Alignment

• Rapid Fit-Up Shearing: This 1/2" construction reamer acts as a powered drift pin. The aggressive tapered point guides the tool into the misaligned hole, while the CNC-machined 5-spiral flutes smoothly shear away the overlapping steel. Within seconds, it creates a perfectly aligned, true 1/2-inch cylindrical channel, allowing standard structural bolts to drop in effortlessly.

• High-Velocity 5-Flute Excretion: Engineered with 5 distinct spiral flutes, this tool provides optimal "gullet" space. This aerodynamic geometry rapidly ejects steel shavings upward and out of the hole, preventing "chip packing" and reducing internal friction.

• 6542 M2 High-Speed Steel: Forged from premium 6542 M2 HSS, offering exceptional "red hardness." This ensures the reamer maintains a razor-sharp cutting edge even when subjected to the high heat of continuous, repetitive hole alignments on a busy job site.

• 1/2" Tri-Flat Shank & Safety Collar: The base features a precision Tri-Flat shank, ensuring a 100% slip-free lock inside standard 1/2" drill chucks. It is also equipped with an integrated black Safety Stop collar, physically preventing the spinning chuck from smashing into the steel workpiece once the hole is cleared.

4. Technical Specifications

5. Professional Industry Applications

• General Steel Erection: The mandatory "Everyday Carry" (EDC) reamer for ironworkers assembling scaffolding, secondary steel framing, and commercial metal buildings.

• Automotive & Truck Frame Repair: Rapidly clearing rust and aligning overlapping mounting holes for suspension brackets, tow hitches, and heavy-duty truck chassis components.

• Agricultural Machinery: Re-aligning bent or warped steel components on tractors, combine harvesters, and heavy farm implements during field repairs.

6. Operation and Safety Guidelines

• Proper Lubrication is Mandatory: Despite the heat resistance of M2 steel, shearing structural steel generates extreme temperatures. Always apply a generous coat of dark thread-cutting oil or machining coolant to the flutes before and during the cut to maximize tool life.

• Secure the Drill: Even at 1/2-inch, a spiral reamer can grab the steel aggressively. Always maintain a firm, two-handed grip on your power drill (preferably using an auxiliary side handle) to prevent rotational kickback if the tool suddenly bites into a hard spot.

• Clear the Chips: If reaming a particularly deep or blind hole, periodically withdraw the tool slightly while it is still spinning to clear packed steel chips from the flutes, ensuring a clean and precise finish.

7. FAQ: Expert Technical Support

Q: Can I use this 1/2" reamer in my standard 18V cordless drill?

A: Yes. Because 1/2" is a medium-duty diameter and features a matching 1/2" Tri-Flat shank, it pairs perfectly with professional-grade 18V or 20V cordless drills, making it highly portable for ironworkers moving around a job site. Just ensure your drill is set to a lower speed/high-torque setting.

Q: Will this reamer make a 1/2-inch hole slightly larger than 1/2-inch?

A: No. Bridge reamers are precisely ground to match their nominal size. A 1/2" reamer will create a true 1/2" (0.500") hole. If you are using a 1/2" bolt and need "slip clearance" (a slightly looser fit), you would technically need a slightly oversized reamer (e.g., 9/16").

Q: Can I use this to enlarge a hole in a piece of wood or plastic?

A: It is not recommended. The aggressive cutting geometry is specifically designed for the density of carbon steel and iron. Using it on softer materials like wood or plastic will cause the flutes to grab aggressively, tearing the material rather than cutting it cleanly.
