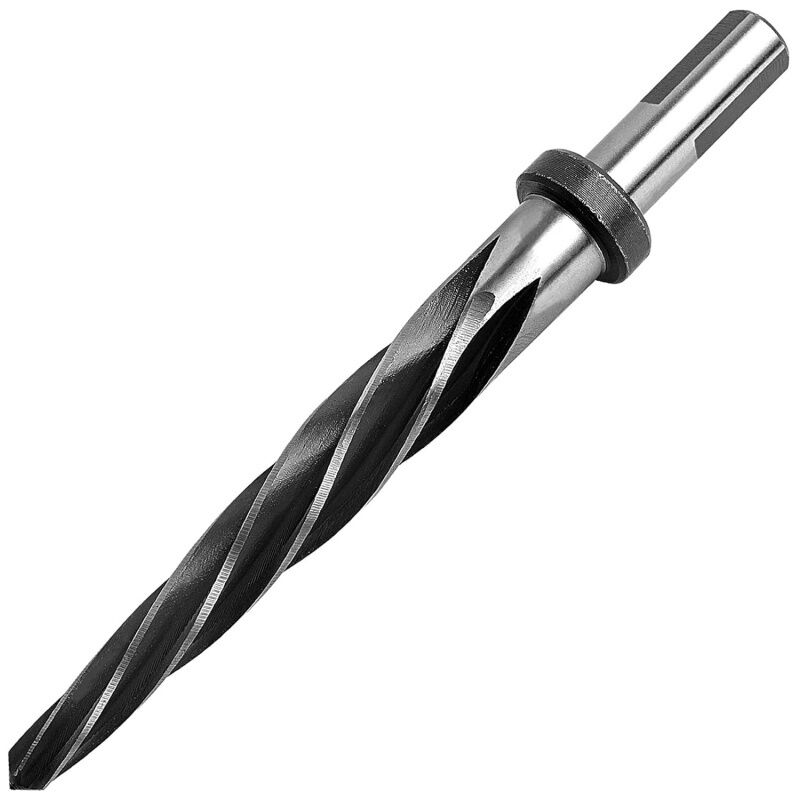

Professional 5/8-Inch Construction Reamer | High-Tensile Bolt Alignment Tool

1. Problem: "Thread-Shear" in High-Tensile Structural Joints

• The Problem: In heavy commercial construction and bridge building, 5/8-inch high-tensile structural bolts (like A325 or A490) are frequently used to create "slip-critical" joints. If the overlapping steel plates are even slightly misaligned, ironworkers often attempt to hammer the bolt through the hole. The jagged, misaligned steel plates act like a razor, shearing and flattening the threads of the bolt.

• The Result: A structurally compromised bolt that will bind up before reaching its required torque tension. This leads to failed safety inspections, weakened friction-grip joints, and thousands of dollars wasted replacing ruined heavy-duty fasteners.

2. Cause: Temporary Pinning and Jagged Tolerances

• The Drift Pin Illusion: Manually hammering a tapered "drift pin" into a misaligned 5/8" hole forces the steel into alignment temporarily. However, the steel plates remain under massive tension and often pinch the bolt as soon as the pin is removed, causing thread damage.

• Aggressive Tearing: Using a standard two-flute drill bit to widen the hole tears the metal, leaving a jagged, abrasive inner wall that acts like a file against the bolt threads during installation.

3. Solution: Thread-Safe CNC Clearance and 1/2" Reduced Shank

• Thread-Safe Flawless Clearance: This 5/8" construction reamer does not just pry steel apart; it permanently removes the overlapping obstruction. The CNC-ground 5-flute spiral geometry shears the misaligned steel plates into a perfectly smooth, true 5/8" cylindrical channel. This allows high-tensile structural bolts to drop in effortlessly, protecting the threads from any abrasive damage and ensuring accurate torque tensioning.

• 1/2" Tri-Flat Reduced Shank: While the cutting head is a massive 5/8", the tool features a precision-machined 1/2-inch reduced shank. This allows ironworkers to run a heavy structural cutting tool in standard 1/2" portable power drills. The shank is machined with three flat sides (Tri-Flat) to lock physically against the drill's chuck jaws, preventing the tool from slipping or spinning out under heavy load.

• Aggressive Guide Probe: The long, tapered starting point acts as a self-centering probe. It easily enters severely overlapping or offset plates, guiding the 5/8" cutting flutes safely into the work axis without jarring the operator.

• 6542 M2 High-Speed Steel: Forged from premium 6542 M2 HSS. The core rigidity and extreme heat resistance of this alloy ensure the flutes will not prematurely dull when shearing thick, abrasive carbon steel or rusted structural I-beams.

4. Technical Specifications

5. Professional Industry Applications

• Commercial Steel Erection: The mandatory alignment tool for securing slip-critical joints, primary I-beam splices, and heavy column base plates.

• Mining & Earthmoving Equipment: Rapidly restoring and aligning thick, battered steel mounting brackets on bulldozer blades, excavator buckets, and rock crushers.

• Rail Infrastructure: Slicing through rusted steel layers to align heavy-duty bolts in locomotive chassis, railway track switches, and bridge trusses.

6. Operation and Safety Guidelines

• Avoid High RPMs: A 5/8" cutting diameter requires significant torque and generates extreme friction. Set your drill to a low-speed, high-torque gear (under 450 RPM). Spinning the tool too fast will overheat the M2 steel and permanently destroy the cutting edges.

• Continuous Lubrication: Never run this reamer dry. You must flood the flutes with a high-viscosity dark cutting oil or machining coolant before and during the cut to maximize tool lifespan and ensure a mirror-smooth bolt hole.

• Prepare for Break-Through: When the reamer is about to clear the final layer of steel, it can suddenly catch. Always maintain a firm, two-handed grip on your drill's auxiliary side handle to counter any sudden rotational kickback.

7. FAQ: Expert Technical Support

Q: Why does the 5/8" reamer have a 1/2" shank instead of a matching 5/8" shank?

A: This is called a "reduced shank" design. The vast majority of professional portable hand drills and magnetic drill presses used on construction sites have a maximum chuck capacity of 1/2-inch. By reducing the shank to 1/2-inch, we allow field workers to use massive 5/8" structural tooling without needing to source specialized, oversized drilling equipment.

Q: Will this easily cut through hardened AR400 or AR500 steel plates?

A: Standard M2 HSS is designed for structural carbon steel, iron, and standard alloys. While it can cut through hardened AR (Abrasion Resistant) steel plates used on heavy equipment, it will dull the cutting edges extremely fast. For frequent work on AR500 plates, cobalt or carbide-tipped tooling is recommended.

Q: Can I use this reamer to remove a broken bolt?

A: No. A spiral construction reamer is strictly a hole-enlarging and alignment tool designed to cut softer structural steel. It is not an extractor and will shatter if you attempt to use it to drill into a hardened, broken grade-8 bolt.
