| Brand Name: | XRTOOLS |
| Model Number: | 1“ |
| MOQ: | 200pcs |
| Price: | $1.35-$45.55/PCS |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: In precision machining, drill chucks, live centers, and milling collets are secured inside the machine's spindle or tailstock using a Morse Taper friction fit. Over time, heavy use, trapped metal chips, or operator error can score and gall the inside of the spindle socket. When a machinist inserts a tool into a damaged socket, it won't seat fully. Under load, the tool will either suffer from severe "runout" (wobbling) or violently spin out of the taper, ruining the workpiece and potentially damaging the machine.
The Result: Scrapped aerospace parts due to tolerance failure, destroyed tool holder shanks, and costly downtime trying to diagnose a wobbling lathe tailstock.
The Friction Requirement: A Morse Taper relies entirely on perfectly mated surface area. Even a microscopic ridge of galled metal inside the socket reduces the contact area from 100% down to less than 20%, destroying the friction lock.
Improper Restoration: Attempting to clean a scored spindle with emery cloth or a generic round file destroys the critical, mathematically precise Morse taper angle, permanently ruining the machine part.

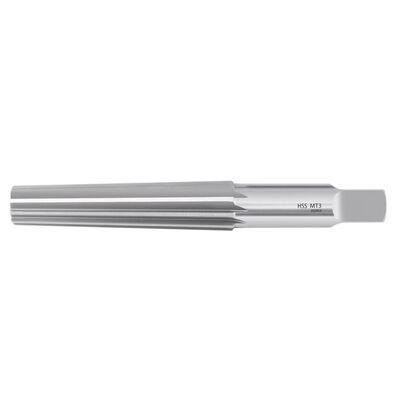

Geometric Taper Accuracy: This MT3 reamer is not just a cutting tool; it is a geometric master gauge. It is precision-ground to the exact internationally standardized Morse Taper #3 angle (approximately 1.43 degrees). By carefully hand-reaming a damaged spindle, this tool shears away the high spots and galled metal, perfectly restoring the mathematical taper required for a flawless friction lock.
Straight-Flute Finishing: Engineered with multiple straight flutes rather than spiral flutes. Straight flutes are the industry standard for manual taper restoration because they prevent the tool from "pulling" itself aggressively into the socket. They provide a controlled, scraping shear that leaves a mirror-smooth finish without altering the depth of the spindle.
Premium High-Speed Steel (HSS): Forged from industrial-grade HSS, ensuring the cutting margins remain razor-sharp and maintain their exact geometric taper even when cutting tough cast iron tailstocks or hardened steel lathe spindles.
Square Drive Shank: The shank terminates in a precision-machined square drive. This allows the reamer to be securely mounted in a standard adjustable tap wrench for the high-torque, slow-speed manual rotation required for delicate finishing work.
(Note: The following specifications are standard for industrial MT3 finishing reamers. Minor variations may exist based on the specific DIN standard used).
| Technical Pillar | Specification | Industrial Benefit |
| Tool Type | Morse Taper #3 (MT3) | Standard size for medium-to-large lathe tailstocks and drill presses. |
| Material Base | Premium High-Speed Steel (HSS) | High wear resistance for cutting hardened machine components. |
| Flute Geometry | Straight Flutes | Provides controlled shearing without aggressive pull-in. |
| Taper Angle | Approx. 1° 25' 50" (Standard MT3) | Guarantees exact mating surface for friction-locking tooling. |
| Overall Length (L1) | ~ 160mm (6.30") | Sufficient length for easy manual handling with a tap wrench. |
| Flute Length (L2) | ~ 96mm (3.78") | Covers the full engagement depth of an MT3 socket. |
| Large End Diameter | ~ 24.5mm (0.96") | Maximum cutting diameter at the top of the taper. |
| Small End Diameter | ~ 19.5mm (0.76") | Minimum cutting diameter at the tip of the tool. |
| Shank Style | Cylindrical with Square Drive | Locks securely into hand-turning wrenches. |
Machine Tool Maintenance: The essential tool for maintenance technicians restoring damaged or scored lathe tailstocks, drill press quills, and milling machine spindles.
Custom Tool Manufacturing: Used by tool and die makers to precision-ream custom extension sockets, specialized tool holders, and bespoke machine adapters.
Vintage Machinery Restoration: The safest and most accurate method for cleaning out decades of rust and pitting from the MT3 sockets of antique industrial equipment.
Strictly Manual Operation: This is a hand-finishing tool. Never insert this reamer into a power tool or attempt to turn it with machine power. It must be turned slowly by hand using a heavy tap wrench. Powered rotation will cause the reamer to grab, instantly ruining both the tool and the spindle socket.
Always Turn Clockwise: Whether you are cutting, checking the fit, or withdrawing the tool from the socket, always rotate it clockwise. Turning a reamer backward will instantly chip the fragile, razor-sharp HSS cutting edges.
Use Heavy Cutting Fluid: Taper reaming creates massive surface friction. Always coat the flutes with a high-viscosity, sulfurized dark cutting oil before use. This flushes chips and ensures the mirror-finish required for a Morse taper.
Q: Can I use this reamer to change a Morse Taper #2 (MT2) socket into an MT3 socket?
A: This is highly discouraged. A finishing reamer is designed to remove only a few thousandths of an inch of material to clean up an existing taper. It is not designed to bore out massive amounts of steel. To convert an MT2 to an MT3, the socket must first be bored or stepped-drilled close to the final dimensions before this reamer is used for the final finish.
Q: Why does the shank have a square end instead of a round one?
A: Because this is a manual cutting tool. The square end allows it to lock firmly into the jaws of a standard adjustable tap wrench (T-handle wrench). A round shank would slip inside the wrench under the heavy torque required to ream steel.
Q: If my drill chuck keeps falling out of my drill press, will this tool fix it?
A: If the chuck is falling out because the inside of the drill press socket is scratched, burred, or rusted, yes, this reamer will shave off those imperfections and restore the friction grip. However, if the arbor (the male part attached to your chuck) is heavily damaged, you will need to replace the arbor as well.
