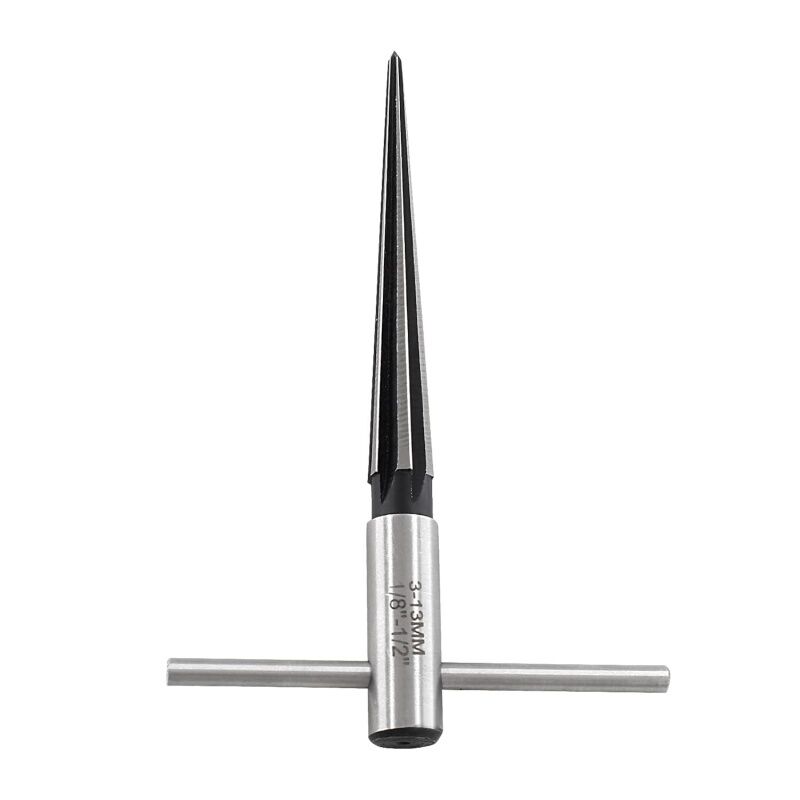

Professional 1/8" to 1/2" Tapered Hand Reamer | Integrated T-Bar Chamfering Tool

1. Problem: "Tear-Out" and Lack of Hand Leverage

• The Problem: When technicians need to slightly enlarge a pre-drilled hole in thin sheet metal, aluminum tubing, or delicate guitar headstocks, using a standard power drill will violently grab the material. This causes severe "tear-out," splintering wood, or warping thin metal. If they try to use a standard machine reamer by hand, they lack the leverage to turn it, often resorting to locking pliers which apply uneven torque and cut an oval-shaped hole.

• The Result: Mangled sheet metal, ruined expensive acoustic instruments, uneven holes that fail to hold standard tapered pins, and severe hand fatigue.

2. Cause: Improper Tool Geometry and Asymmetrical Torque

• Aggressive Drill Flutes: Standard twist drills are designed to bore straight down, not widen sideways. When forced to widen a hole, they chatter and tear.

• The Leverage Deficit: Standard cylindrical shanks are impossible to turn by hand in dense materials without a perfectly balanced, locking tap wrench.

3. Solution: Integrated T-Handle and Stepless Tapered Shearing

• Integrated High-Torque T-Handle: This tool solves the leverage problem by fusing a solid 90.7mm steel T-bar directly to the cutting head. This provides a permanent, perfectly symmetrical dual-hand grip. It allows the operator to apply massive, balanced rotational torque effortlessly, preventing the tool from tilting and ensuring a perfectly round hole.

• Stepless 3-13mm (1/8"-1/2") Expansion: The 94mm long cutting flutes feature a gradual, continuous taper from a 3mm fine point up to a 13mm heavy base. This "stepless" design allows a technician to custom-size a hole to any exact fraction of a millimeter simply by stopping the reamer at the desired depth.

• Straight-Flute Chatter-Free Geometry: The straight flutes act as precision scrapers. When turned slowly by hand, they shave away burrs and metal seamlessly without catching or pulling the tool into the workpiece.

• Premium Hardened Tool Steel: Machined from high-carbon, heat-treated tool steel. The cutting edges retain their sharpness when aggressively chamfering steel tubing, deburring copper pipes, or fitting tapered tuning pegs in dense hardwoods.

4. Technical Specifications & Product Breakdown

5. Professional Industry Applications

• Sheet Metal & HVAC Fabrication: The ultimate pocket tool for rapidly deburring drilled holes, chamfering conduit pipes, and enlarging custom panel cutouts for switches and wiring.

• Luthier & Instrument Building: The absolute standard for safely hand-reaming bridge pin holes and tuning peg mounts in delicate acoustic guitars and violins without splitting the hardwood.

• Plumbing & Pipe Fitting: Effortlessly removing internal burrs from freshly cut copper, PVC, and brass tubing to ensure a flawless seal before soldering or fitting.

6. Operation and Safety Guidelines

• Strictly Manual Operation: This tool features a fixed T-handle and is designed exclusively for human power. Attempting to modify this tool to fit into a power drill will instantly destroy the workpiece due to the aggressive taper.

• Always Rotate Clockwise: Whether you are cutting into the material or extracting the tool from the hole, always turn it clockwise. Turning it backward will cause the fragile cutting edges to drag against the metal shavings, dulling the tool instantly.

• Apply Light Pressure: The sharp straight flutes do the work. Do not push down with extreme body weight. Apply light, downward pressure while turning the T-handle smoothly to achieve a mirror-smooth chamfer or taper.

7. FAQ: Expert Technical Support

Q: Can I cut the T-handle off and put this reamer into my power drill?

A: Absolutely not. This is explicitly designed as a manual hand tool. Because it features a steep taper, putting it into a high-speed power drill will cause it to violently "grab" the metal. This will instantly rip the workpiece out of your hands, distort the hole, and shatter the brittle cutting edges. The tool relies entirely on the slow, high-torque manual control provided by the integrated T-handle.

Q: Is this tool meant for metal or wood?

A: Both. The premium hardened tool steel is tough enough to easily deburr steel tubing, enlarge aluminum sheet metal holes, and chamfer copper pipes. Simultaneously, the razor-sharp straight flutes make it the perfect woodworking tool for luthiers and carpenters who need to ream tapered peg holes in dense hardwoods without causing the grain to splinter or tear-out.

Q: What does "stepless expansion" from 3mm to 13mm actually mean for my project?

A: Unlike standard drill bits that only cut one specific size, this taper reamer is "stepless." The very tip of the tool is 3mm (1/8") wide, and it gradually widens up to a maximum of 13mm (1/2") near the handle. This means you can create a custom hole of any exact fraction of a millimeter between those two sizes simply by inserting the tool and stopping when you reach your desired diameter.

Q: I have a hole that is already 10mm. Can I use this to make it 12mm?

A: Yes. Because the taper starts at 3mm, the tool will drop freely into your existing 10mm hole until the flutes make contact with the edges. From there, you just apply downward pressure and turn the T-handle clockwise to smoothly expand the hole up to 12mm.
