XRTOOLS Anti-Pullout End Mill | 1/2" - 1" Weldon Shank Steel Milling Tool

1. Problem: "Tool Pull-Out" and Catastrophic Spindle Failure

• The Problem: In heavy-duty CNC machining, cutting tough steel alloys generates massive radial (sideways) and axial (pulling) forces. When a machinist uses a standard smooth-shank end mill in a friction-based collet (like an ER collet) for heavy roughing, the spiral flutes act like a screw. The aggressive cutting force physically pulls the end mill down and out of the collet—a phenomenon known as "Tool Pull-Out."

• The Result: The tool digs instantly deeper into the workpiece than programmed, snapping the cutter, permanently destroying expensive aerospace or automotive parts, and potentially wrecking the machine's spindle bearings due to the violent crash.

2. Cause: Friction-Only Clamping and Vibration Limit

• Collet Limitations: Standard cylindrical shanks rely 100% on the friction generated by the collet jaws. Under extreme torque or heavy vibration, friction is never enough to counteract the mechanical pulling force of a 4-flute spiral.

• Dimensional Mismatch: Using metric tooling in American job shops that operate on fractional (imperial) dimensions leads to loose tolerances and increased chatter.

3. Solution: The Weldon Flat Mechanical Lock and ANSI Precision

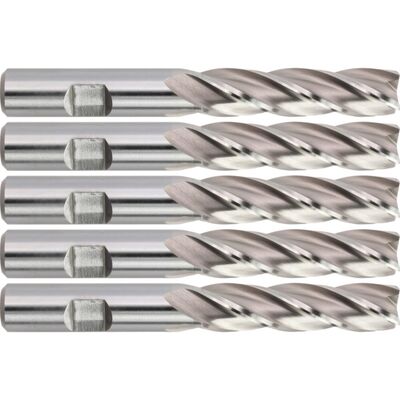

• Zero-Slip Weldon Flat: This XRTOOLS end mill is engineered with a precision-machined "Weldon Flat" on the shank. Instead of relying on friction, this flat allows the set-screw of an American standard end-mill holder to bite directly against the flat surface. This creates a 100% mechanical lock. The tool cannot spin, and it physically cannot be pulled out of the holder, allowing for fearless, aggressive heavy material removal.

• ANSI B94.19 Standard Compliance: Manufactured strictly to the American National Standards Institute (ANSI) specifications for fractional end mills. This guarantees flawless integration into US-based job shops, utilizing standard imperial dimensions (e.g., 1/2", 5/8", 3/4", 1") for both the cutting diameter and the shank.

• 4-Flute Heavy Core Architecture: Designed with four flutes to maximize the solid steel web thickness in the center of the tool. This provides the immense torsional rigidity required to prevent tool deflection (bending) when side-milling tough ferrous metals like 4140 steel or cast iron.

• Polished Bright Finish: The uncoated, razor-sharp edges reduce cutting friction and prevent material welding, making it a highly versatile tool for general-purpose machining across a wide variety of metals.

4. Technical Specifications

5. Professional Industry Applications

• North American Job Shops: The universally trusted "workhorse" tool for manual Bridgeport mills and heavy-duty CNC centers machining low-carbon steel, cast iron, and tool steels.

• Automotive & Chassis Fabrication: Profiling heavy steel brackets, squaring suspension components, and opening up structural channels with zero risk of tool pull-out.

• Oil & Gas Maintenance: Facing off heavy steel flanges and cutting deep keyways in pump shafts where aggressive material removal is required.

6. Operation and Safety Guidelines

• Mandatory Tool Holder: To utilize the safety feature of this tool, you must mount it in a dedicated End Mill Holder with a set-screw. Align the set-screw perfectly with the Weldon flat and torque it down securely. Do not attempt to mount a Weldon shank in a standard collet, as the missing material on the flat will cause uneven clamping pressure and runout.

• Profile and Side-Mill: The 4-flute design is optimized for peripheral (side) milling. Do not attempt to plunge straight down into solid steel unless you have pre-drilled a pilot hole, as the thick web center does not evacuate chips well vertically.

• Coolant Application: When machining steel with uncoated HSS, heavy application of water-soluble flood coolant or dark cutting oil is necessary to manage heat and flush chips from the cutting zone.

7. FAQ: Expert Technical Support

Q: Can I put a Weldon shank end mill into my ER collet chuck?

A: While some machinists do it, it is not recommended. An ER collet is designed to grip a perfectly round cylinder evenly. The flat spot on a Weldon shank prevents the collet from making 360-degree contact, which can introduce microscopic runout (wobble) and damage your precision collet over time. Always use a proper set-screw end mill holder.

Q: Why use High-Speed Steel (HSS) instead of Solid Carbide for American manufacturing?

A: While carbide is faster, it is extremely brittle. Many traditional American job shops still utilize heavy manual milling machines or older CNCs that lack the absolute rigidity of modern high-speed centers. HSS has far superior ductility (flexibility), meaning it will absorb the shock of an interrupted cut or manual feed without shattering like carbide would.

Q: What is the main advantage of 4 flutes over 2 flutes?

A: Rigidity and surface finish. A 2-flute tool has massive valleys for chips, but a very thin center core, making it prone to bending in hard steel. A 4-flute tool has a massive center core, which stops it from deflecting. Additionally, 4 cutting edges hit the metal per revolution, leaving a much smoother surface finish on the wall of your part.
