| Brand Name: | XRTOOLS |
| Model Number: | 20mm |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: When machining massive iron castings, heavy structural steel, or large forgings on heavy-duty manual or horizontal milling machines, the radial cutting forces are immense. If an operator uses a large-diameter straight-shank end mill in a standard collet chuck, the extreme torque can overcome the collet's clamping friction.
The Result: The tool slips, spins, or pulls out of the collet mid-cut. This instantly destroys the expensive collet chuck, ruins the heavy workpiece, and creates a severe safety hazard for the machinist.
Indirect Mounting: A straight shank relies entirely on the squeezing force of an intermediary device (the collet). It lacks a mechanical "positive drive" to physically stop it from rotating independently of the spindle.
Overhang Vulnerability: Using a collet chuck adds extra length (overhang) between the machine spindle bearings and the cutting edge. This extended leverage amplifies harmonic vibration and chatter during heavy hogging operations.

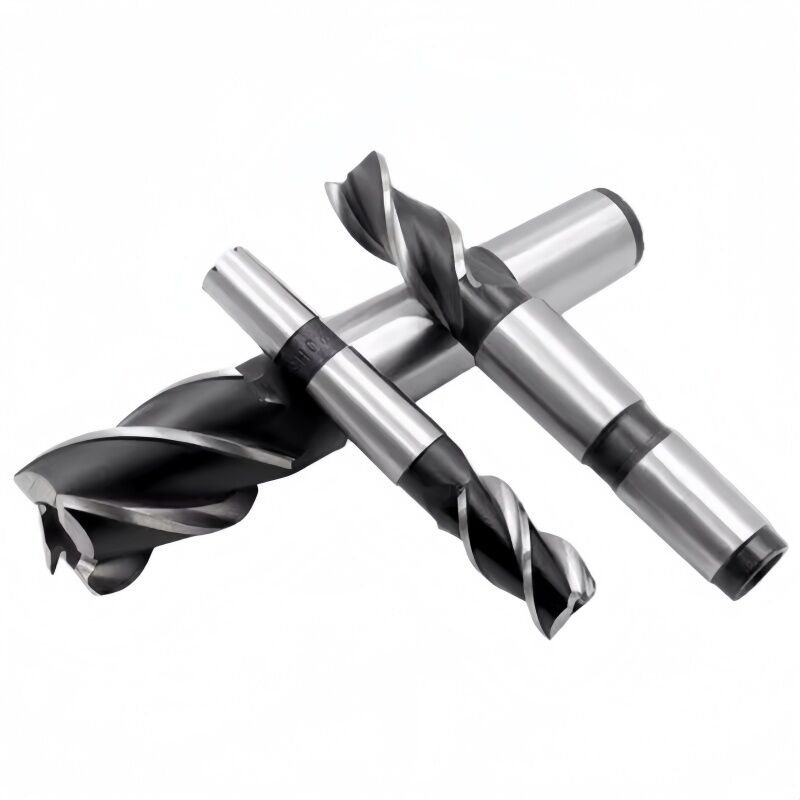

Direct Morse Taper (MT) Integration: This XRTOOLS end mill completely eliminates the need for a collet chuck. The precision-ground Morse Taper shank mounts directly into the machine's spindle. This maximizes the surface contact area, utilizing the immense locking friction of the taper itself to secure the tool.
Tanged "Positive Drive": The end of the taper features a machined flat tang. This tang slots directly into the spindle's internal drive slot, creating an unbreakable mechanical lock. The tool absolutely cannot spin, allowing for fearless, maximum-torque roughing passes.
Minimized Tool Overhang: By seating directly inside the spindle, the distance between the machine bearings and the cutting edge is drastically reduced. This maximizes absolute rigidity, completely dampening heavy harmonic chatter and prolonging the life of the machine's bearings.
Black Oxide Surface Treatment: The flutes feature an industrial black oxide (steam-tempered) finish. This porous micro-structure retains cutting oil better than bare steel, reducing cutting friction and preventing chip-welding when plowing through tough, gummy steels.
| Specification Pillar | Detail | Industrial Benefit |
| Manufacturing Standard | DIN 845 / DIN 844 (Geometry) | Certified global standard for taper shank milling cutters. |
| Shank Architecture | Morse Taper (MT / MK) with Tang | Direct spindle mounting; zero slippage under extreme torque. |
| Material Base | Premium HSS / HSSE (M35 Cobalt) | Exceptional shock absorption for heavy, interrupted cuts. |
| Flute Surface | Black Oxide (Steam Tempered) | Retains cutting fluid; prevents galling and rust. |
| Flute Configuration | Multi-Flute (Right Hand Spiral) | High core rigidity for chatter-free heavy side-milling. |
| Concentricity | Precision Ground Taper | Guarantees dead-true spinning with zero runout. |
Standard Taper Sizing Matrix (Typical Pairings):
10mm - 14mm Cutters: Morse Taper #1 (MT1)
16mm - 22mm Cutters: Morse Taper #2 (MT2)
24mm - 32mm Cutters: Morse Taper #3 (MT3)
36mm - 50mm Cutters: Morse Taper #4 (MT4)
Heavy Equipment Manufacturing: The definitive tool for squaring up massive steel plates, cutting deep keyways, and facing structural joints on mining equipment, ship engines, and locomotive chassis.
Large Forging & Casting Machining: Taking brutal, deep roughing passes to remove hard outer scale from raw cast iron blocks and heavy steel forgings.
Traditional Horizontal Boring: The required tooling for operators using large manual horizontal boring mills (HBMs) that utilize native Morse Taper spindles.
Clean the Taper: A Morse Taper relies on a flawless metal-to-metal fit. Before inserting the tool into the machine spindle, you must meticulously wipe both the tool shank and the inside of the spindle clean of any oil, chips, or dust. Even a single metal shaving can ruin the taper lock and cause runout.
Seat with a Mallet: Insert the tool into the spindle and give the bottom of the cutter a firm, sharp tap with a dead-blow or brass mallet (protecting the cutting edges with a rag) to properly seat and lock the taper.
Use a Drift Key for Removal: Never attempt to twist or pull the tool out with pliers. To remove the tool safely, insert a steel drift key into the spindle slot above the tang and tap it with a hammer to safely pop the taper loose.
Q: Why use a Taper Shank instead of a standard straight shank end mill?
A: Straight shanks are highly versatile but require a collet chuck, which limits their maximum torque. A Taper Shank is used for raw, brute-force machining. Because it mounts directly into the spindle and locks with a tang, it can handle significantly deeper cuts and higher feed rates in massive steel parts without any risk of the tool slipping.
Q: What is the purpose of the black coating on the flutes?
A: That is a Black Oxide (steam-tempered) treatment. It is not a high-tech coating like TiN; rather, it is a chemical surface conversion that creates microscopic pores in the steel. These pores act like a sponge for cutting oil, keeping the tool lubricated during deep, hot cuts and preventing rust in humid shop environments. The shank is left bright (bare steel) to ensure a perfect friction fit in the spindle.
Q: Can I put a Morse Taper end mill into my CNC milling machine?
A: Generally, no. Modern CNC machines use steep-taper tooling (like CAT40, BT40, or HSK) with pull studs for automatic tool changers. Morse Tapers are self-locking friction tapers primarily used on manual knee mills, radial arm drills, and large horizontal boring machines.
