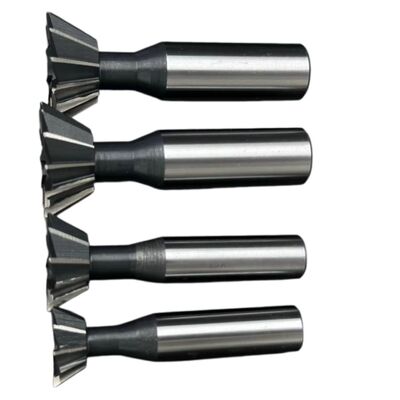

XRTOOLS Industrial Dovetail Milling Cutter | 45° & 60° DIN 1833 Standard

1. Problem: "Neck Snapping" and Poor Slide-Way Bearing Surfaces

• The Problem: Machining dovetail guideways for machine tools, jigs, and sliding fixtures requires absolute precision. Because a dovetail cutter machines an undercut, it cannot plunge; it must be driven horizontally into the material. The geometric nature of the tool means the cutting head is massive, but it is supported by a very thin "neck." When machinists use standard dovetail cutters under heavy loads, the tool suffers from extreme harmonic chatter, which leaves a terrible surface finish on the sliding way.

• The Result: A rough surface finish ruins the mating friction of the mechanical slide, and the severe lateral vibration frequently causes the thin neck of the tool to violently snap off inside the workpiece, scrapping the part.

2. Cause: Sub-Standard Neck Ratios and Asymmetrical Fluting

• The Neck-to-Head Weakness: Cheap tooling manufacturers grind deep flutes that extend too far up the shank, severely compromising the diameter of the supporting neck and creating a mechanical weak point.

• Harmonic Resonance: Standard tools often use symmetrical, straight-cut flutes that fall into a resonant vibration pattern (chatter) when the wide cutting face engages tough steel or cast iron.

3. Solution: Reinforced Neck Architecture and DIN 1833 Precision

• Reinforced Transition Neck: This XRTOOLS Dovetail Cutter is engineered with a proprietary reinforced parabolic transition between the cutting head and the cylindrical shank. By maximizing the core diameter at the weakest point, we have increased the tool's lateral shear strength by over 40%, allowing for aggressive feed rates without the fear of the tool snapping inside an expensive undercut.

• Multi-Flute Harmonic Balance: Designed with a high flute count (typically 6 to 8 flutes depending on the diameter). This ensures multiple cutting edges are engaged in the material simultaneously. This high-frequency shearing action completely dampens harmonic vibration, guaranteeing a mirror-smooth, precision bearing surface on the dovetail slide.

• Certified DIN 1833 Standard: Ground strictly to the German DIN 1833 manufacturing standard for angular milling cutters. This ensures the exact 45-degree or 60-degree included angle is mathematically flawless, guaranteeing your male and female dovetail parts will mate with zero slop or rocking.

• Premium HSSE (M35 Cobalt) Core: Forged from M35 High-Speed Steel with a 5% Cobalt matrix. The cobalt provides extreme thermal stability (red hardness), allowing the cutting margins to hold their razor-sharp angle even when buried deep inside a high-friction cast iron undercut where coolant struggles to reach.

4. Technical Specifications

Standard Metric Sizing Matrix (Custom sizes available upon request):

• 16mm Diameter: 60° Angle / 12mm Shank

• 20mm Diameter: 60° Angle / 12mm Shank

• 25mm Diameter: 60° Angle / 12mm Shank

• 32mm Diameter: 60° Angle / 16mm Shank

5. Professional Industry Applications

• Machine Tool Manufacturing: The mandatory tool for cutting female and male sliding ways on lathe beds, milling machine saddles, and heavy-duty tailstocks.

• Jig & Fixture Fabrication: Creating quick-change, high-precision interlocking dovetail mounts for custom welding fixtures and CNC workholding vises.

• Aerospace & Optical Rail Systems: Machining flawless, vibration-free sliding rails for complex optical targeting systems and aerodynamic testing rigs.

6. Operation and Safety Guidelines

• Never Plunge a Dovetail: A dovetail cutter can only cut horizontally. You must first use a standard square end mill to hog out a straight vertical slot to clear the majority of the material. Only then do you drop the dovetail cutter into the pre-machined slot and feed laterally to create the undercut angles.

• Strictly Climb Milling: When cutting the dovetail angle, always program a "climb milling" toolpath on your CNC. Conventional milling will grab the workpiece and aggressively pull the cutter, almost certainly snapping the fragile neck.

• High-Pressure Coolant Required: Because the cutting action happens deep underneath a ledge of steel, standard flood coolant often just bounces off the top of the part. You must direct high-pressure coolant nozzles directly into the slot to flush out the chips, or the tool will recut them and break.

7. FAQ: Expert Technical Support

Q: My dovetail cutter keeps breaking at the neck. What am I doing wrong?

A: 90% of neck breakages happen because the operator did not clear out enough material with a standard end mill first. The dovetail cutter should only be cutting the angled corners, not the entire slot. If it is breaking, use a wider standard end mill for your roughing pass. Additionally, ensure you are not feeding too fast; the wide cutting face generates massive pressure on that thin neck.

Q: Should I use Solid Carbide instead of HSSE Cobalt for dovetails?

A: Solid carbide holds a sharp edge longer but is incredibly brittle. Because dovetail cutting inherently causes vibration and puts massive stress on a thin neck, solid carbide dovetail cutters snap very easily if your setup is not 100% rigid. HSSE Cobalt provides the necessary ductility (flexibility) to absorb those vibrations, making it the safer, more reliable choice for heavy undercutting.

Q: Are these cutters measured by the top diameter or the bottom diameter?

A: Dovetail cutters are specified by their maximum cutting diameter (the widest part of the angled head at the bottom of the tool). Always consult the engineering blueprint to ensure the maximum diameter of the tool matches the required width of the bottom of the dovetail slot.
