| Brand Name: | XRTOOLS |
| Model Number: | 5/8 |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: In busy American machine shops, efficiency is everything. When creating closed pockets or deep slots, machinists often have to load a drill bit to create a starter hole, stop the machine, and then swap to a standard 4-flute end mill to finish the walls. This "pre-drill bottleneck" doubles setup time. Furthermore, when milling abrasive materials like cast iron, high-silicon aluminum, or tough forgings, standard uncoated or TiN-coated tools suffer from rapid abrasive wear, rounding off the cutting edges and ruining the tool in a single shift.
The Result: Wasted machine time from constant tool changeovers, high tooling replacement costs, and out-of-tolerance parts due to premature edge dulling.
Non-Center-Cutting Flutes: Many standard 4-flute end mills have a "dead center" (a gap with no cutting edge at the bottom). If an operator attempts to plunge straight down, the dead center simply crushes against the steel, instantly snapping the tool.
Abrasive Micro-Chipping: Tough cast metals contain microscopic impurities that act like sandpaper. Standard HSS cannot withstand this abrasive environment without advanced surface shielding.

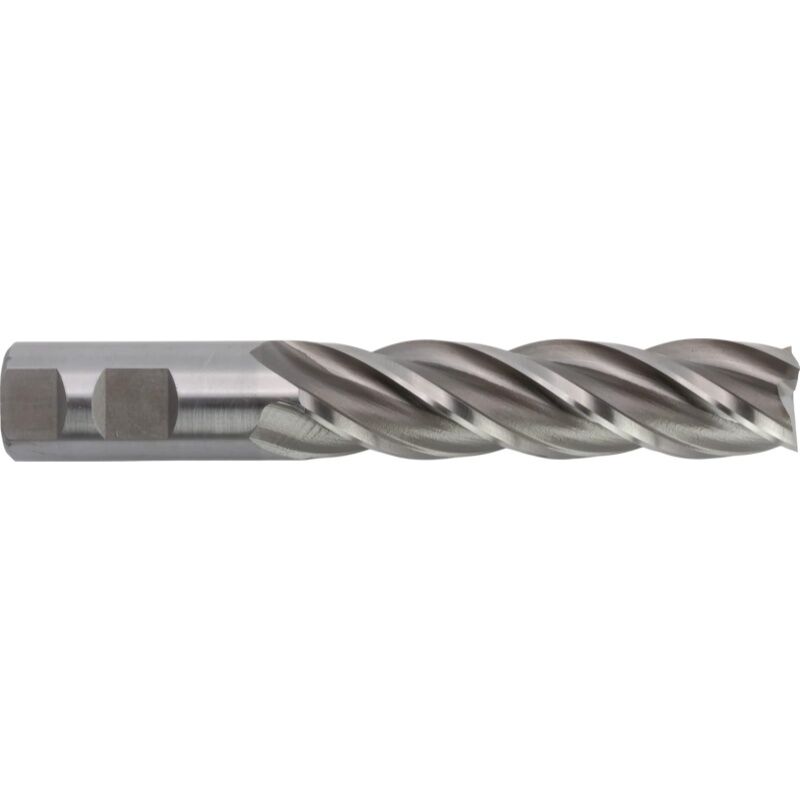

Drill-and-Mill Center-Cutting Geometry: This XRTOOLS end mill is engineered with true Center-Cutting geometry. One or more cutting edges extend completely to the center of the tool's axis. This allows the machinist to plunge straight down into solid metal like a drill bit, and immediately transition into lateral profiling (side-milling). It eliminates the need for pilot holes, condensing a two-tool operation into a single, seamless CNC toolpath.
TiCN (Titanium Carbonitride) Coating: To combat extreme abrasive wear, this tool is armored with a premium blue-grey TiCN PVD coating. TiCN is significantly harder than standard gold TiN and features a lower coefficient of friction. This makes it the ultimate surface armor for milling highly abrasive materials like cast iron, brass, and tough alloy steels, effectively doubling the tool's lifespan.
HSSE-M35 Cobalt Substrate: Forged from M35 High-Speed Steel containing 5% Cobalt. This core provides superior "red hardness" (thermal stability) while maintaining the ductility needed to absorb the shock of plunge-cutting without shattering.
ANSI B94.19 Compliance: Manufactured strictly to American National Standards Institute specifications for fractional inches, ensuring flawless integration with standard imperial collets and tool holders used across North American manufacturing facilities.
| Specification Pillar | Detail | Industrial Benefit |
| Manufacturing Standard | ANSI B94.19 | Certified American standard for fractional dimensional accuracy. |
| End Geometry | Center-Cutting | Allows direct vertical plunging without a pre-drilled pilot hole. |
| Surface Armor | TiCN Coating | Extreme surface hardness; thrives in abrasive metal cutting. |
| Material Base | Premium HSSE (M35 Cobalt) | High thermal stability for continuous, aggressive milling. |
| Flute Configuration | 4-Flute (Right Hand Spiral) | High-frequency cutting for mirror-smooth vertical walls. |
| Measurement System | Imperial (Fractional) | Native integration for US-based blueprints and CNC programming. |
Automotive Engine Rebuilding: The ultimate tool for milling abrasive cast iron engine blocks, cylinder heads, and custom manifold porting.
Aerospace & Defense: Efficiently creating blind pockets and slots in tough alloy components without wasting time on pilot hole operations.
General Job Shops: A highly versatile "Swiss Army Knife" cutter that can plunge, slot, and profile on both manual knee mills and modern CNC machining centers.
Plunge at a Reduced Feed Rate: While this tool can plunge straight down, a 4-flute end mill has less chip-clearing space than a drill bit. When plunging vertically, reduce your feed rate (Z-axis plunge rate) by 50% to allow the chips to evacuate safely before beginning your lateral cut.
Ramping is Highly Recommended: For optimal tool life when entering a solid pocket, use a "helical ramp" or zigzag toolpath. Entering the material at a slight 2-to-3-degree angle utilizes the center-cutting geometry while simultaneously clearing chips efficiently.
Leverage the TiCN Coating: TiCN performs exceptionally well with continuous lubrication. Flood the cutting zone with high-quality water-soluble coolant to maximize the life of the coating and flush out abrasive cast iron dust.
Q: How do I know if my current end mill is "Center-Cutting"?
A: Look at the bottom face of the tool. On a non-center-cutting end mill, there is a distinct, small hole or gap right in the middle where the flutes stop. On a center-cutting end mill (like this XRTOOLS model), at least one or two cutting edges meet exactly in the dead center, allowing it to cut all the way through the material beneath it.
Q: Why choose TiCN (Blue-Grey) instead of the standard TiN (Gold) coating?
A: TiN is a great general-purpose coating. However, TiCN has carbon added to the titanium nitride matrix. This makes it roughly 30% harder than TiN and gives it a lower friction coefficient. If you are cutting cast iron, abrasive alloys, or running at higher surface speeds, TiCN will maintain a sharp edge significantly longer.
Q: Does this ANSI standard tool use a Weldon flat or a smooth shank?
A: This specific series utilizes a precision smooth cylindrical shank, making it universally compatible with high-accuracy ER collets, TG collets, and shrink-fit tool holders where 360-degree concentricity is the top priority for fine finishing.
