| Brand Name: | XRTOOLS |
| Model Number: | 1-1/2 |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: When machinists need to take incredibly light, precise finishing passes on materials like brass, copper, engineering plastics, or mild steel, they often find that standard coated tools leave a "fuzzy," torn, or smeared surface finish. Because the cut is so light, the tool generates very little heat. Using a high-heat coated tool in a low-heat application actually causes the material to fold and tear rather than shear cleanly, destroying the final dimensional tolerance of the workpiece.
The Result: Scrapped prototypes, failed visual inspections, and hours wasted trying to manually polish or sand out tool marks from the walls of a machined cavity.
The Coating Trade-off: PVD coatings (like TiN or TiAlN) are applied at a microscopic thickness over the cutting edge. While this adds heat resistance, it inherently "rounds off" the surgical sharpness of the raw steel.
Surface Texture: Coatings introduce a microscopic texture to the tool's flutes. In softer or "gummy" materials, this texture creates friction (drag), causing the material to smear against the walls rather than ejecting cleanly.

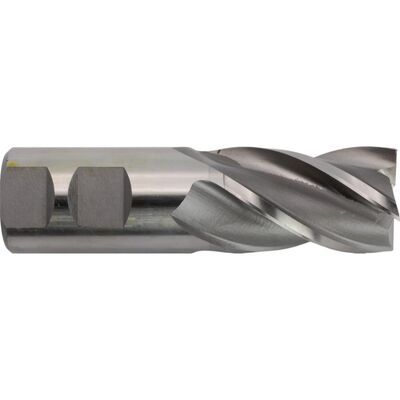

Surgical Bright Finish (Uncoated): This XRTOOLS end mill completely bypasses the coating process. The flutes and cutting margins are highly polished to a "Bright Finish." This preserves the absolute maximum edge acuteness (surgical sharpness) of the raw steel. It slices through brass, plastics, and mild steels with zero drag, eliminating smearing and leaving a flawless, glass-like finish on the workpiece walls.
4-Flute Harmonic Balance: While 2-flute tools are great for digging deep pockets, they tend to vibrate. The 4-flute geometry on this finishing tool provides four continuous points of contact. This maximizes harmonic stability, completely eliminating chatter marks during peripheral (side) milling and profiling operations.
Premium HSSE (Cobalt) Core: Forged from Cobalt-enriched High-Speed Steel. Even without a coating, the cobalt matrix provides exceptional natural wear resistance and edge retention, ensuring the tool remains razor-sharp through long finishing cycles.
ANSI B94.19 Dimensional Standard: Manufactured strictly to the American National Standards Institute specifications. The fractional imperial sizing ensures a perfect, universally compliant fit for US-based job shops utilizing standard R8, ER, or TG collet systems.
| Specification Pillar | Detail | Industrial Benefit |
| Manufacturing Standard | ANSI B94.19 | Certified American standard for fractional milling cutters. |
| Surface Finish | Bright Finish (Polished) | Maximum edge sharpness; zero coating drag or galling. |
| Flute Configuration | 4-Flute (Peripheral Focus) | High-frequency shearing prevents chatter on vertical walls. |
| Material Base | Premium HSSE (Cobalt) | High ductility and natural wear resistance for finishing. |
| Shank Style | Straight Cylindrical | Perfect 360-degree concentricity for precision collet chucks. |
| Measurement System | Imperial (Fractional) | Native integration for North American CNC and manual mills. |
Precision Prototyping: The ultimate tool for achieving flawless aesthetic finishes on brass instrumentation panels, copper heat sinks, and acrylic display components.
General Job Shop Finishing: Taking the final 0.005" to 0.010" finishing pass on mild steel brackets and low-carbon structural components to hit strict blueprint tolerances.
Manual Milling (Bridgeport): An exceptionally forgiving and sharp general-purpose tool for machinists running conventional knee mills where high RPMs are not achievable.
Climb Milling for the Perfect Finish: To fully leverage the razor-sharp Bright Finish, utilize a "climb milling" toolpath on your CNC. This allows the cutting edge to take a thick chip at the beginning of the cut that tapers to zero, carrying the heat away in the chip and leaving a pristine wall.
Optimize for Finishing, Not Heavy Roughing: Because this tool lacks a high-heat coating, it is not designed to bury deep into tough alloys or plunge aggressively. Use it for profiling, side-milling, and precise dimensional finishing passes.
Continuous Lubrication: Uncoated tools rely on external lubrication to manage friction. Always flood the cutting zone with high-quality water-soluble coolant or dark cutting oil to flush fine chips and preserve the surgical edge.
Q: I have a 2-Flute Bright Finish end mill. Do I really need this 4-Flute version?
A: Yes, they serve two completely different purposes. Your 2-flute bright finish tool is a "rougher" for aluminum—it has massive valleys to dig out huge, stringy chips quickly. This 4-flute bright finish tool is a "finisher." It has less chip room but twice the cutting edges, making it the perfect tool to run after your 2-flute to smooth out the walls and hit your final, perfect dimension without chatter.
Q: Can I use this uncoated tool on harder steels like stainless or 4140?
A: While the Cobalt core is physically tough enough to cut hard steels, the uncoated cutting edge will dull very rapidly due to the extreme heat generated by those alloys. For hard, abrasive steels, you should always select our TiAlN or TiCN coated 4-flute end mills. Save this Bright Finish tool for softer metals, brass, and plastics.
Q: Does the "Bright Finish" prevent rusting in my toolbox?
A: The polishing process makes the steel slightly more resistant to ambient moisture than a rough-ground tool, but it is still raw tool steel. To prevent surface rust in a humid shop environment, always wipe the tool down with a light coating of machine oil before storing it back in its protective tube.
