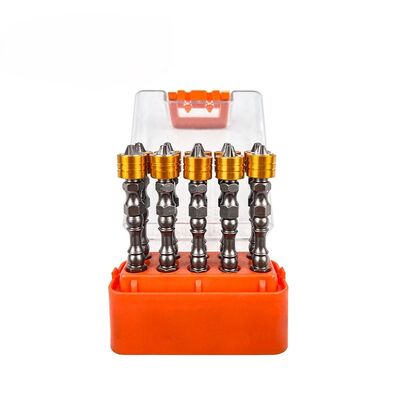

Heavy-Duty Drywall & Framing Bit Set | 65mm Magnetic Depth-Stop Screwdriver Bits

1. Problem: Gravity Drops and Drywall "Blowouts"

• The Problem: When a contractor is working 10 feet up on a ladder, driving screws overhead into a ceiling joist, gravity is the enemy. Standard magnetized bits are too weak to hold a heavy 3-inch screw horizontally or vertically; the screw wobbles, falls, and the contractor loses their rhythm. Furthermore, when hanging drywall, a standard bit will easily drive the screw too deep, tearing the delicate paper face and ruining the structural integrity of the drywall sheet (a "blowout").

• The Result: Dropped fasteners, compromised drywall installations requiring tedious patching, and massive time loss constantly climbing down ladders to retrieve dropped screws or swap worn-out bits.

2. Cause: Internal Magnetism Limits and Single-Sided Wear

• Weak Internal Magnetism: S2 steel can only hold a mild magnetic charge. It is insufficient to overcome the leverage of a long, heavy structural screw.

• Lack of Physical Barriers: A standard bit has no mechanical stop, relying entirely on the operator's trigger control to stop the screw flush with the surface.

3. Solution: Active Magnetic Catch Ring and Reversible Design

• High-Gauss Neodymium Collar: The defining feature is the gold-anodized aluminum collar housing a powerful Neodymium magnet. Unlike standard bits, this ring physically slides over the head of the screw, capturing it in a massive magnetic field. It locks the fastener dead-straight, defying gravity and allowing for flawless one-handed driving at extreme, awkward angles.

• Integrated Drywall Depth-Stop: The magnetic collar serves a critical secondary function for drywallers. As the screw sinks flush into the drywall, the wide aluminum ring contacts the paper surface, physically preventing the impact driver from pushing the screw any deeper and eliminating paper tear-out.

• Double-Ended (PH2 / PH2) Efficiency: To maximize job-site productivity, both ends of the 65mm bit are CNC-milled PH2 tips. When one end eventually wears down from high-volume driving, you simply pull off the magnetic collar, flip the bit around, replace the collar, and instantly have a brand-new driving tip without walking back to your toolbox.

4. Technical Specifications

5. Professional Industry Applications

• Production Drywalling: The magnetic ring acts as an impromptu dimpler/depth-stop, ensuring thousands of drywall screws are set perfectly just below the paper surface.

• Overhead HVAC & Framing: The absolute best solution for one-handed fastening on ladders, securely holding heavy self-tapping screws and wood screws without dropping them.

• Cabinet Installation: Confidently holding screws horizontally to join heavy cabinet carcasses where you cannot physically reach your second hand in to support the fastener.

6. Operation and Safety Guidelines

• Cleaning the Magnet: Neodymium magnets are incredibly strong and will attract microscopic metal shavings on a job site. If the ring fills with metal dust, the screw head cannot seat properly. Wipe the gold ring out periodically with a rag or a blast of compressed air.

• Removing the Ring: The magnetic collar is held on by friction and is completely removable. To use the other end of the PH2 bit, firmly grasp the gold ring, pull it straight off the shaft, flip the bit in your chuck, and slide the ring back onto the fresh end.

• Not for Deep Recesses: Because the magnetic ring is wider than the bit shaft, this specific tool cannot be used to drive screws deep into narrow counter-sunk holes or pocket-hole jigs (like Kreg jigs). It is designed for surface-level fastening.

7. FAQ: Expert Technical Support

Q: Can I use this bit without the gold magnetic ring?

A: Yes. The magnetic ring is fully removable. If you need to drive a screw into a narrow recess where the ring won't fit, simply pull the collar off and use it as a standard double-ended 65mm PH2 bit.

Q: Will the magnetic ring scratch my finished woodwork?

A: The face of the ring is smooth aluminum, but if it is spinning at high RPMs against finished wood, it can leave a burnishing mark. When working on high-end cabinetry, ease off the trigger just before the ring touches the wood, or remove the ring entirely for the final tightening.

Q: Why choose a 65mm length instead of 50mm?

A: A 50mm bit with a magnetic ring leaves very little shaft exposed, making it difficult to grip and remove from your impact driver chuck. The 65mm (2.56") length gives you enough extra steel to easily pull the bit out of your tool, even while wearing heavy work gloves.
