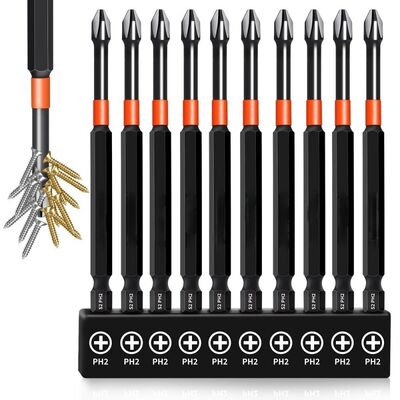

Heavy-Duty 4-Inch Phillips #2 Power Bits | Deep-Clearance Impact Driver Set

1. Problem: Chuck Interference and Blind-Hole Drops

• The Problem: When electricians wire deep junction boxes, or carpenters assemble cabinetry using recessed pocket holes, standard 2-inch (50mm) bits are too short. The bulky chuck of the impact driver crashes into the workpiece, scratching finished wood or preventing the screw from being driven straight. Furthermore, reaching into a narrow, 4-inch deep channel means you cannot use your fingers to hold the screw on the bit, resulting in dropped fasteners inside walls or engine bays.

• The Result: Scratched luxury cabinetry, stripped screws due to driving at severe angles, and massive frustration trying to retrieve dropped fasteners from confined spaces.

2. Cause: Insufficient Stand-Off and Weak Retention

• Chuck Obstruction: Short bits place the wide, spinning metal collar of the power tool within an inch of the work surface, eliminating clearance in tight 90-degree corners.

• Gravity and Vibration: Without a high-gauss magnetic field, heavy wood screws easily vibrate off the bit tip the moment the impact driver trigger is pulled in a horizontal or downward position.

3. Solution: 100mm Clearance, Torsion Flex, and Magnetic Grip

• 100mm (4-Inch) Surgical Clearance: The extended 100mm length provides massive "stand-off" distance. It acts as an integrated extension, allowing the slim bit shaft to reach deep into narrow channels, electrical boxes, and tight engine compartments while keeping the bulky drill chuck safely away from the finished surface.

• High-Strength Magnetic Retention: The CNC-milled PH2 tip is heavily magnetized. It provides an aggressive grip on steel fasteners, securely holding long, heavy screws horizontally or even upside down. This enables flawless one-handed driving in blind holes where you cannot reach with your other hand.

• Elongated S2 Torsion Zone: Forged from premium S2 industrial steel, the extended length of this bit naturally acts as a mechanical torsion spring. When a 20V impact driver delivers a violent torque spike, the 100mm shaft twists slightly, absorbing the kinetic energy. This prevents the torque from transferring entirely to the tip, drastically reducing the chance of the bit shattering or stripping the screw.

4. Technical Specifications

5. Professional Industry Applications

• Cabinetry & Woodworking: The absolute best choice for driving screws deep into Kreg jigs, pocket holes, and recessed cabinet framing without the drill chuck marring the wood.

• Electrical & HVAC: Easily reaching through thick layers of insulation or deep into breaker boxes, ductwork channels, and appliance housings.

• Automotive Maintenance: Navigating past hoses and wiring harnesses to reach deep-seated dashboard screws, interior trim panels, and headlight housing fasteners.

6. Operation and Safety Guidelines

• Beware of Lateral Bending: An extended 100mm bit is incredibly strong against rotational twisting (torque), but vulnerable to sideways bending. You must keep the impact driver perfectly straight and aligned with the screw. Do not use the long bit as a pry bar, or it will snap.

• Maximize Magnetic Life: Magnetism can fade if exposed to extreme heat or violent, repetitive dropping on concrete. Store your bits in their dedicated case away from extreme temperatures to preserve the magnetic holding power.

• Direct Chuck Insertion: Because this bit is 100mm long, you do not need a separate magnetic bit holder. Insert the 1/4" hex shank directly into the quick-release collet of your impact driver to minimize wobble (runout).

7. FAQ: Expert Technical Support

Q: Should I buy the 50mm (2-inch) or this 100mm (4-inch) PH2 set?

A: It depends on the application. Buy the 50mm set for high-volume, open-air driving (like hanging flat drywall) where you want the bit as close to the tool as possible for leverage. Buy this 100mm set for precision work, cabinetry, and reaching into tight spaces where the drill chuck gets in the way.

Q: Will the 100mm length cause the bit to wobble more than a short bit?

A: A longer bit inherently has slightly more "runout" (wobble) than a short bit simply due to physics. However, because these are CNC-milled from perfectly straight S2 steel, the wobble is minimal. Inserting the bit directly into the impact driver (without an intermediate adapter) provides the straightest drive.

Q: Can I use this long bit in a regular hand-held multi-bit screwdriver?

A: Yes. The 1/4" hex base is the universal standard. It will lock perfectly into any ratcheting hand driver that accepts 1/4" insert bits, essentially giving you a 4-inch screwdriver extension for manual, delicate tightening.
