| Brand Name: | XRTOOLS |
| Model Number: | T27 |
| MOQ: | 1000pcs |
| Price: | $0.1-1.5/pcs |
| Delivery Time: | 25-30days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
The Problem: The T27 Torx fastener is the hidden trap of the mechanical and automotive world. To the naked eye, a T27 recess looks almost identical to the highly common T25. When a technician accidentally grabs a T25 bit for a T27 screw, it "sort of" fits. However, the moment a high-voltage impact driver or ratchet applies torque, the undersized bit violently spins inside the recess, instantly destroying the expensive machine screw.
The Result: Sheared fasteners stuck in engine blocks, ruined chainsaw casings, and massive amounts of wasted labor trying to extract stripped specialty bolts.
Lack of Identification: Standard black-oxide bits all look the same in a dark, greasy tool bag. Technicians rely on guesswork rather than taking the time to read the microscopic laser etching on the steel.
Sloppy Forging: Cheap bits have rounded, poorly forged star points that fail to grip the steep, straight vertical walls of a true Torx recess, resulting in immediate cam-out.

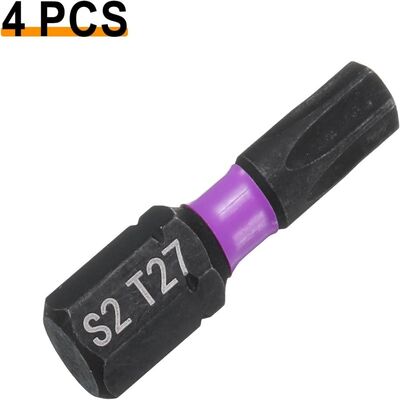

Purple "Error-Proof" Identification Band: We eliminated the guesswork. This T27 bit features a highly visible, permanent purple polymer band around the neck. On a busy, fast-paced job site, your technicians can instantly visually verify they have grabbed the correct T27 bit, completely preventing accidental T25 cross-contamination and stripped screws.
Precision CNC "True-Fit" Milling: Unlike generic stamped bits, this T27 profile is CNC-machined to exact dimensional tolerances. The 6-point star geometry engages flush against the vertical walls of the screw head, distributing rotational torque evenly and preventing the bit from camming out under heavy loads.
High-Yield S2 Industrial Alloy: Torx fasteners are designed to handle significantly more torque than Phillips screws. To match this, the bit is forged from premium S2 shock-resisting tool steel, ensuring the 6-point lobes will not twist, shear, or snap when breaking loose seized automotive bolts.
| Technical Pillar | Imperial Specification | Metric Specification | Industrial Benefit |
| Drive Type | Torx T27 (Star) | Torx T27 (Star) | The standard for heavy machinery and European autos. |
| Overall Length | 1.0" | 25mm | Low-profile insert design for tight-clearance driving. |
| Material | Premium S2 Tool Steel | Premium S2 Tool Steel | High-yield strength prevents the star points from twisting. |
| Identification | Purple Polymer Band | Purple Polymer Band | Instant visual verification to prevent stripping screws. |
| Shank Size | 1/4" Hex Insert | 6.35mm Hex Insert | Drops seamlessly into magnetic bit holders. |
| Manufacturing | CNC Milled Points | CNC Milled Points | Exact fitment prevents slipping under extreme torque. |
Small Engine & Chainsaw Repair: The absolute mandatory bit for servicing commercial chainsaws, leaf blowers, and 2-stroke landscaping equipment (where T27 is the dominant fastener).
Automotive Maintenance: Removing and installing specialized interior trim pieces, seat brackets, and engine covers on European and domestic vehicles.
Motorcycle Assembly: Essential for servicing brake rotors, fairings, and engine casing bolts that utilize high-torque Torx profiles.
Requires a Magnetic Bit Holder: Because this is a 25mm (1-inch) "insert bit," it does not have the locking groove required to snap directly into an impact driver's quick-change chuck. It must be used in conjunction with a 1/4" magnetic bit holder or a hand-held ratcheting screwdriver.
Verify the Fit: Before pulling the trigger, insert the T27 bit into the screw head and gently wiggle it. It should feel completely locked in with zero "slop." If it rattles loosely, you are likely dealing with a T30 screw.
Clear Debris: Automotive Torx screws frequently fill with grease, dirt, or paint. If the screw head is clogged, the bit cannot seat to its full depth. Use an awl or a blast of compressed air to clear the recess before driving, or the bit will slip and strip the top edges of the star.
Q: I have a T25 bit, can I just use that on a T27 screw in a pinch?
A: Absolutely not. A T25 bit will physically slide into a T27 hole, but it will only contact the very corners of the star. As soon as you apply pressure, it will act like a drill bit and hollow out the center of the screw, ruining it permanently. You must use the exact matching size.
Q: What is the purpose of the purple ring? Is it just for looks?
A: The purple ring is a critical job-site identification tool. T20, T25, T27, and T30 bits look nearly identical from a distance. The color-coding ensures that when a mechanic reaches into their tool pouch, they grab the exact size they need at a glance, increasing efficiency and preventing errors.
Q: Can this T27 bit be used on "Security Torx" screws (the ones with a pin in the middle)?
A: No. This is a standard, solid T27 bit. If your fastener has a raised metal pin in the center of the star recess, you will need a specialized "Tamper-Proof" or "Security Torx" bit, which features a drilled hole in the center of the bit face.
