| Brand Name: | XRTOOLS |
| Model Number: | PZ2 |
| MOQ: | 1000pcs |
| Price: | $0.1-1.5/pcs |
| Delivery Time: | 25-30days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
The Problem: When assembling high-end European cabinetry, IKEA flat-packs, or architectural millwork, technicians face two massive hurdles. First, these systems strictly use Pozidriv (PZ) screws; using a standard Phillips (PH) bit instantly strips the proprietary screw. Second, the fasteners are located at wildly different depths. A standard 50mm bit cannot reach a screw hidden behind a deep drawer glide. If the technician forces it, the bulky spinning drill chuck grinds against the expensive melamine or wood veneer, permanently ruining the finish.
The Result: Destroyed proprietary fasteners, gouged luxury cabinetry, and stalled installations as workers hunt for specialized extension holders that are too thick to fit into narrow gaps.
The PZ Requirement: Pozidriv screws have straight, parallel flanks designed specifically not to cam-out (slip). They require a perfectly matched, deeply seated bit to transfer high torque.
The Extension Bottleneck: Standard magnetic bit extensions are bulky. When trying to reach a deep, narrow pocket hole or bypass a cabinet hinge, the thick collar of the bit holder gets wedged, physically preventing the bit from reaching the screw.

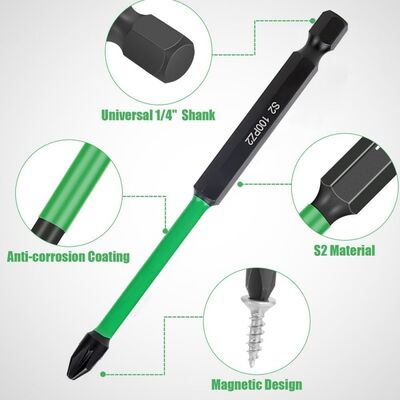

Dedicated PZ2 "Zero Cam-Out" Tips: All three bits in this matrix feature precision CNC-milled PZ2 tips (complete with the identifying secondary ribs). They interlock flawlessly with European cabinetry hardware, allowing for massive torque transfer without the downward pressure required by Phillips bits.
The Graduated Length Matrix: This set eliminates the need for bulky bit holders by providing the exact stand-off distance required for any specific assembly stage:
50mm (2-Inch) - The Surface Master: Optimized for pure power and control. With zero "runout" (wobble), this is the workhorse for driving structural frame screws, surface-level hinges, and flat-pack cams where maximum torque transfer is needed.
100mm (4-Inch) - The Hinge Clearer: The perfect mid-reach tool. It acts as an integrated, slim-profile extension, allowing you to reach past bulky European cup hinges, drawer glides, and into medium-depth recesses while keeping the drill chuck safely away from the wood face.
150mm (6-Inch) - The Deep-Hole Sniper: The ultimate accessibility tool. This ultra-extended shaft reaches straight through 4x4 framing blocks, deep into narrow blind holes, and into the absolute back corners of cabinet carcasses where your hand and drill body cannot physically fit.
Single-Piece S2 Steel Forging: Because they are forged as single, continuous pieces of premium S2 shock-resisting tool steel, there are no weak joints or bulky collars. The slim 1/4" hex profile travels cleanly down the entire length of the extended bits.
| Technical Pillar | Specification | Industrial Benefit |
| Drive Type | Pozidriv #2 (PZ2) | Flawless geometric fit for all European and cabinetry hardware. |
| Lengths Included | 50mm, 100mm, 150mm | Graduated matrix for surface, mid-reach, and deep-hole clearance. |
| Material | Premium S2 Tool Steel | Absorbs rotational torque across the extended shafts without snapping. |
| Tool Geometry | Single-Ended Power Bits | Slim, uniform profile fits into narrow channels better than bit holders. |
| Shank Size | 1/4" Hex | Locks securely into impact driver collets and 3-jaw drill chucks. |
| Concentricity | Laser-True Alignment | Eliminates tip-wobble, even on the ultra-extended 150mm bit. |
Custom Cabinetry & Millwork: The definitive system for installing blum hinges, undermount drawer slides, and cabinet connectors without scratching the cabinet interior.
Flat-Pack Furniture Assembly: Rapid, slip-free assembly of IKEA and imported modular furniture using the exact Pozidriv geometry the manufacturers demand.
Ski Binding & Sports Equipment: The mandatory PZ3/PZ2 profile required for mounting and adjusting alpine ski bindings and European sports hardware.
Identify the PZ Screw: Never guess. Look at the head of the screw. If it has a standard cross plus four faint lines (tick marks) pointing to the corners, it is a Pozidriv screw. You MUST use these PZ2 bits.
Lateral Force Warning on the 150mm: The 150mm (6-inch) bit is an instrument of deep reach. Because of its extreme length, applying sideways (lateral) force while driving will permanently bend the steel shaft. Keep your drill perfectly aligned with the screw axis.
Direct Chucking is Mandatory: Insert these bits directly into the quick-change collet of your impact driver. Do not put the 100mm or 150mm bits into a magnetic bit holder, as this will induce severe, uncontrollable wobbling.
Q: Can I use these PZ2 bits on standard Phillips drywall screws if I'm in a hurry?
A: No. A PZ bit has straight flanks, while a PH screw has angled walls. The PZ bit will not seat fully into a Phillips screw. It will only grip the very top edge, instantly rounding off the screw head and severely damaging the tip of your bit. Always match PZ to PZ.
Q: Why do I need a 150mm bit? Can't I just use two extensions clicked together?
A: Stacking magnetic bit extensions creates a massive amount of "slop" and wobble. Furthermore, the connection points are thick and will get stuck in deep holes. A solid, single-piece 150mm bit spins dead-straight and has a perfectly slim profile from base to tip.
Q: Will the 150mm bit snap under high torque?
A: No. It is forged from S2 shock-resisting alloy. Over 150mm, the steel actually acts like a massive torsion spring, twisting slightly to absorb the impact hammer strikes, making it incredibly resilient against rotational snapping.
