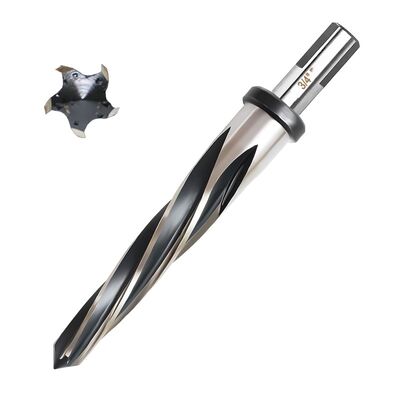

Professional 3/4-Inch Construction Reamer | Intermittent Cut Shock-Resisting Reamer

1. Problem: "Gap-Binding" and Instant Edge Shattering in Stacked Plates

• The Problem: When manufacturing heavy trailer frames or securing bridge gusset plates, contractors must drive 3/4-inch structural bolts through 3 to 5 overlapping layers of steel. Because of manufacturing tolerances, these holes are not only misaligned, but the layers often contain microscopic "air gaps" or thick layers of mill scale between them. When a standard reamer breaks through the first plate and hits the empty gap before the second plate, the cutting resistance suddenly drops and then violently spikes. This "intermittent cutting shock" generates catastrophic torsional chatter, causing the brittle edges of standard reamers to shatter like glass.

• The Result: Expensive tooling instantly destroyed, broken steel shards jammed deep inside the hole, severe project delays, and the potential scrapping of high-value structural steel plates.

2. Cause: Insufficient Core Rigidity and Secondary Chip Scraping

• Weak Web Thickness: Most general-purpose reamers compress the solid steel core (web thickness) in the center of the tool to make the flutes deeper. When subjected to the lateral shock of multi-layer cutting, this thin core bends microscopically, causing metal fatigue and sudden snapping.

• Secondary Scraping: As metal chips pass through the gaps between overlapping plates, a slow-clearing reamer will allow these broken chips to fall into the gap. This creates a secondary grinding effect that jams the tool solid.

3. Solution: Core-Biased Architecture and Progressive 5-Flute Shear

• Core-Biased Anti-Twist Architecture: This 3/4" reamer is metallurgically and geometrically optimized for multi-layer stacks. We increased the solid steel core (web thickness) at the center of the tool. Utilizing the high yield strength of premium 6542 M2 High-Speed Steel, this reinforced backbone microscopically absorbs and disperses the shock of sudden torque spikes when crossing plate gaps, virtually eliminating torsional tearing.

• CNC 5-Flute Progressive Shear: Engineered with a fully automated, 5-axis CNC-ground spiral flute design. The asymmetrical 5-flute layout breaks up harmonic resonance, allowing the cutting edges to "peel" the misaligned plates progressively rather than smashing into them. The high-volume gullets eject shattered chips and mill scale upward at extreme velocity, ensuring debris never gets trapped between the steel layers.

• 1/2" Tri-Flat Reduced Shank & Safety Stop: The massive 3/4" cutting head is driven by a precisely reduced 1/2-inch shank, universally compatible with standard heavy-duty hand drills and magnetic drill presses. The shank features three machined flats (Tri-Flat) that physically lock against the chuck jaws, guaranteeing zero slippage. An integrated steel Safety Stop collar provides a physical barrier, preventing the tool from violently plunging forward when it finally breaks through the last steel plate.

4. Technical Specifications

5. Professional Industry Applications

• Commercial Truck & Trailer Manufacturing: Excels at aligning overlapping holes in chassis webs, fifth-wheel reinforcement plates, and suspension bracket stacks.

• Specialty Bridge & Wind Turbine Erection: Used on-site to rapidly align and repair main truss gusset plates and multi-layer friction surfaces for high-strength bolting.

• Heavy Construction Machinery: Assembling ultra-thick, multi-layer high-tensile carbon steel plates on excavator booms, crane chassis, and heavy mining equipment.

6. Operation and Safety Guidelines

• Speed Control for Stacked Plates: When penetrating multi-layer steel, lock your drill into a low-speed, high-torque gear (ideally 250-350 RPM). When you feel the reamer tip break through one layer and enter a gap, slightly reduce your downward pushing pressure. Allow the tapered tip to naturally bite into the next layer rather than forcing it brutally.

• Interlayer Fluid Penetration: Because heat cannot easily escape from the middle of a stacked steel sandwich, you must fill the spiral flutes with high-viscosity tapping oil or deep-hole cutting fluid before starting. Reapply fluid intermittently to ensure it travels down the flutes and penetrates the gaps between the plates.

• Mandatory Posture Requirements: When operating a 3/4" reamer by hand, you must install and firmly grip the drill's auxiliary side handle. If the tool binds in a gap, the rotational kickback is massive. Bracing the drill with your body weight or using a two-man team is essential for preventing wrist injuries.

7. FAQ: Expert Technical Support

Q: How does this reamer hold up against old steel plates covered in hard rust and dirt inside the gaps?

A: This is exactly where the 6542 M2 steel and 5-flute design excel. Because the cutting load is distributed across five closely spaced edges instead of three, the impact force on each individual tooth is significantly lower. Hitting hard mill scale or rust will cause normal microscopic wear, but it will not instantly shatter the entire flute like it would on a standard thin-core 3-flute reamer.

Q: Why is the overall length of the 3/4" reamer (7.12") slightly longer than the massive 1" reamer (6.92")?

A: The 1-inch reamer handles so much lateral torque that it requires a shorter, "stout" profile to prevent the tool from bending. The 3/4-inch size, however, is the most common bolt diameter used in thick, multi-layer plate assemblies. The slightly extended 7.12" length ensures it has the physical reach required to penetrate deep stacks of overlapping steel in a single pass.

Q: Can I mount this in a pneumatic impact wrench to push it through faster?

A: Absolutely not. Bridge reamers are continuous-cutting tools that rely on the smooth, high-torque rotation of a standard power drill chuck or magnetic drill press. An impact wrench uses high-frequency forward hammering (impacts) which will instantly shatter the brittle HSS cutting edges of the reamer.
