| Brand Name: | XRTOOLS |
| Model Number: | 1/8"-5/16" |
| MOQ: | 200pcs |
| Price: | $1.35-$45.55/PCS |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: Global manufacturing often mixes standards. A machinist operating a metric CNC mill in Europe or Asia is frequently tasked with machining parts that require standard imperial (fractional) dowel pins—like a 1/4" or 5/16" steel pin. If the machinist buys a standard 1/4" reamer, the shank is also 1/4" (6.35mm). Standard metric ER collets do not securely grip a 6.35mm shank without uneven compression.
The Result: Forcing an imperial shank into a metric collet creates microscopic "runout" (tool wobble). At high RPMs, this wobble causes the reamer to cut an oversized, oval-shaped hole, ruining the strict press-fit tolerance required for the dowel pin and scrapping the workpiece.
The "Straight-Through" Flaw: Most tool manufacturers grind chucking reamers from a single piece of cylindrical stock, meaning a 1/4" cutter inherently has a 1/4" shank. They fail to account for the cross-platform reality of modern CNC spindle collets.
Chuck Limitations: While a three-jaw drill chuck can grab any size, precision CNC machining relies on ER collets (which are size-specific) to achieve the absolute concentricity required for H7-equivalent hole finishing.

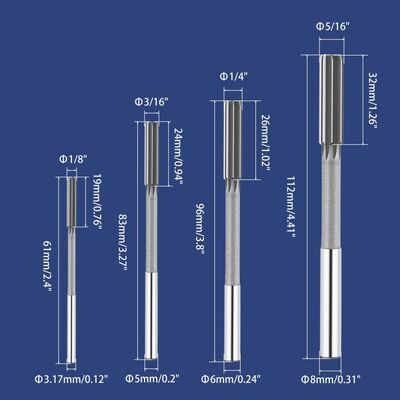

Metric Shank / Imperial Cutter Hybrid: This 4-piece set solves the cross-platform dilemma. We engineered strict imperial cutting heads (1/8", 3/16", 1/4", and 5/16") and fused them to perfectly round, whole-number metric shanks (3.17mm, 5.0mm, 6.0mm, and 8.0mm).
Zero-Runout ER Collet Chucking: Because the shanks are stepped to standard metric dimensions (5mm, 6mm, 8mm), they drop flawlessly into standard metric ER11, ER16, or ER20 collets. This provides 100% surface contact, completely eliminating runout and guaranteeing the reamer spins dead-true on the spindle axis.
Straight-Flute Machine Dynamics: Designed specifically as "Chucking Reamers," the straight-flute geometry prevents the tool from aggressively feeding itself into the workpiece. This provides the CNC operator or drill press user with absolute control over the feed rate, ensuring a mirror-smooth internal cylinder wall.
Premium High-Speed Steel (HSS): Forged from industrial-grade HSS, the cutting margins maintain their razor-sharp geometry even when running continuous production cycles in cast iron, aluminum, and mild steel.
