| Brand Name: | XRTOOLS |
| Model Number: | 22mm |
| MOQ: | 500PCS |
| Price: | $0.8-12/PCS |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
The Problem: In general maintenance and light fabrication, tools are often subjected to inconsistent feed rates and hand-held instability. High-hardness alloys (like M42) can be brittle; when subjected to sudden vibration or "bit-snapping," the teeth can chip or shatter, rendering the expensive tool useless.
The Result: Frequent tool failure during routine tasks, leading to increased project overhead and frustration when working with common materials like thin-walled mild steel, copper, or PVC.
Metallurgical Brittleness: Extremely hard steel grades are designed for steady, high-heat machine environments. In handheld applications, the vibration creates "micro-shocks" that a brittle tooth cannot absorb.
Lack of Flexural Strength: Without a balanced tungsten-molybdenum ratio, the cutting edge cannot deflect slightly under load, causing it to snap under the erratic torque of a standard battery-powered drill.

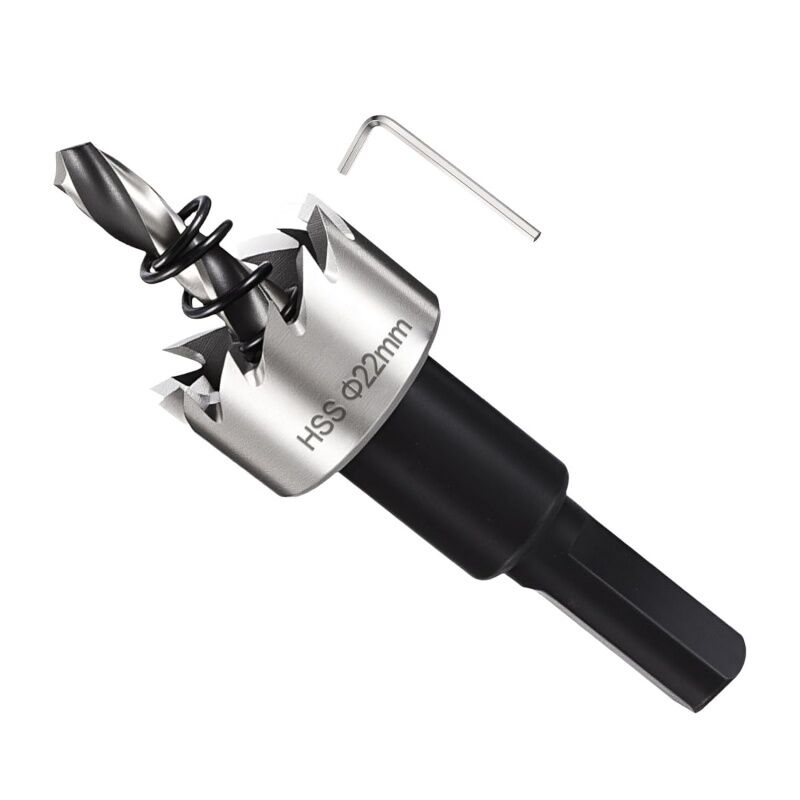

Optimized 4341 Metallurgy: Our 22mm Industrial Series is forged from 4341 High-Speed Steel. With a specialized W4Mo3Cr4V composition, this grade offers superior flexural strength. It maintains a formidable 62-63 HRC hardness while remaining tough enough to absorb the mechanical shocks of handheld boring.
Integrated Centric Stability: The one-piece construction eliminates the "wobble" associated with separate arbors. By ensuring the 22mm cup rotates on a perfectly true axis, we reduce the lateral stress on the teeth, significantly extending the tool's life in non-ferrous and mild steel applications.
135° Self-Centering Pilot: The center drill features a split-point geometry that bites into the material instantly. This prevents the "skating" that causes surface damage and ensures the 22mm perimeter teeth engage the material evenly.
| Technical Pillar | Specification Detail | Industrial Benefit |
| Material Grade | HSS 4341 (W4Mo3Cr4V) | High Toughness: Resists chipping in handheld use. |
| Boring Accuracy | TIR (Runout) ≤ 0.12mm | Precision Fit: Perfect for M22 switches and PG16 glands. |
| Surface Treatment | Bright Finish (Polished) | Clean Cut: Reduces friction in non-ferrous metals. |
| Shank Type | Integrated Hex Shank | Zero-Slip: Secure fit in all standard 10mm/13mm chucks. |
| Safety Feature | Safety Stopper Flange | Protection: Prevents over-penetration into enclosures. |
| Slug Ejection | High-Elasticity Spring | Speed: Effortless removal of metal cores. |
Electrical Component Installation: The industry-standard size for M22 industrial push-buttons, pilot lights, and PG16 cable glands in mild steel and plastic control boxes.
HVAC & Plumbing Maintenance: Ideal for boring entry points in aluminum ducting, copper piping, and light-gauge galvanized steel for sensor mounting.
General Metal Fabrication: Reliable, cost-effective boring in aluminum extrusions, brass plates, and mild steel profiles (≤ 4mm).
Material Versatility: Optimized for Mild Steel (≤ 4mm), Aluminum, Copper, Brass, and high-impact Plastics. (For 304 Stainless Steel, we recommend upgrading to our M2 or M35 series).
Speed Management: For 22mm in mild steel, maintain 400 - 550 RPM. For aluminum or brass, the tool is stable up to 900 RPM due to the high toughness of the 4341 core.
Maintenance Logic: Because 4341 is a tough grade, the teeth can be easily touched up with a fine diamond file to maintain a razor-sharp edge over long-term use.
Q: Why choose 4341 over M2 for my general maintenance kit?
A: 4341 is less brittle than M2. If you are primarily using a handheld drill in a variety of non-stainless materials, the 4341 grade will actually survive the "bumps and drops" of the job site better than harder, more brittle grades.
Q: Is the 22mm size compatible with standard electrical knockouts?
A: Yes. 22mm is the specific diameter required for the vast majority of industrial control components, ensuring a snug fit that maintains the NEMA/IP rating of your enclosure.
Q: How does the ejection spring help with thin sheet metal?
A: In thin metal, the "slug" can often be razor-sharp and difficult to grab. The spring ensures the slug is pushed out immediately, keeping your hands away from the sharp edges and the tool ready for the next cut.
Fully Ground Manufacturing: Unlike milled or stamped saws, our 4341 series is fully ground from solid stock, ensuring perfectly symmetrical teeth and superior concentricity.
Heat Treatment Certification: Every unit is vacuum-hardened to a consistent 62-63 HRC, verified by industrial-grade Rockwell testing.
Industrial Compliance: Manufactured to international engineering standards for industrial MRO and general fabrication.
