60mm HSS Hole Saws 64 HRC - 66 HRC Hss Brad Point Drill Bits

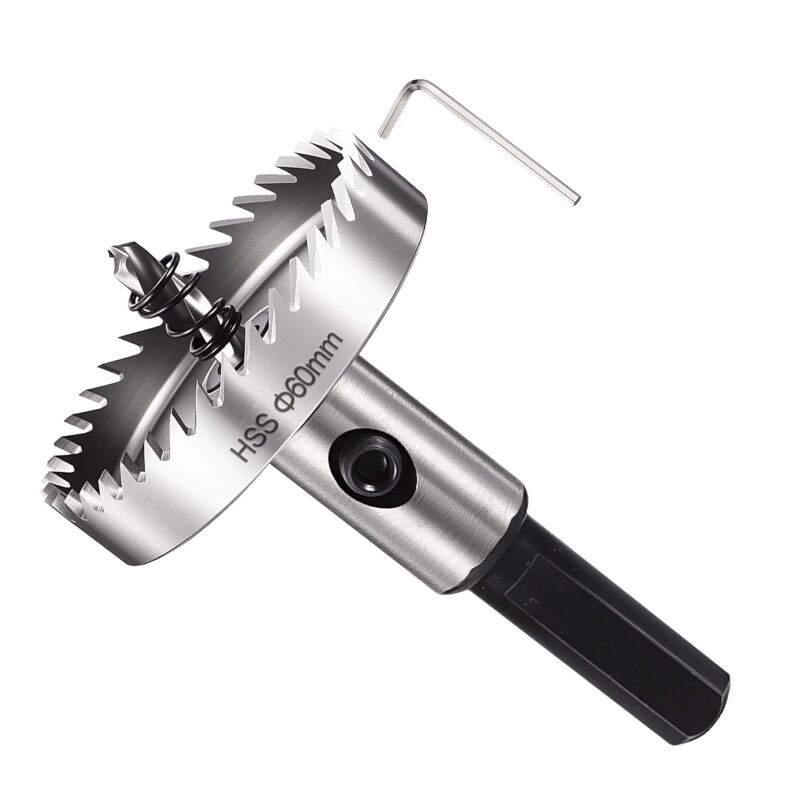

60mm HSS M2 Master Boring Bit | 64-66 HRC Red-Hardness Solution for Heavy-Gauge Industrial Plate

1. Problem: Centrifugal "Chatter" and Out-of-Round Holes

• The Problem: Boring a 60mm hole involves significant mass rotating at high speeds. In standard multi-piece hole saws, the slight "play" between the arbor and the saw body is magnified by centrifugal force. This creates "chatter," which causes the tool to bounce within the cut.

• The Result: This leads to "out-of-round" holes (elliptical rather than circular), premature tooth failure due to uneven impact, and a poor surface finish that compromises the seal of industrial gaskets and fittings.

2. Cause: Mechanical Resonance and Stacking Tolerances

• Stacking Tolerances: Every connection point (Arbor to Drill, Arbor to Saw) introduces a small degree of misalignment. At 60mm, these fractions of a millimeter translate into massive lateral vibrations.

• Structural Fatigue: Large-diameter thin-walled saws often "flex" under high torque. This flexing causes the cutting teeth to engage the material at inconsistent angles, leading to "grabbing" and dangerous kickback.

3. Solution: Digital-Balance Monoblock M2 Engineering

• One-Piece Monoblock Design: Our 60mm Master Series is fully ground from a single solid block of HSS M2 (W6Mo5Cr4V2). By eliminating the arbor connection entirely, we ensure absolute concentricity with a Total Indicator Runout (TIR) ≤ 0.15mm. This provides the "dead-steady" rotation required for machine-perfect circularity.

• M2 Grade Red-Hardness Edge: Forged with high Molybdenum content, the M2 core maintains a 64-66 HRC hardness. This allows the 60mm perimeter teeth to withstand the extreme friction heat generated by the high Surface Feet Per Minute (SFM) associated with this diameter.

• Asymmetric Tooth Pitch: To disrupt harmonic resonance, the teeth are ground with an asymmetric pitch. This breaks the vibration cycles, ensuring a smooth, quiet cut and a machine-polished edge in materials ranging from aluminum to 304 stainless steel.

4. Technical Specifications (Heavy Industrial Standards)

5. Professional Industry Applications

• Industrial Fluid Infrastructure: The precision clearance size for installing high-capacity fluid transport pipes and manifold connectors in industrial processing plants.

• Heavy Electrical Switchgear: The primary tool for creating large entries for high-amperage busbars and cooling fan units in industrial power distribution panels.

• Mechanical Machinery MRO: Reliable boring for installing 60mm bearing housings and secondary intake ports in cast iron and thick-walled aluminum housings.

6. Selection & Operation Guide

• Material Versatility: Optimized for Stainless Steel (≤ 2.5mm), Mild Steel (≤ 5mm), Cast Iron, and Aluminum Plates.

• Speed Management: For 60mm in mild steel, maintain 110 - 140 RPM. For 304 Stainless Steel, reduce to 75 - 90 RPM. Accurate RPM control is the single most important factor for tool life at this diameter.

• Lubrication Logic: Due to the massive surface area of a 60mm cut, the use of a high-viscosity cutting oil or wax is mandatory to facilitate chip flow and prevent thermal expansion from binding the tool.

7. FAQ: Expert Technical Support

• Q: Why is a one-piece 60mm saw better than an arbor-mounted bi-metal saw?

  • A: A one-piece HSS M2 saw is significantly more rigid. It provides much higher concentricity and a faster material removal rate (MRR) because it doesn't "flex" under torque, making it the superior choice for precision industrial fabrication.

• Q: Can this handle the torque of an 18V cordless drill?

  • A: Yes, provided the drill has an auxiliary side handle. The M2 teeth are highly aggressive; the side handle is essential for maintaining control and safety during the breakthrough phase.

• Q: Is the pilot drill replaceable?

  • A: Absolutely. The 135° split-point center drill is secured by a side-mounted grub screw. If the pilot becomes dull after heavy use, it can be swapped out in seconds to ensure the 60mm perimeter continues to align perfectly.

8. Technical Quality & Trust Information

• Vacuum Hardening: Our M2 steel undergoes multi-stage vacuum heat treatment to reach a uniform 64-66 HRC, ensuring no soft spots across the 60mm circumference.

• Balance Verification: Every unit is digitally tested for rotational balance to ensure a smooth, low-vibration cutting experience for the operator.

• Industrial Compliance: Manufactured to international engineering standards for large-diameter boring in industrial maintenance and structural fabrication.
